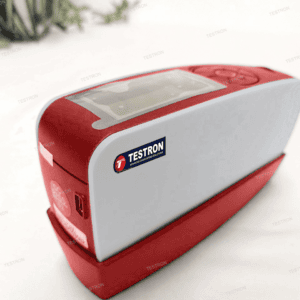

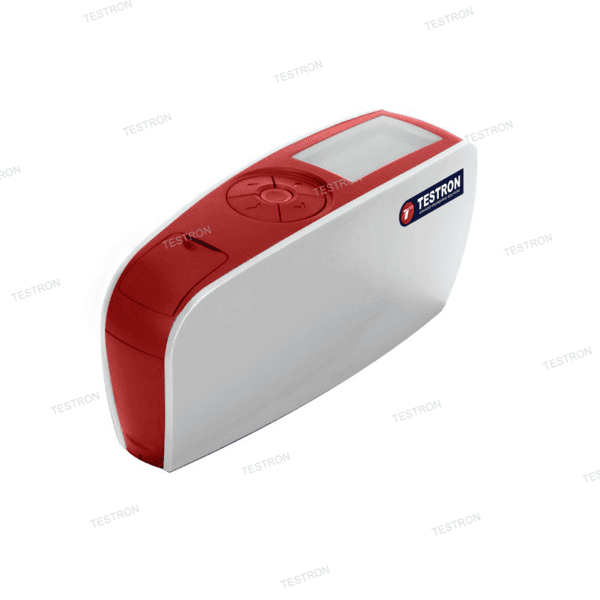

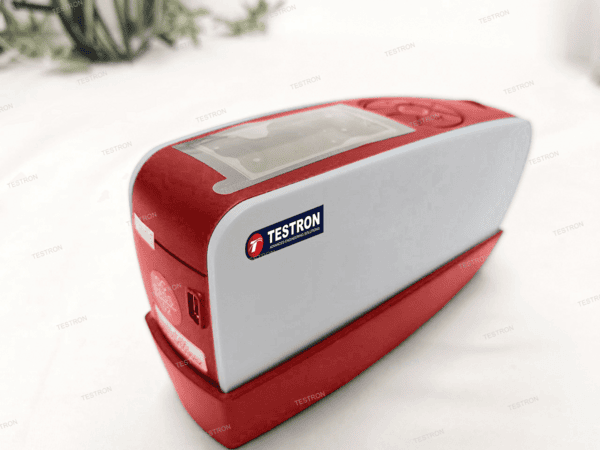

TT-P380 Tri-angle Gloss Meter Features
● The appearance design conforms to physical dynamics, high accuracy, and stable performance easy to operate. (Triangle Gloss Meter)
● Multi-angle one-key measurement: one-key operation can complete three angles’ measurement to meet data demand under different gloss conditions, the incident angle of light measurement conforms to ISO and ASTM standards.
● Professional analysis software for the gloss data analysis and output, easy to transfer data by blue-tooth and mobile memory card. (Triangle Gloss Meter)
● Automatic calibration, internal calculation of max, min, mean standard deviation and coefficient of variation.
● Optional angle mode: measurement angle or angle combination can be selected by the user’s need. (Triangle Gloss Meter)
● Mass storage: under triangle mode, 10000 times or 1000 groups of measurement data can be stored.
● Alarms for low-power and space shortage.(Triangle Gloss Meter TT-P380)

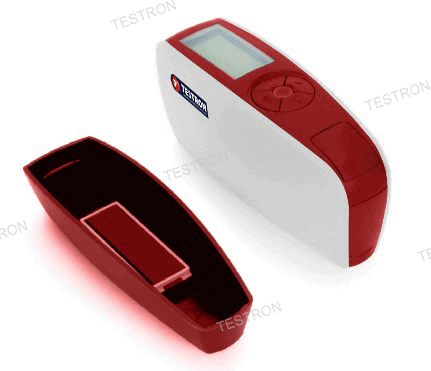

TT-P380 Tri-angle Gloss Meter Standard Delivery
| Standard Delivery | Optional Accessory |
| Main unit | Mobile memory card |
| Software | |
| USB connecting cable | |
| Standard panel | |
| AAA batteries | |
| Power supply | |
| Certificate | |
| Warranty card | |
| Instruction manual |
TT-P380 Tri-angle Gloss Meter Technical Specifications
| Measuring angle | 20° 60° 85° | |
| Standards | ISO2813，ISO7668, ASTM D523，ASTM D2457 | |
| Incidence angle (GU) | Gs(20°):0.0~120Gs(60°):0.0~120Gs(85°):0.0~120 | Gs(20°):120~2000Gs(60°):120~1200Gs(85°):120~160 |
| Measuring optical spot (mm) | Gs(20°)：10×10Gs(60°)：9×15Gs(85°)：5×38 | |
| Resolution (GU) | 0.1 | 1 |
| Repeatability (GU) | 0.5 | 0.50% |
| Indication accuracy (GU) | -1.5~+1.5 | -1.5%~+1.5% |
| Zero value accuracy (GU) | 0.2 | |
| Working temp | 10℃~40℃ | |
| Storage temp | -10℃~70℃ | |
| Humidity | Less than 85%, Non-condensation | |
| Power | Both AAA batteries and power supply | |
| Dimension (mm) | 164x58x88 | |
| Weight (g) | 520 | |
