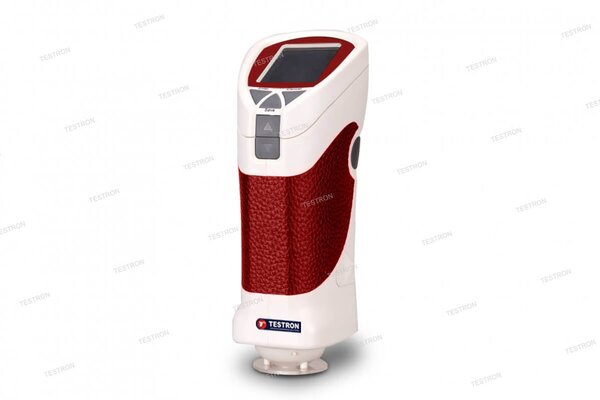

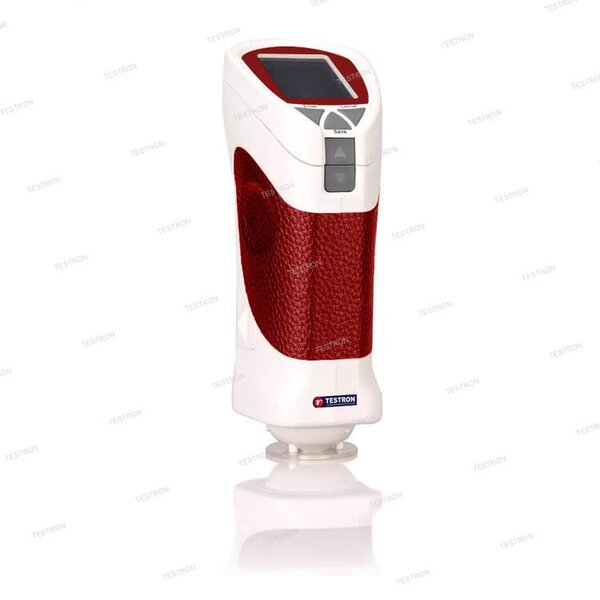

TT-R200 Precise Color Reader Features:
- The high performance-price ratio among similar products
- High accuracy and stable performance
- PC software for data and statistical management
- Suitable for a company’s internal and external color evaluation and data control
- Energy-saving design, USB and Bluetooth(optional) data connection
- Yellowness and whiteness measurement
- Multi-point measurement for averaging
- Large data storage space
- Chinese metrology accreditation
- Display precision 0.01
- Repeatability precision AE’s standard deviation 0.08
- Enhance the measure accuracy through white and black calibration
TT-R200 Precise Color Reader Technical Specification:
| Illumination system | 8/d(8°/diffused illumination),specular component included(SCI) |
| Display modes | Colorimetric values: Lxaxb, LxCxh， △E*ab, XYZ, relative RGB values; Color difference values: △(Lxaxb)， △(LxCxh); Whiteness values: hunter whiteness, Ganz whiteness Yellowness value: YI |
| Measuring caliber | About 8mm |
| Measuring conditions | CIE 10°standard observer; CIE D65 light source |
| Measuring range | L*：1-100 |
| Repeatability | Standard deviation within △E*ab*， 0.08(condition: measure the white calibration board 30 times for average |
| Storage | 100 sets of standard samples; up to 100 under each standard sample |
| Measuring time | About 0.5 seconds |
| Measuring light source | LED |
| Interface languages | Chinese, English |
| Power source | Four AA1.5V alkaline battery or nickel metal hydride batteries; ExclusiveDC5V adapter |
| Port | USB 2.0, printer |
| Dimension (mm) | 77×86×210 |
| Weight (g) | 550 |
