TT-3234 Surface Waviness Tester

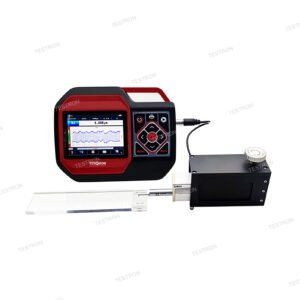

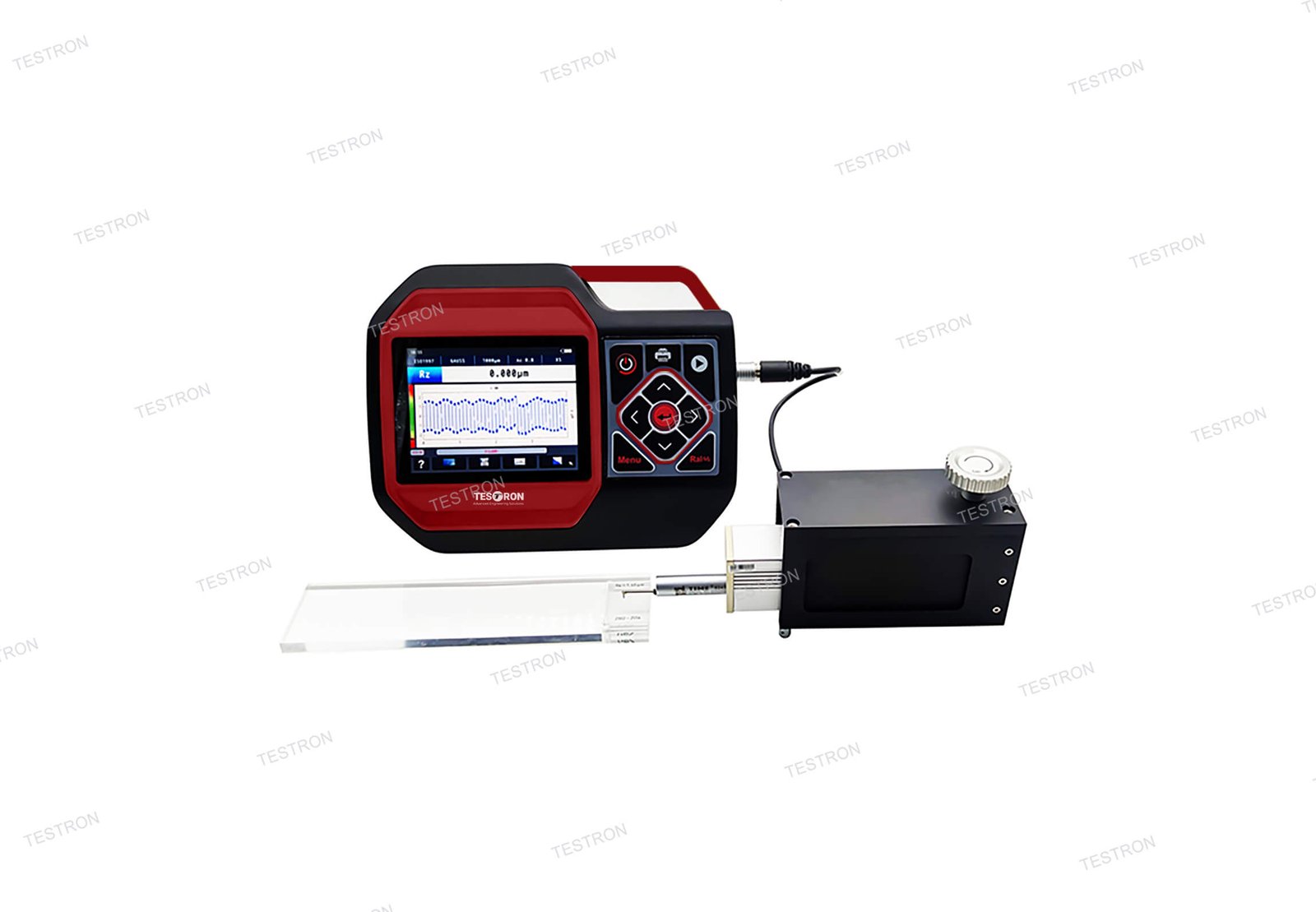

TT-3234 is a portable stylus surface waviness tester, suitable for testing in workshops, laboratories, metrology centers and etc. It can measure roughness, waviness, and primary profile. The test results can be displayed digitally and graphically on the LCD screen, or output to a printer. It can also connect to a computer for data analysis via special software.

Inquiry Now

Categories: Material Testing, Metal Testing, Surface Roughness Tester

Description

Product Details

Using Linux operation system. High calculation accuracy, fast data processing speed, and friendly user interface.
Separated design for easy operation.
Portable design, easy to carry.
It can measure surface roughness, waviness, and primary profile.
It has a wide measuring range of 1000μm and a maximum tracing length of up to 50mm.
5.7inch TFT LCD screen to clearly display the evaluation curves.
With Touch screen to quickly set the measuring conditions on the screen.
Mouse operation is supported.
Store 10,000 groups of measuring conditions and data.
Measurement data can be stored in a U disk.
Measurement with or without the skid.
Print measurement parameters and profile curves.
Equipped with optional advanced analysis software.
Conforming to the roughness standards including ISO4287-1997, JIS 0601: 2001; ANSI; SEP1941-2012.

Specifications

Item	Description
Profile	R, W, P, R-Motif, W-Motif
Measuring parameters	See the Table 1 below
Filter	Gauss, 2RC
Cutoff l	0.08mm, 0.25mm, 0.8mm, 2.5mm, 5mm, 8mm, 10mm
Evaluation length ln	(1-5)l
Measuring range	1000μm（±500μm）
Max. resolution	0.0003μm
Tracing length	50mm
Tolerance	±5%(Skid), ±10%(Skidless)
Repeatability	1.5%(Skid)，3%(Skidless)
Storage	10000 groups of measuring conditions and data
Interface	RS232，USB
Power	Built-in lithium-ion rechargeable batteries / External power adapter
Working temperature	0℃～40℃
Storage temperature	-25℃～60℃
Humidity	<90％
Main unit dimension	260mm×210mm×68mm
Main unit weight	1.5Kg
Driver dimension	195.5mm×60mm×122mm
Driver weight (with portable stand)	1.58Kg
Power adapter	Input：100 V～240VAC，50/60Hz Output：9V，3A

Table 1

Standard	Profile Curves	Parameters
ISO1997	R	Ra，Rq，Rz，Rp，Rv，Rsk, Rku, Rc, RPc ^﹡, RSm, R△q，Rmr^﹡，Rmr(c)^﹡, Rδc^﹡, Rt, Rz1max, Rk，Rpk, Rvk, Mr1, Mr2, A1, A2, Vo
	P	Pa, Pq, Pz, Pp, Pv, Psk, Pku, Pc, PPc^﹡, PSm, P△q, Pmr^﹡, Pmr(c)^﹡, Pδc^﹡, Pt, Pz1max
	W	Wa, Wq, Wz, Wp, Wv, Wsk, Wku, Wc, WPc¹, WSm, W△q, Wmr^﹡, Wmr(c)^﹡, Wδc^﹡, Wt, Wz1max
JIS2001	R	Ra, Rq, Rz, Rp, Rv, Rsk, Rku, Rc, RSm, RzJIS, R△q, Rmr^﹡, Rmr(c)^﹡, Rδc^﹡, Rt
	P	Pa, Pq, Pz, Pp, Pv, Psk, Pku, Pc, PSm, PzJIS, P△q, Pmr^﹡, Pmr(c)^﹡, Pδc^﹡, Pt
	W	Wa, Wq, Wz, Wp, Wv, Wsk, Wku, Wc, WSm, WzJIS, W△q, Wmr^﹡, Wmr(c)^﹡, Wδc^﹡, Wt
ANSI	R	Ra, Rq, Rz, Rp, Rv, Rsk, Rku, RPc^﹡, RSm, R△a, R△q,Htp^﹡, tp^﹡, Rt, Rmax, Rpm
ANSI	W	Wa, Wq, Wz, Wp, Wv, Wsk, Wku, WPc^﹡, WSm, W△a, W△q,Htp^﹡, tp^﹡, Wt, Wmax, Wpm
