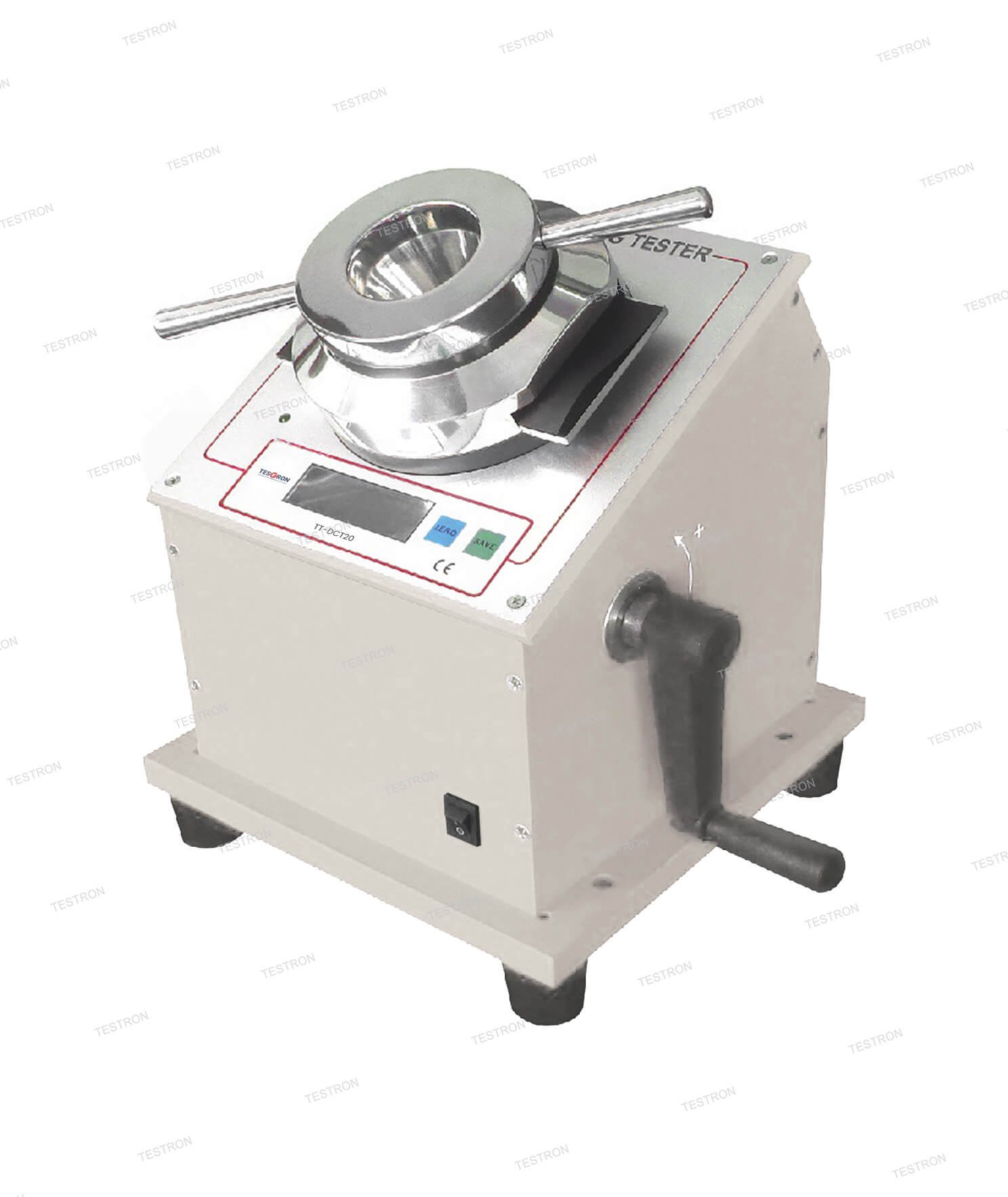

Test Standard of TT-DCT20 Digital Cupping Tester
ISO 1520 BS 3900 Part 4, DIN 53166, DIN 53233 etc.
Application of TT-DCT20 Digital Cupping Tester
It is widely used in the paint and coatings, automotive, metal processing, and appliance manufacturing industries for quality control and product development.
Features of TT-DCT20 Digital Cupping Tester
- Automatic coordinate positioning system: tester can memorize the home position after being zeroed, also track the punch’s
- position automatically. Therefore, the traditional error caused by return or shake can be avoided.
- Highly precise position sensor: the minimum division value of the depression depth can reach 0.01mm.
- Applicable for every kind of substrate, and the maximum pressure can reach 2,500N.
- The coordinate position of the plug can be zeroed manually and can be memorized.
- Come with 10X illuminated magnifier, convenient to observe and judge test result.
- Hand twist operation: labor saving and easy handling.
Technical Specification of TT-DCT20 Digital Cupping Tester
| Model | TT-DCT20 |
| Diameter Punch | 20mm
|
| Maximum dent depth (thickness)
| 12mm
|
| Maximum pressing force
| 2,500N
|
| Dent measurement resolution
| 0.01mm
|
| Counter
| Digital Display, in 0.01mm increments |
| Dimension of test panel | 150mmx70mmx (0.03-1.25) mm smooth not deformed |
| Material | Polished steel panel |
| Net weight | 28kg |
| Dimension (LxWxH) | 290mmx240mmx370mm |
