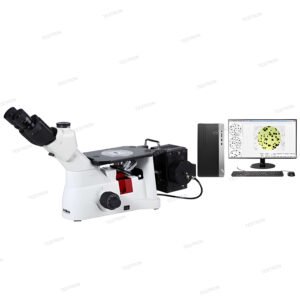

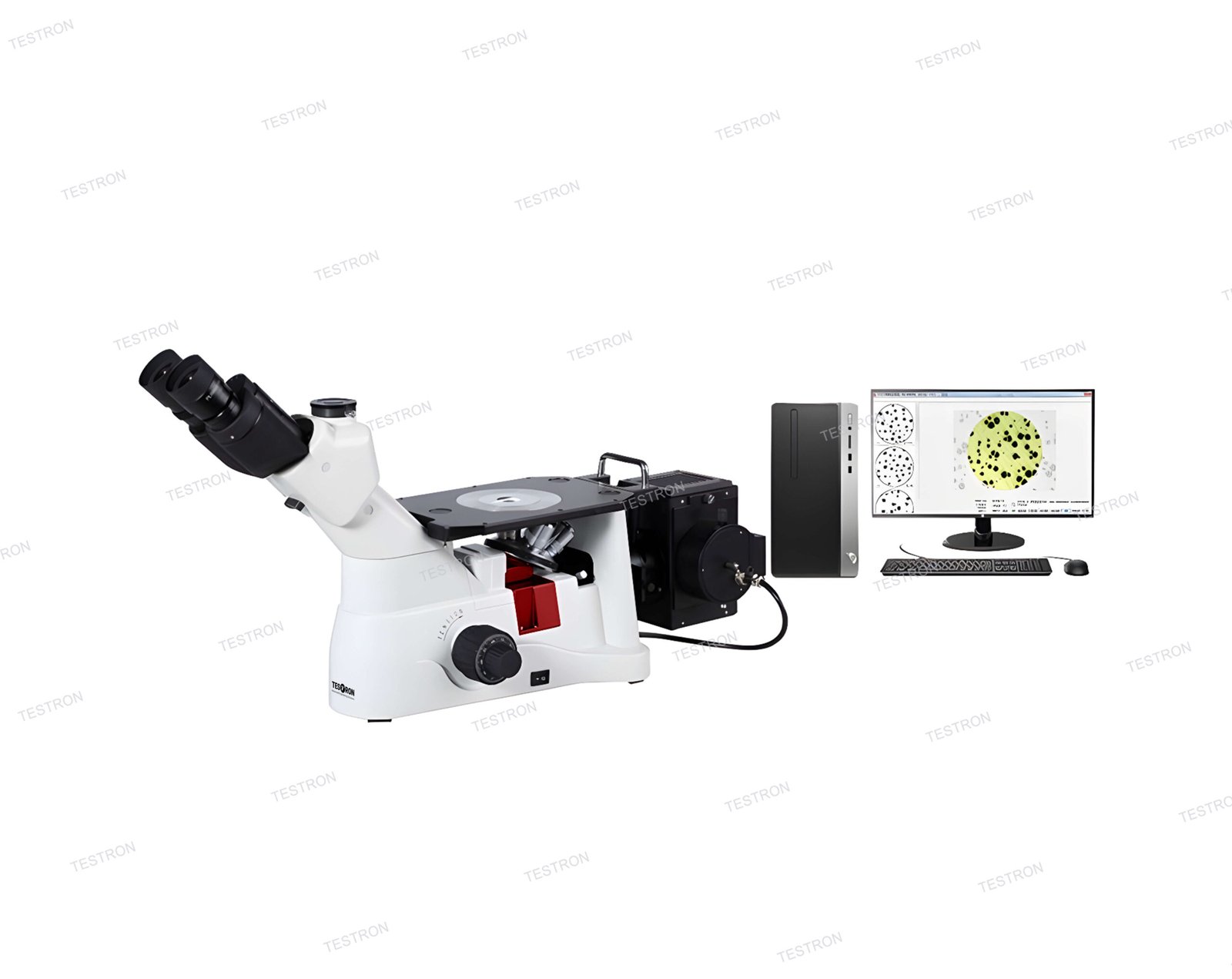

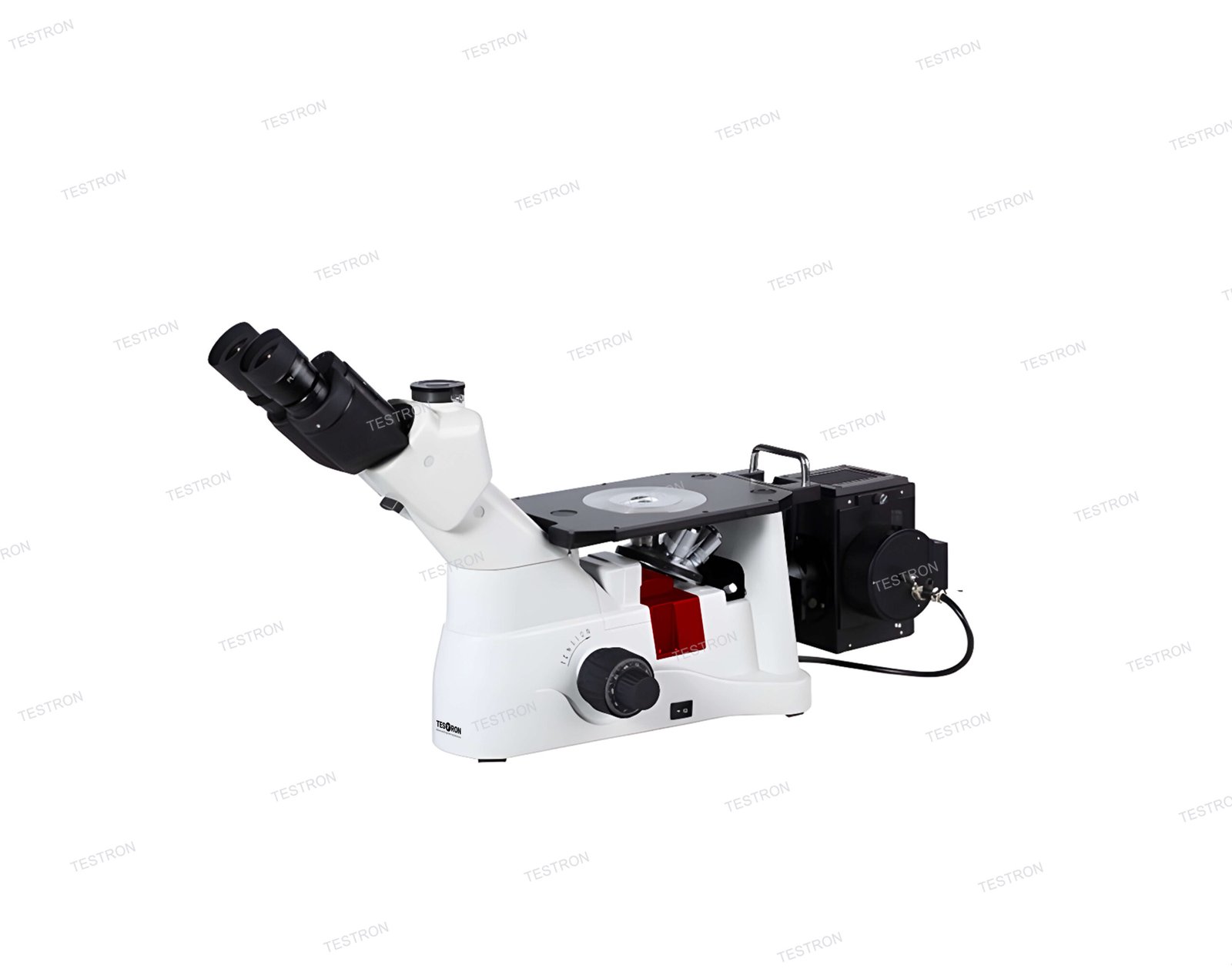

Application of TT-30MW- Metallographic Microscope with Computer
It is the ideal equipment for metallographic analysis of steel, non-ferrous metal materials, castings, coatings, lithofacies analysis, and microscopic analysis of compounds and ceramics in the industrial field.
Features of TT-30MW- Metallographic Microscope with Computer
- Gemel trinocular, adjustable diopter,45°inclined, with a digital camera port to shoot photo or video. Capture and save observation images. Image analysis can be realized on the computer through the metallographic analysis software.
- Low hand position coaxial coarse and fine focusing mechanism with tension control and fast focusing random limit device. Coarse adjustment stroke per rotation: 38mm, fine adjustment accuracy: 0.002mm.
- The coaxial low-hand position adjustment moving ruler and the stage extension board can be installed to expand the application space and meet the needs of customers with different requirements.
Technical Specifications of TT-30MW- Metallographic Microscope with Computer
| Model | TT-30MW |
| Optical system | Limitless color corrected optical system |
| Observation tube | Gemel trinocular, 45°inclined, interpupillary distance adjustment: 54-75mm, diopter adjustment ±5, refract rate: binocular 100%, binocular: trinocular=80%:20% |
| Eyepiece | High eyepoint wide field plan eyepiece PL10X/22mm |
| Objectives | LMPL5X /0.15 WD10.8mm; LMPL10X/0.3 WD10mm; LMPL20X/0.45 WD4mm; LMPL50X/0.55 WD7.8mm |
| Nosepiece | Five-position nosepiece |
| Focusing adjustment | Coaxial coarse and fine focusing mechanism, coarse range of 38mm per rotation, fine adjustment of 0.2 mm per rotation, adjustment accuracy: 0.002mm, with coarse tension adjustment device Fixed stage size: 160X250mm |
| Plate | Metal plate (center hole Φ12 mm); Mechanical moving ruler, moving range: 120(X)*78(Y)mm; Stage extension board |
| Reflective illumination system | Reflection Koehler illuminator, with iris diaphragm and center adjustable filed diaphragm, wide voltage 90-240V, 12V/50W halogen bulb, center adjustable, light intensity continuously adjustable |
| Polarizing kit | Analyzer: 360 °rotating; both the polarizer and the analyzer can move out of the light path |
| Color filters | Green color filter, blue color filter (Φ32mm) |
| Metallographic Analysis Software | FMIA2020 Metallographic analysis software; Sony chip 5 million camera device, 0.5X adapter lens interface, high-precision micrometer |
Optional Accessory of TT-30MW- Metallographic Microscope with Computer
- Eyepiece: PL10X22mm with cross differentiation ruler
- Eyepiece: PL10X22mm, adjustable diopter
- Eyepiece: PL15X/16mm
- Objective: LMPL100X/0.80 WD2.1mm
- Metal plate (center hole Φ25 mm)
- HP computer
