Martindale Abrasion Tester

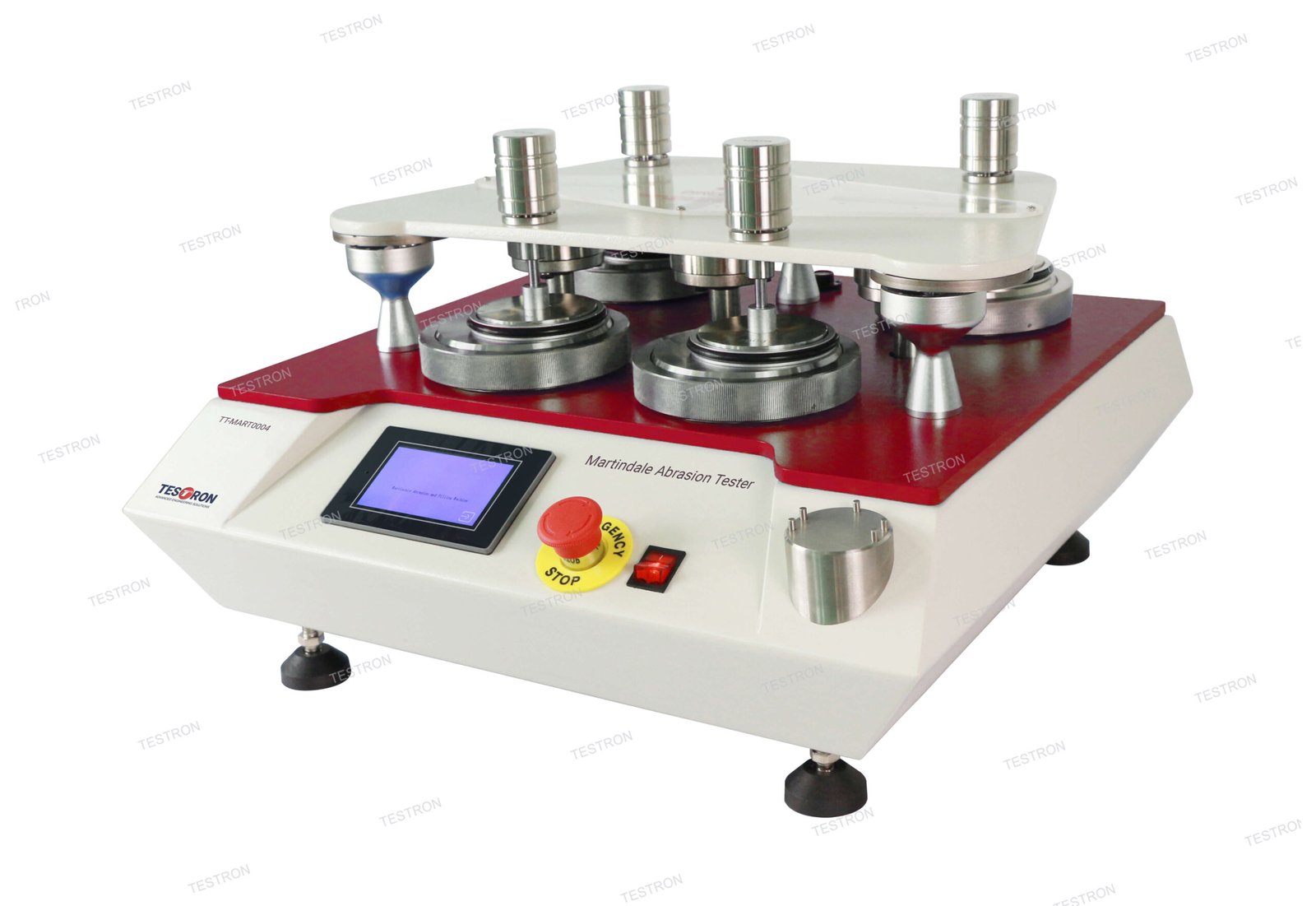

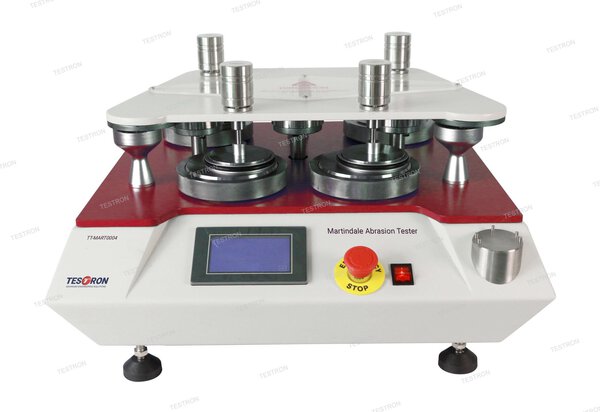

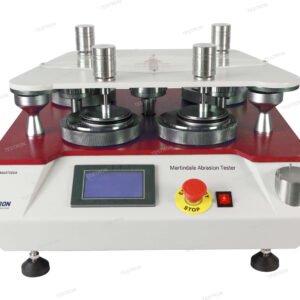

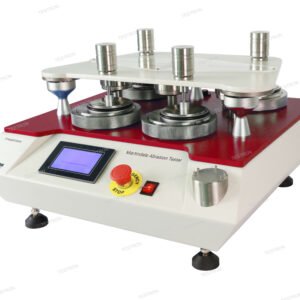

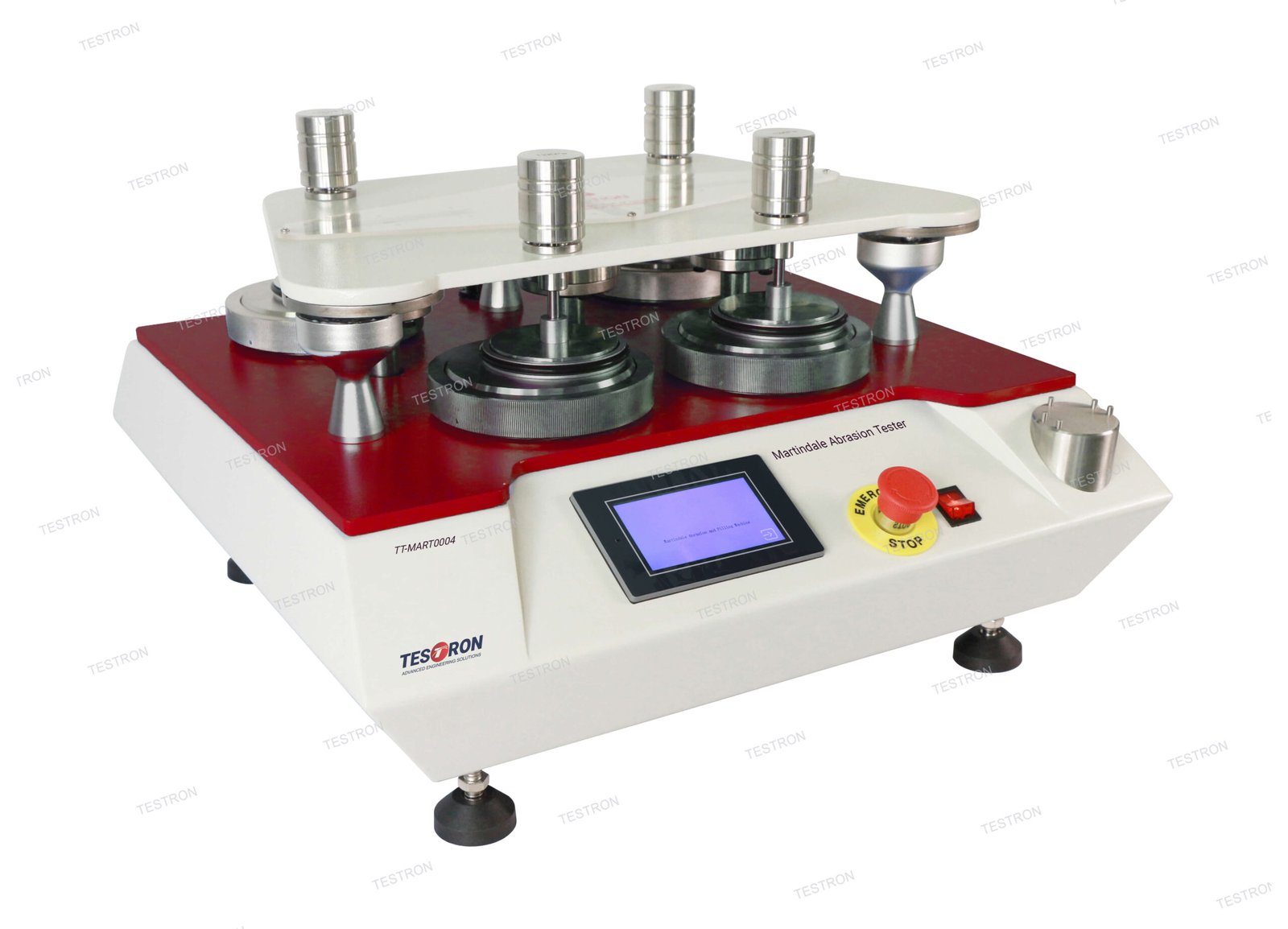

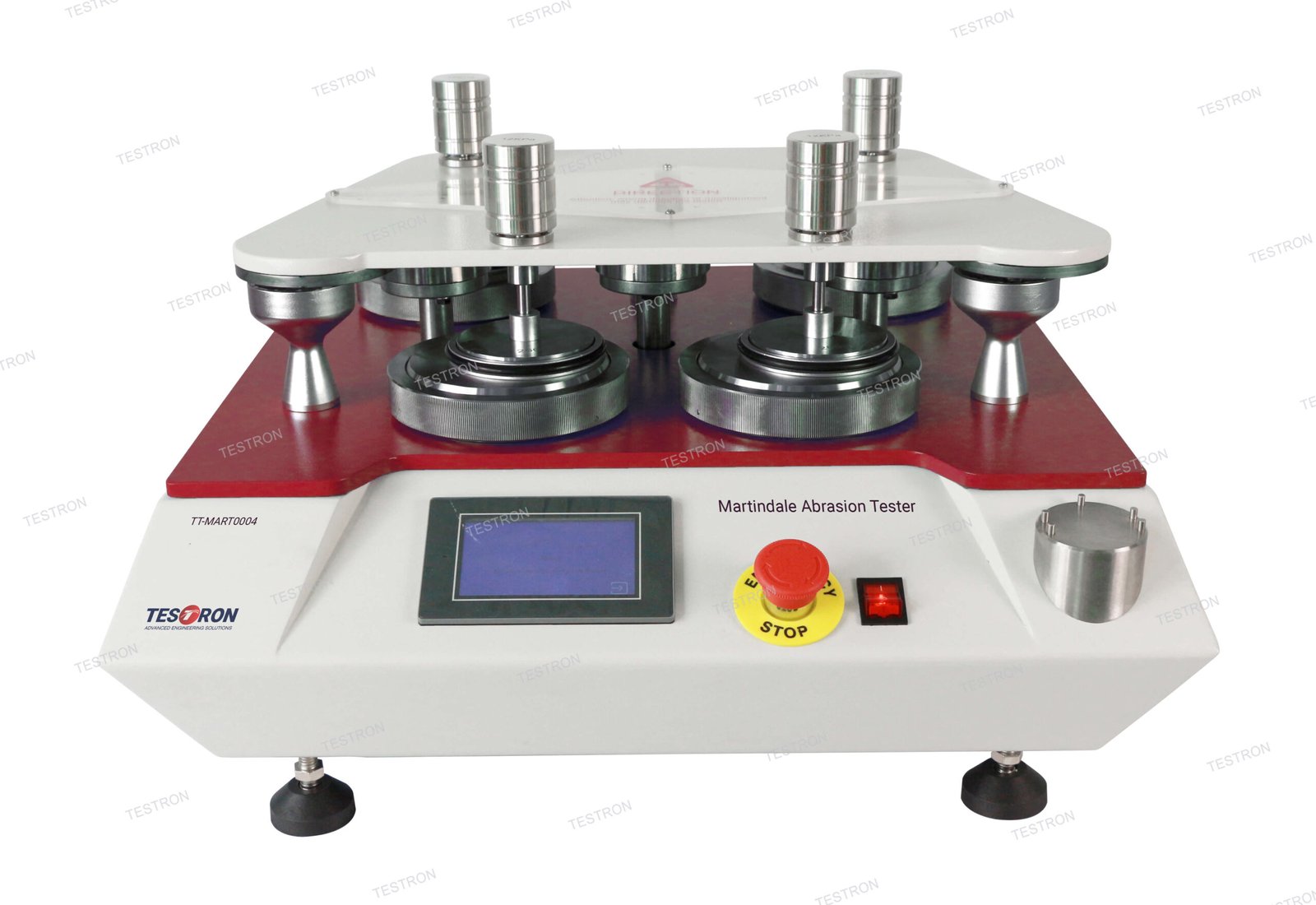

TESTRON TT-MART0004 Martindale Abrasion Tester is designed for multiple abrasion and pilling tests for various textiles. Its touch screen controller has most common functions that makes the equipment easy to us in just one or two touches. The unit is wear-resistant testing machine mainly composed of test sample clamping device, friction head and a wear measurement device.

During test, the sample is clamped on the machine, touching the friction head or wear medium and a certain force and speed will be applied to conduct the wear test. By recording the weight loss and wear volume data during the wear process, the wear resistance of the sample can be evaluated. The machine can be also used to test the dirty condition of light-colored materials. In such tests, a special ink-printed fabric is used instead of the standard. A small amount of standard abrasive cloth is supplied with the machine.

Inquiry Now

Categories: Material Testing, Textile Testing

Description

Test Principle of Martindale Abrasion Tester

Place the test sample in the fixture of the abrasion tester, by giving the test sample a 9kpa prescribed pressure to make it run on the running trajectory of the LISSJOUS chart it carry out cyclic plane motion friction on the standard abrasive cloth, and after a certain number of friction times, evaluate the breakage cycle of the test sample.

Test Standards of Martindale Abrasion Tester

ASTM D4966, ISO 5470-2, GB/T 19089, GB/T 3903.16, GB/T 20991, EN ISO 12947, EN ISO 20344:6.12, BS-3424, BS EN 388:2003, DIN 53863

Application of Martindale Abrasion Tester

It is suitable for various types of fabrics, leather footwear, upholstery, garments, gloves, and other products. It can also be used for abrasion resistance and durability of rubber gloves, plastic and rubber coatings, coated fabrics.

Features of Martindale Abrasion Tester

Different working positions: The unit has available varieties of stations such as 4,6,8,9 station models. A full kit is provided to do abrasion resistance test and pilling for textiles, coated fabrics, leather, socks, soiling and etc.
Precise motion: The unit’s motion is according to 24mm and 60mm Lissajous track.
Ergonomical design: It is specifically designed to adjust test speed with user-friendly operation. Equipped with safety lid cover to protect the test rod satisfying a reliable unit for its users.
Simple display screen: Equipped with LCD & touch screen display to simplify the touch control system with individual station counters, providing easy operations.

Technical Specifications of Martindale Abrasion Tester

Model	TT-MART0004
Working positions	4
Display	LCD touch screen
Abrasion table	≥ ¢ 125mm
Load	595g, 795g
Lissajous figure	60±1mm x 60±1mm
Press load	Mass: (2.5 ± 0.5)kg Diameter: Ø(120 ± 10)mm
Rotary speed	47.5 ± 2.5r/min
Sample exposed area	645 ± 5mm2
Control mode	LCD 0~99,999,999
Pressure plate	SUS 304 stainless steel
Power supply	AC 220V, 3A
Dimension (LxWxH)	60x60x35cm
Weight	67kg

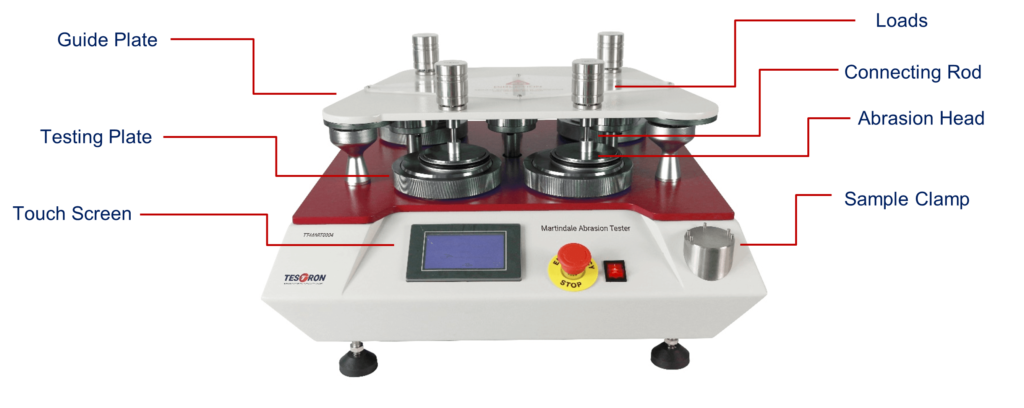

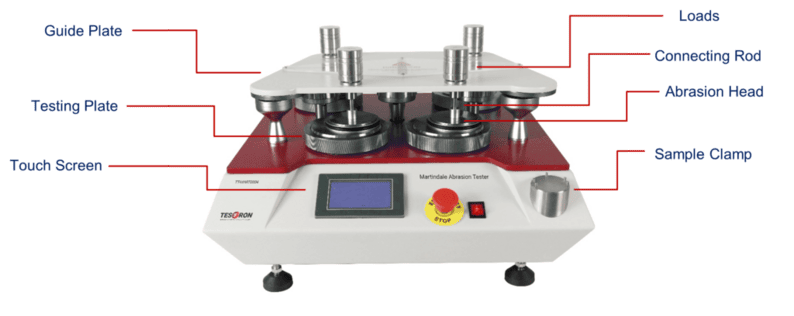

Product Structure of Martindale Abrasion Tester

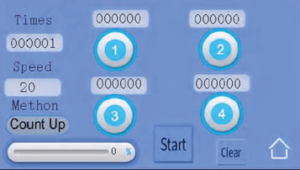

Software Interface of Martindale Abrasion Tester

Test: Friction time setting

Speed: Friction speed setting

Methon: Forward and reverse selection

Standard Configuration of Martindale Abrasion Tester

Items	Qty
Abrasion weight and holder	1 unit
Ø165mm standard abradents fabric	2 units per position
Ø165mm standard woven felt discs	2 units per position
Ø44mm standard backing foam	60 units
Press load	1 unit
Power wire	1 unit
