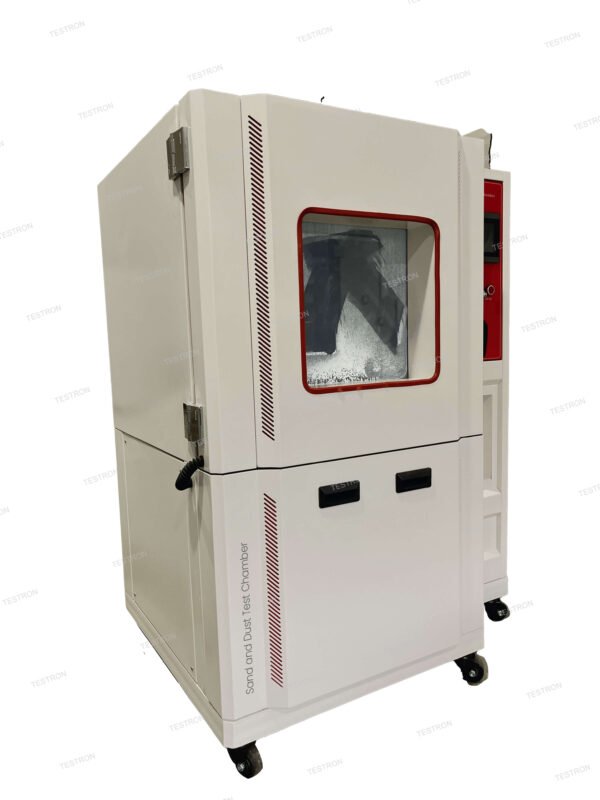

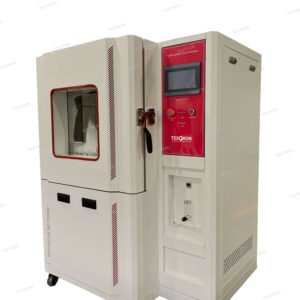

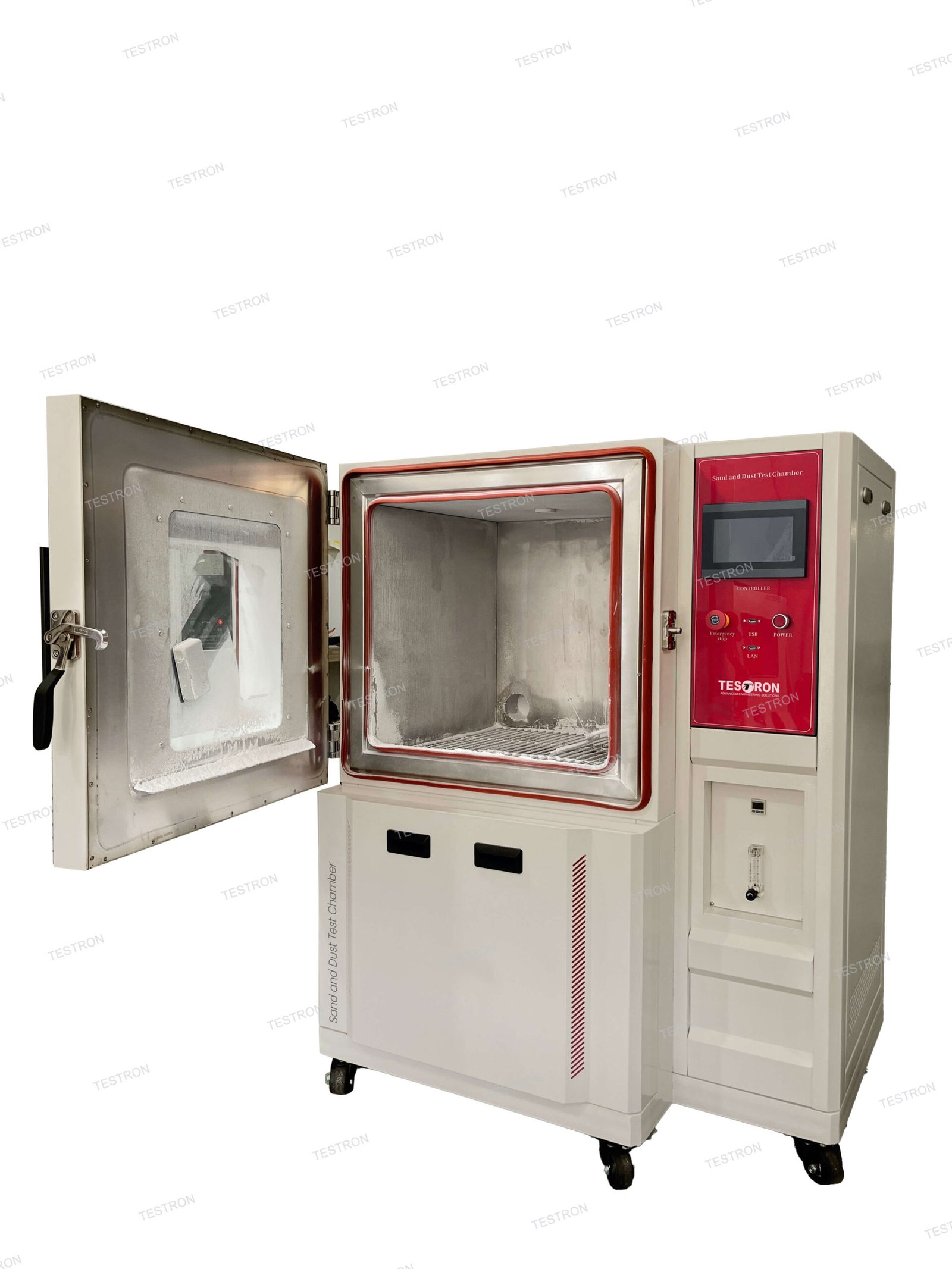

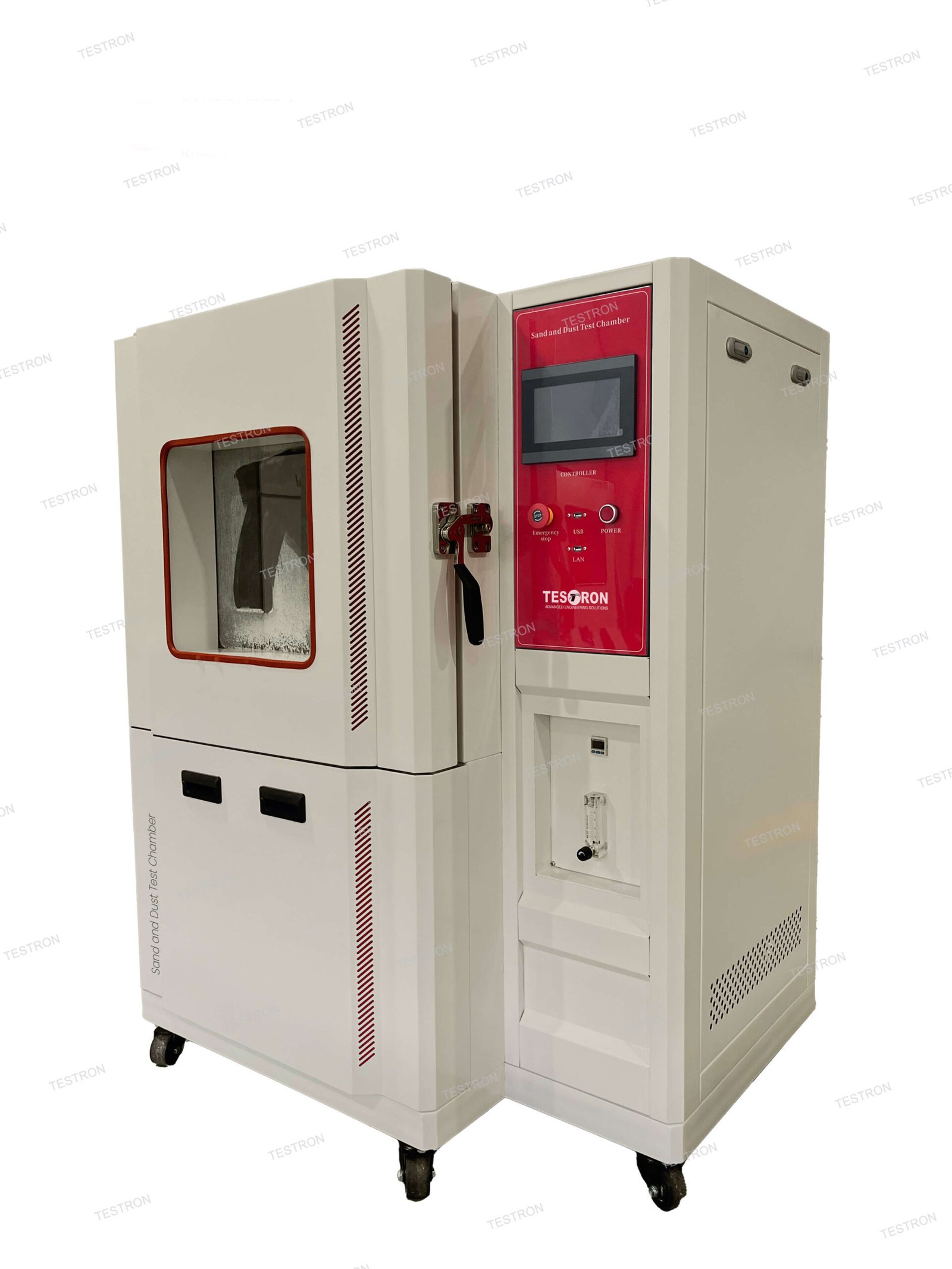

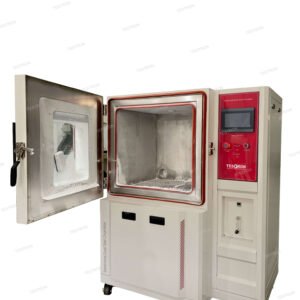

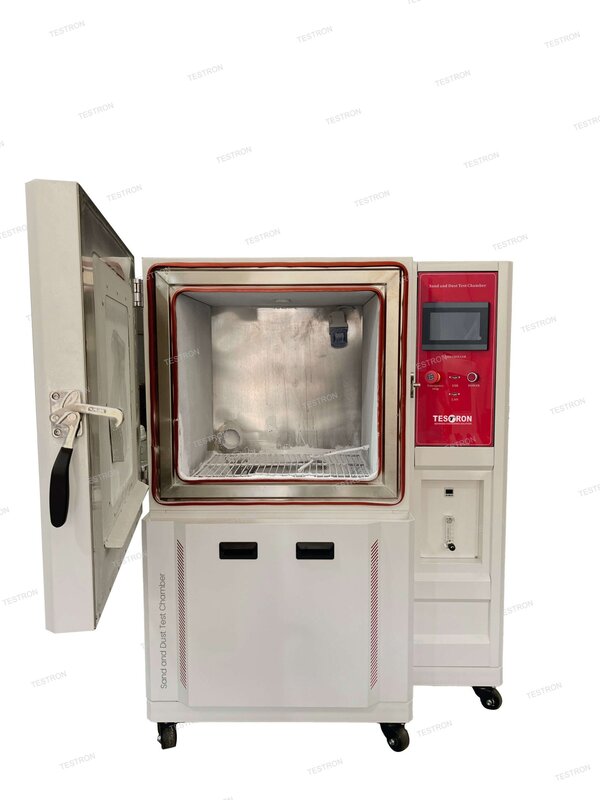

IP5X IP6X Sand and Dust IP Test Chamber

Sand and dust test chambers are made for the simulation of dust and sand conditions. These dust test chambers are used to test the exposure of test the exposure of automotive and electronic components under extreme environmental conditions in order to validate product seal. Dust ingress test methods included IEC60529, ISO20653, and many others.

The airflow circulates upward from the bottom, blowing the dust circulation, forcing dust around the specimens. All models are upgraded to programmable controller and Ethernet access that provides simple operation and control.

IP5X IP6X Sand and Dust IP Test Chambers are capacity of 800 liters ,1000 liters, 1500 liters and 2000 liters. Considering that some specimens are smaller and less, so we designed and produced small dust chambers and larger dust ingress test chambers.

Sand and Dust IP Test Chamber Models

Model	Internal Dimensions (mm)	Overall Dimensions (mm)	Temperature Range	The Talcum Powder Amount
DI-800	80010001000	104014501960	Ambient to +50℃	2 ~ 4kgs/m3
DI-1000	100010001000	120014501960	Ambient to +50℃	2 ~ 4kgs/m3
DI-1500	100015001000	125019001960	Ambient to +50℃	2 ~ 4kgs/m3
DI-2000	100020001000	130024001960	Ambient to +50℃	2 ~ 4kgs/m3
