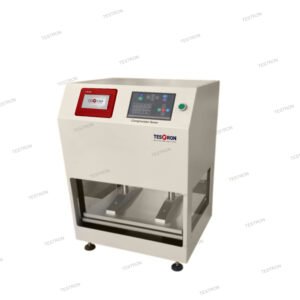

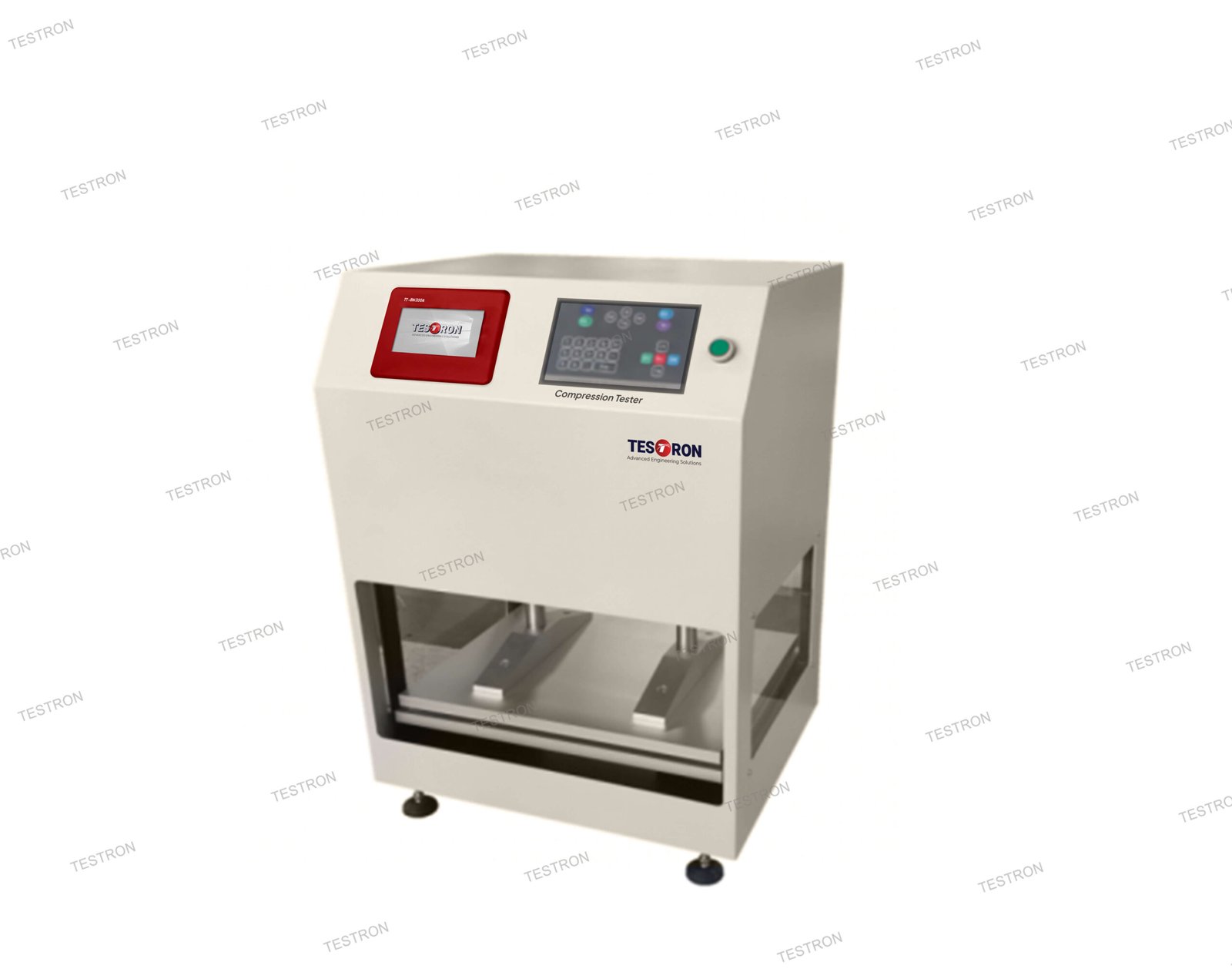

TT-BN 200A Compression Tester Features
- Fully functional, multiple parameters setting and test.
- Wholly automatic, can set auto judgment, auto return and stop; auto process data.
- Built-in operation system can test independently without computer.
- LCD display test data and working state.
- Can set fixed speed and measure the force, test speed is adjustable.
- Can set fixed pressure and measure displacement.
- The control unit can choose built – in type (compact, space-saving) or external type(easy to upgrade, maintain and operate independently without computer).
- Professional software, simple interface, easy to operate.
- Display multiple curves; can zoom and move curves freely.
- Professional test report, can edit and export file in Excel, PDF format etc.
- Simple calibration of force sensor.
TT-BN 200A Compression Tester Specifications
| Item | Technical parameters |
| Test range | 0~5000N (optional) |
| Test speed | 0~300mm/minute (infinitely variable speeds) |
| Test distance | 0-135mm |
| Valid working area | 500mm × 400mm |
| Instrument size | 550mm × 460mm × 725mm |
| Power | 1000W |
| Power supply | As per country standards |
| Test range | 0~5000N (optional) |
TT-BN 200A Compression Tester Configuration List
| A、Spare parts | ||||
| NO. | Name | Remark | Quantity | |
| 1 | Power cable | 3*0.75 10A 1.8M | 1PC | |
| 2 | Data cable | RS232 Nine-pin | 1PC | |
| 3 | Software USB flash drives | 4G | 1PC | |
| 4 | Allen wrench | 1 Set | ||
| 5 | Wooden box | 1 | ||
| 6 | Cross screwdriver | 6-10mm | 1 PC | |
| B、Optional parts | ||||
| NO. | Name | Unit | Quantity | Remark |
| 1 | Computer | Set | 1 | Optional |
| 2 | Metrology Certificates | Optional | ||
| C、User provide | ||||
| 1 | Power supply 500w 220V 10A three holes socket ground wire | |||
| 2 | 1 set of computers（with nine-pin COM port），XP system/Windows7 | |||
