Environmental Test chambers for PV Solar Panels Features:
- Test chambers meet IEC 61215, IEC61646, UL-1703, and similar test methods
- Thermal cycle test – 50 and 200 cycles from -40℃ to +85℃
- Humidity freeze test – 10 cycles from +85℃ & 85%RH to -40℃
- Damp heat test – 1000h at 85℃ & 85%RH
- Different models to suit various sizes of PV Solar Panels
- Supporting racks for fix PV panels
- Adjusting heat & cooling change rate
- Reliable performance
- Temperature control and display unit
- Humidity control and display unit
- Programmable color LCD touch screen controller
- Multi-language interface
- USB and Ethernet
- Mechanical compression refrigeration system
- Casters, racks, and cable ports are standard
- Build-in water tank
- Safety protection system
- CE mark, ISO17025 calibration

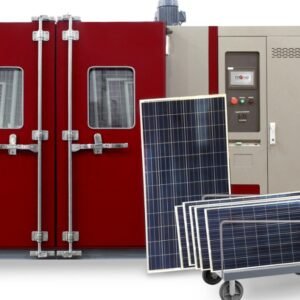

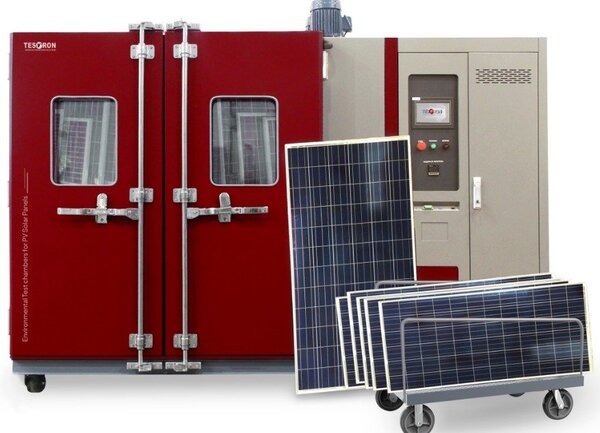

Environmental Test chambers for PV Solar Panels Models:
| Model | Internal size(mm) | External size(mm) | Temperature Range | Humidity Range | |
|---|---|---|---|---|---|
| PV-04 | 1300* 700 * 1350 | 1900 * 1100 * 1750 | -40°C ～ +100°C | 20%~98%RH, controllable |
Environmental Test chambers for PV Solar Panels Accessories:
| Number | Name | Description | |
|---|---|---|---|
| No.1 | Refrigerant | Refrigerant R404A (5KG/tank) Brand: DuPont | |
| No.2 | Refrigerant | Refrigerant R23 (10KG/tank) Brand: DuPont | |
| No.3 | Adding Refrigerant Kits-Tool | Adding Refrigerant Kits-Tool Material: PU Included pressure gauge and connection hose （Reusable） | |
| No.4 | Temperature heater | Temperature heater Description: Nichrome heater Power：2000W, and more | |
| No.5 | Humidity heater | Humidity heater Description: Nichrome heater Power：1000W | |
| No.6 | Capacitive temperature/humidity sensor | Brand: VAISALA Model：HMA6070 Temperature Accuracy：0.01℃ Humidity Accuracy: 1.3% Solution ratio：0.05% | |
| No.7 | Silicone screw plug for cable hole | Silicone screw plug for cable hole |
