Why Choose TT‑ST100 Elongation Testing Machine?

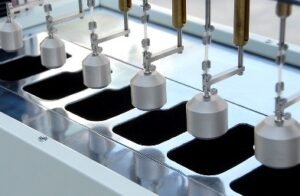

➤ Simultaneous Six Station Operation
Equipped with six individual controllers, the elongation testing machine can evaluate up to six specimens in one session. This multi channel design ensures efficient use of lab resources and accurate comparative data for scientific and production applications.
➤ Automatic Real Time Data Plotting
Upon test initiation, the tester automatically plots a tensile stress time double logarithm curve and computes tensile stress F(150/10) via internal linear regression. This automation reduces manual calculation errors and supports faster report generation.
➤ Safe, Controlled Environment
An integrated smoke exhaust system maintains air quality during testing, while an independent temperature protection subsystem prevents the test medium (e.g., methyl silicone oil bath at 150 °C) from exceeding safe limits.
➤ High Precision and Control
Range of load weights from 100 g to 800 g, displacement resolution of 0.01 mm, and timing accuracy of 0.1 s ensure the elongation test machine meets stringent measurement demands.
Standards and Compliance
The elongation testing machine meets international test standards such as ISO 11542‑2:-1998 and GB/T 21461.2‑2008, commonly used for evaluating the elongational viscosity of PE‑UHMW. Use of recognized standards makes the TT‑ST100 suitable for regulatory labs, manufacturing QC, and material certification workflows.
Technical Specifications of Elongation Test Machine
| Attribute | Specification |
| Model | TT‑ST100 |
| Temperature | 150 °C ± 0.5 °C, silicone oil bath |
| Test Stations | 6 |
| Displacement Travel | 90 mm ± 1 mm |
| Load Range | 100 g to 800 g |
| Displacement Resolution | 0.01 mm |
| Displacement Accuracy | ±0.1 mm |
| Timing Accuracy | 0.1 s |
| Safety Features | Independent thermal cutoffs, exhaust |
| Software | Auto plotting and regression |
Applications & Industries of Elongation Testing Equipment
Quality Control in Manufacturing
Production facilities across plastic processing industries rely on precise elongation data to ensure batch consistency and product compliance.
Polymer Processing & Fabrication
Evaluate elongational properties of PE‑UHMW molding and extruded items under standardized conditions.

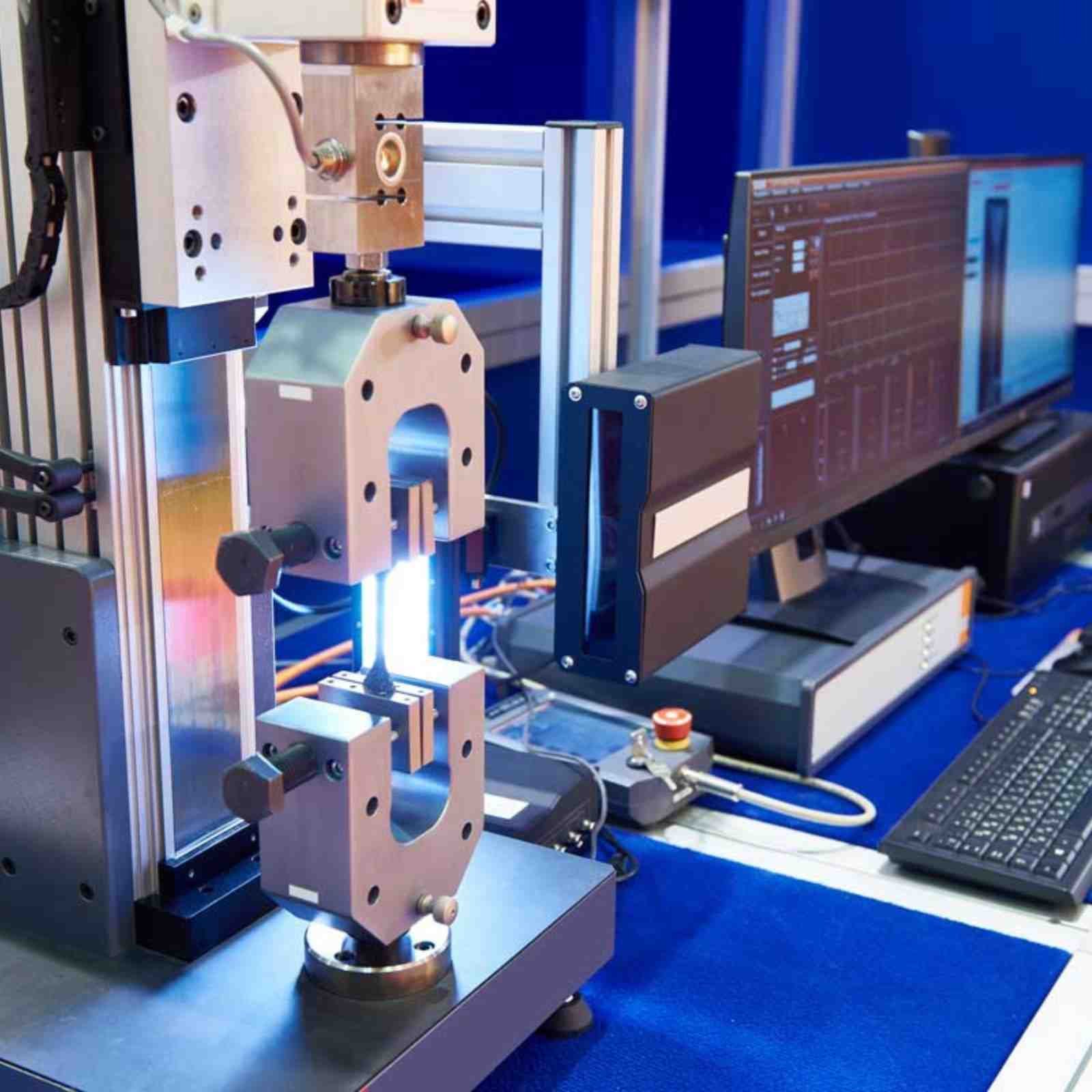

Material Research & Development
Research labs use the elongation testing machine to compare additive blends, polymer formulations, and process variations.
Education & Academic Institutions
Universities teaching polymer rheology and material science benefit from multi sample and automated operation provided by the TT‑ST100.
- Replace silicone oil at regular intervals or when contaminated
- Verify linear regression accuracy and sampling rate
- Inspect motors and exhaust fan quarterly
- Calibrate displacement and load stations as specified
- Clean the silicone oil bath and dry completely between tests
Routine maintenance and calibration ensure consistent performance and longevity of this elongation testing machine equipment.
The elongation testing machine price is calibrated to offer excellent ROI. With simultaneous multi sample testing, labs can reduce per sample labor and time costs. Built in automation and safety systems reduce downtime and training time. Low maintenance design includes washable oil baths and accessible controls. As a trusted industrial elongation testing machine partner, Testron offers spare parts packages and calibration services that further reduce ongoing costs.
- Higher throughput via six hypotheses tested simultaneously
- Reduced setup and manual computation with auto plotting
- Safer work environment with exhaust and temperature protections
- Competitive elongation test machine price compared to single‑station lab units
- Made by seasoned elongation testing machine manufacturers focused on durability and support
Why Testron as Your Industrial Elongation Testing Machine Manufacturer?
Experienced Manufacturer
Over a decade of supplying elongation test machines globally
Local Support
USA based technical assistance, spare parts, and calibration services
Customization & Upgrades
Additional load cell ranges or software modules available on request
Transparent Pricing
Contact us for a tailor made quotation corresponding to test stations and functionality
Call to Action
Need precise elongation testing capabilities?
Inquire Now to request details including specification sheets, elongation testing machine price, software integration options, and support packages tailored to your lab’s needs.
Conclusion – Your Trusted Partner in Elongation Testing
The TT‑ST100 elongation stress tester provides exceptional precision, speed, and reliability in elongation testing. Its dual emphasis on throughput and data integrity makes it a top choice for labs aiming to elevate their material evaluation capabilities. With robust design, automated plotting, and competitive elongation testing machine price, Testron ensures you get superior performance and support from a global provider and trusted elongation testing machine manufacturer.
Frequently Asked Questions (FAQ)
Though compact in size, the TT‑ST100 is an industrial elongation testing machine due to multi station capability, high precision controls, and automated data functions.
An independent PID controlled temperature system maintains 150 °C ± 0.5 °C with safety cutoff alarms to prevent overheating.
Yes—upon startup, it plots a tensile stress vs time double logarithm curve automatically and runs linear regression for stress calculation.
Each station includes a digital controller interface with parameter input, test initiation, and data logging display. Export and PDF report options are available via USB.
Minimal training is required due to its intuitive interface. Training and user manuals are included as part of service. Testron also offers onsite setup and user support.
Calibration is performed at the factory with traceable standards. Annual calibration services are available from Testron’s network to ensure continued compliance.
