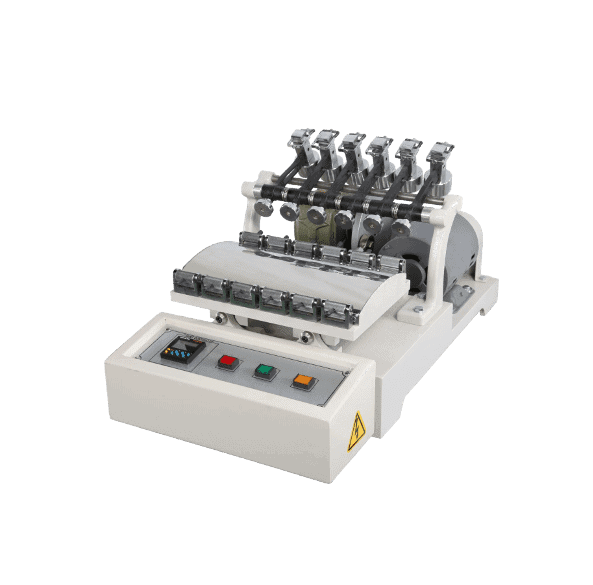

Dyeing Rubbing Tester Standards
JIS L0801/L0849/L1006/L1084/K6328/P8136
Dyeing Rubbing Tester Specifications
| Model | QC-319 |
| Stations | 6 pieces/each time |
| Sample size | 22 × 3 cm |
| White cloth size | 5 × 5 cm |
| Rubbing hammer | 20 × 20 mm |
| Rubbing speed | 30 CPM |
| Basic load | 200g (apply a 300g weight to test at 500g ) |
| Rubbing distance | 100 mm |
| Rubbing area | Around 1 cm² |
| Timer | 1~99,999 times (stop automatically when the count is finished) |
| Power | Single phase, 110V/220V |
| Dimension | 45 × 65 × 35 cm |
| Weight | 45 kg |
