Differential Scanning Calorimeter Standards:
- ISO11367, OIT

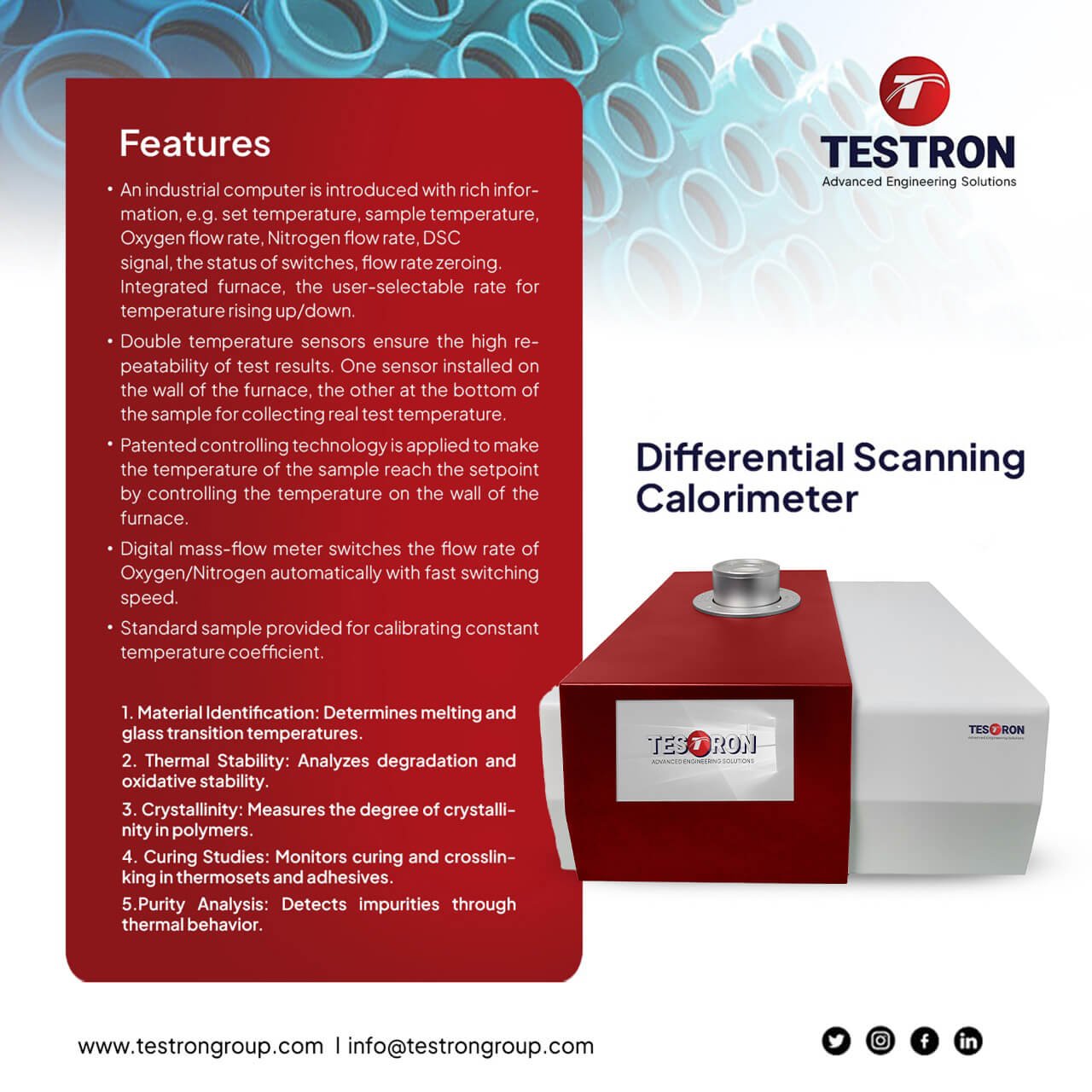

Differential Scanning Calorimeter Features:
- An industrial computer is introduced with rich information, e.g. set temperature, sample temperature, Oxygen flow rate, Nitrogen flow rate, DSC signal, the status of switches, flow rate zeroing.
- Integrated furnace, the user-selectable rate for temperature rising up/down.
- Double temperature sensors ensure the high repeatability of test results. One sensor installed on the wall of the furnace, the other at the bottom of the sample for collecting real test temperature. Patented controlling technology is applied to make the temperature of the sample reach the setpoint by controlling the temperature on the wall of the furnace.
- Digital mass-flow meter switches the flow rate of Oxygen/Nitrogen automatically with fast switching speed.
- Standard sample provided for calibrating constant temperature coefficient.
- Simplified to one-key operation. Tens of commands can be combined on your demands, making operation easier. Also, support the self-programming function.
Highlights
- Industry computer control
- Best choice for OIT test
- Software Full-automatic performance
Optional functions
With the optional functions of the melting, solidification, decomposition, chemical combination, reduction, oxidation, and crystallization of the material. With convenient data processing system and calculation method for the epitaxial starting temp, enthalpy variable, glass transition temp, enthalpy ratio, specific heat, and kinetic parameters.
Differential Scanning Calorimeter Technical Specifications:
- Temperature range: room temperature to 500℃ ( higher temperature customized)
- Temperature resolution: 0.1℃
- Heating rate: 0.1 ~ 80 ℃ / min
- DSC range: 0 ~ ± 200 mW
- DSC resolution: 0.01 mW
- DSC sensitivity: 0.1 mW
- Working power supply: AC 220 v 50 hz
