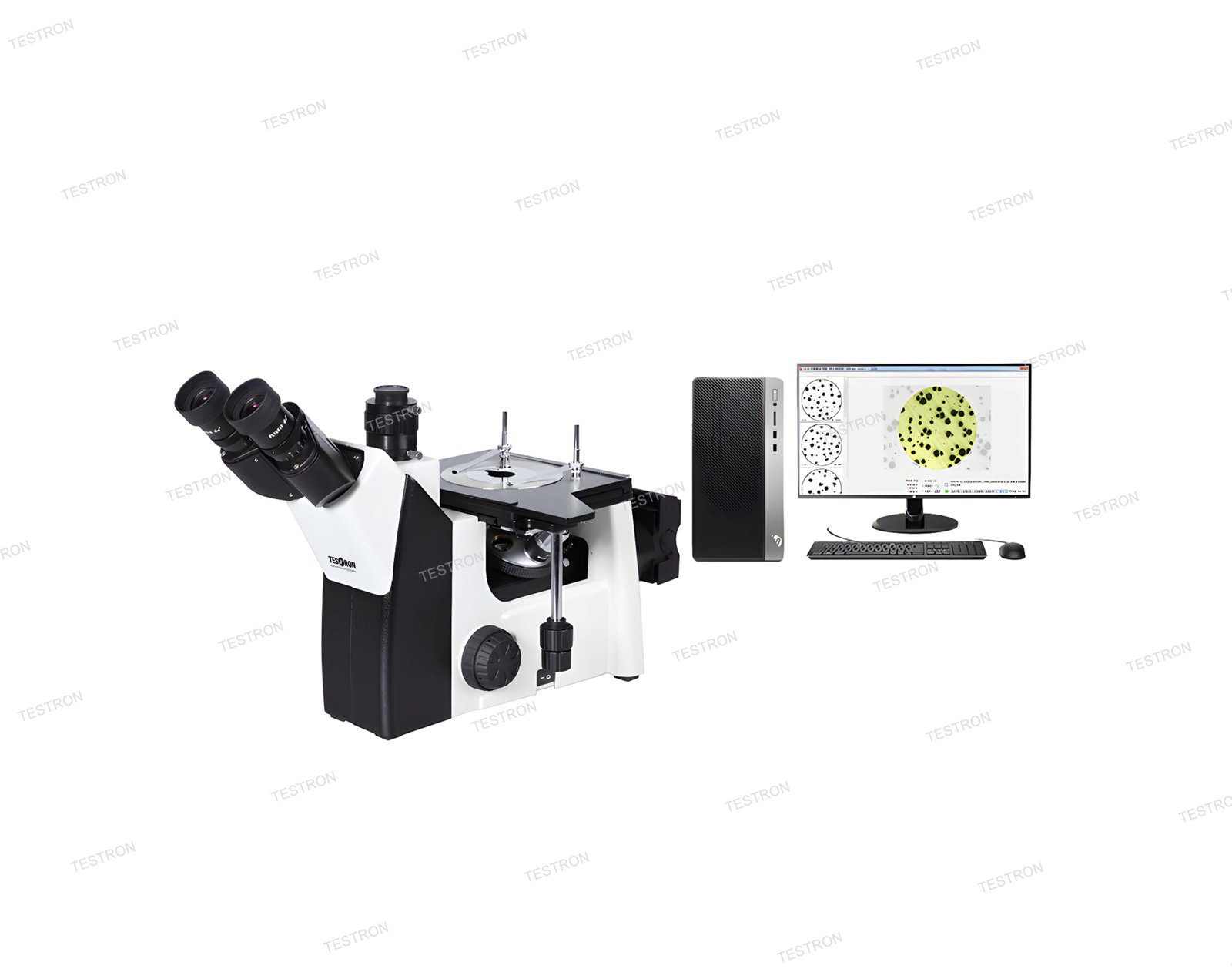

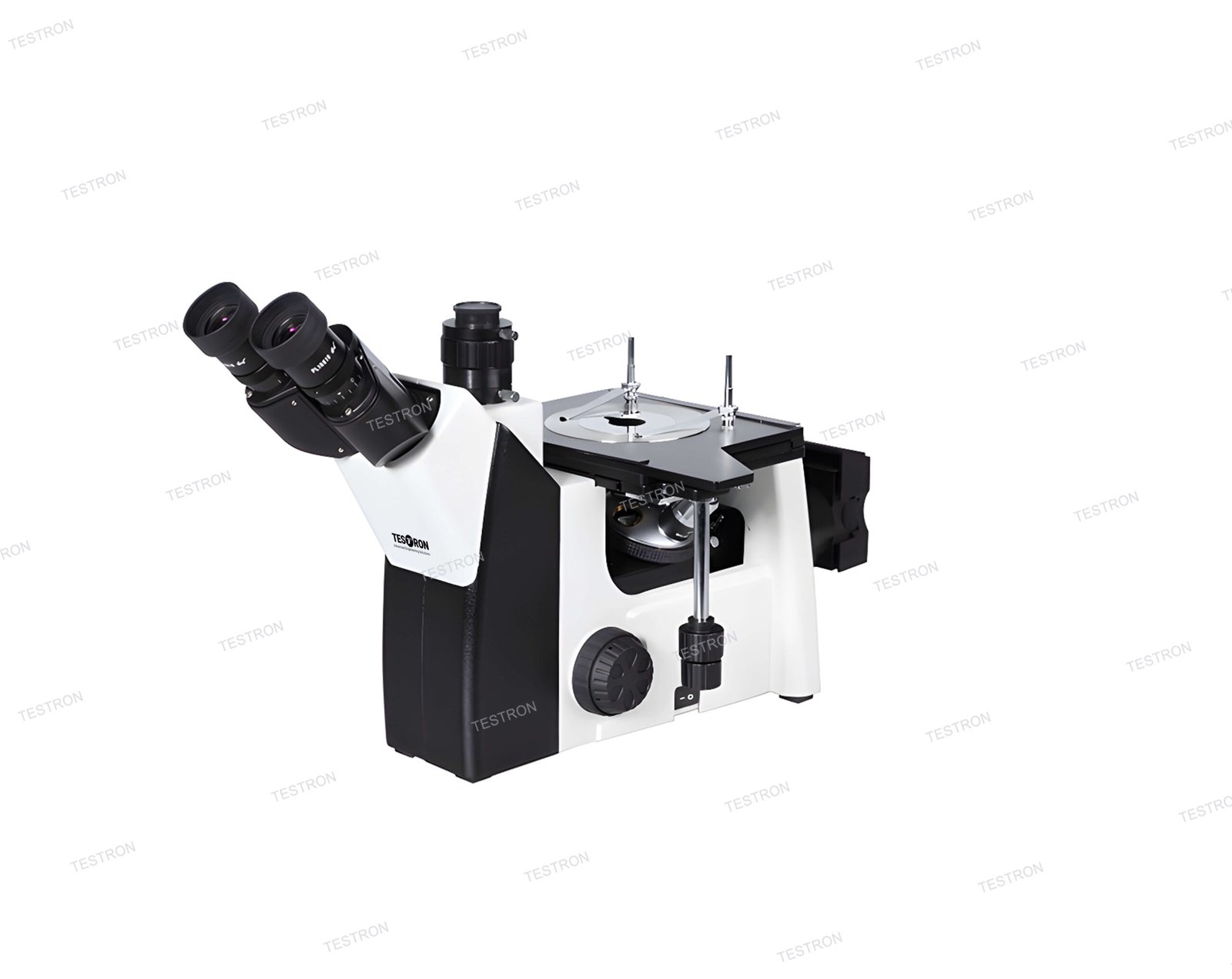

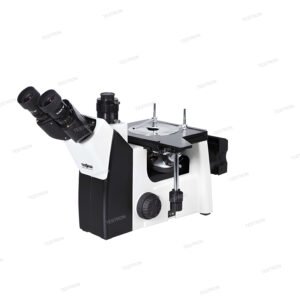

Application of TT-2000W- Computerized Metallurgical Microscope
It is the ideal equipment for metallographic analysis of steel, non-ferrous metal materials, castings, coatings, lithofacies analysis, and microscopic analysis of compounds and ceramics in the industrial field.
Features of TT-2000W- Computerized Metallurgical Microscope
- It adopts the coaxial focusing adjustment mechanism for coarse and fine adjustment, which can be adjusted on both the left and right sides, with high precision of fine adjustment, simple and convenient manual adjustment, and users can easily obtain clear and comfortable images.
- It adopts a large-size stage of 180×155mm and is set in the right-hand position, which conforms to users’ operating habits. It is convenient to switch the operation of focusing adjustment and platform movement, providing users with a more efficient working environment.
Technical Specifications of TT-2000W- Computerized Metallurgical Microscope
| Model | TT-2000-W |
| Optical system | Limitless color corrected optical system |
| Viewing head | 45°inclined, trinocular, interpupillary distance adjustable between 54-75mm, binocular: trinocular=80%:20% |
| Eyepiece | High eyepoint wide field plan eyepiece PL10X/18mm |
| Objectives | LMPL5X /0.125 WD15.5mm; LMPL10X/0.25 WD8.7mm; LMPL20X/0.40 WD8.8mm; LMPL50X/0.60 WD5.1mm |
| Nosepiece | Four-position nosepiece; Five-position nosepiece (optional) |
| Focusing adjustment | Low position coaxial coarse and fine adjustment system. Coarse adjustment stroke: 38 mm; fine adjustment accuracy:0.02m |
| Stage | three-ply mechanical stage area 180mmX155mm right hand low position control, Moving range:75mm×40mm |
| Stage plate | Metal stage plate, center hole dia.φ12mm |
| Nosepiece | Reflection Koehler illumination with variable aperture diaphragm and center adjustable field diaphragm, wide range voltage 100V-240V, single 5W warm color LED with continuous intensity |
| Focusing adjustment | Koehler illumination with variable aperture diaphragm and center adjustable field diaphragm, wide-range voltage 100V-240V, 6V/30W halogen bulb with continuous intensity (optional) |
| Color filters | Yellow, green, blue, matte color filters |
| Metallographic Analysis Software | FMIA2020 Metallographic analysis software; Sony chip 5 million camera device, 0.5X adapter lens interface, high-precision micrometer |
Optional Accessory of TT-2000W- Computerized Metallurgical Microscope
- Eyepiece: PL10X/18mm with optional micrometer
- Eyepiece: WF15X/13mm with optional micrometer
- Eyepiece: WF20X/10mm with optional micrometer
- Objective: LMPL100X/0.80 WD2.00mm
- Polarizing kit: Polarizer insert, fixed analyzer insert,
- 360°rotating analyzer insert
- HP computer
