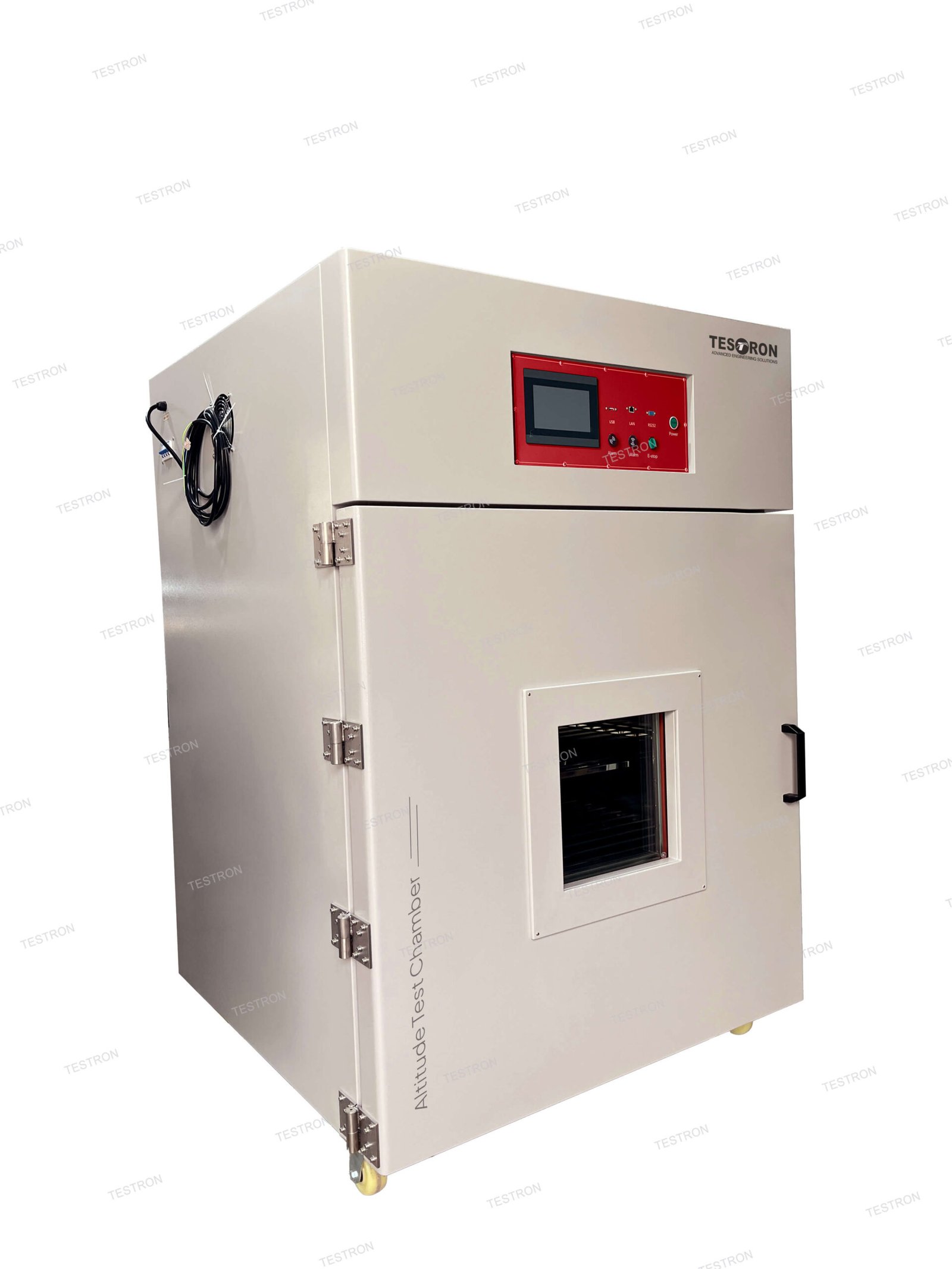

Technical Specifications:
| Model | AT-270B | ||
| Internal Dimension (mm) | 600(D) * 600(W) * 750(H) | ||
| Overall Dimension (mm) | 1350(D) * 1550(W) * 2100(H) | ||
| Interior Volume | 270 liters | ||
| Parameter | Temperature | Range | -40℃ ~ +100℃ |
| Fluctuation | ≤1.0℃ (Ambient pressure, empty loads) | ||
| Deviation | ≤±2.0℃ (Ambient pressure, empty loads) | ||
| Uniform | ≤2.0℃ (Ambient pressure, empty loads) | ||
| Heating Rate | Average value 3.0 ℃/min (Ambient pressure, empty loads) | ||
| Cooling Rate | Average value 1.0 ℃/min (Ambient pressure, empty loads) | ||
| Pressure | Range | 30kpa ~ 125kpa | |
| Deviation | ≤±2kPa (when pressure ≥40kpa)≤±5% (when pressure 30～40kPa) | ||
| Recovery rate | ＜ 10kpa/min | ||
| Structure | Cooling | Cooling system | Mechanical compression refrigeration system |
| Refrigerating unit | France TECUMSEH | ||
| Heating Element | Nichrome heater | ||
| Controller | Programmable color LCD touch screen controller | ||
| Ethernet connection, USB port | |||
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃ | ||
| Pressure Sensor | China brand, deviation ±0.5% | ||
| Material | Exterior Material | Steel Plate with protective coating | |
| Interior Material | SUS304 stainless steel | ||
| Thermal Insulation | Polyurethane foam and insulation cotton | ||
| Power Supply | AC380V 50Hz 3phase | ||
WorkRoom:
- The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and Moisture corrosion, nice ruggedness and long life.
- 2 pieces of adjustable and removable SUS304 stainless steel punching sample shelves, conducive to the air circulation, standard load of 30KGS for each layer of sample shelf.
1pc Temperature sensor PT-100A - 1pc exhaust port. When making the 1kpa pressure, the interior air will exhausting from this port.
Controller:
- PID programmable color touch screen controller
- The set system language is English for standard
- Control and display workroom’s temperature, pressure
- Ethernet interface, for PC link
- USB port, for download the test data
