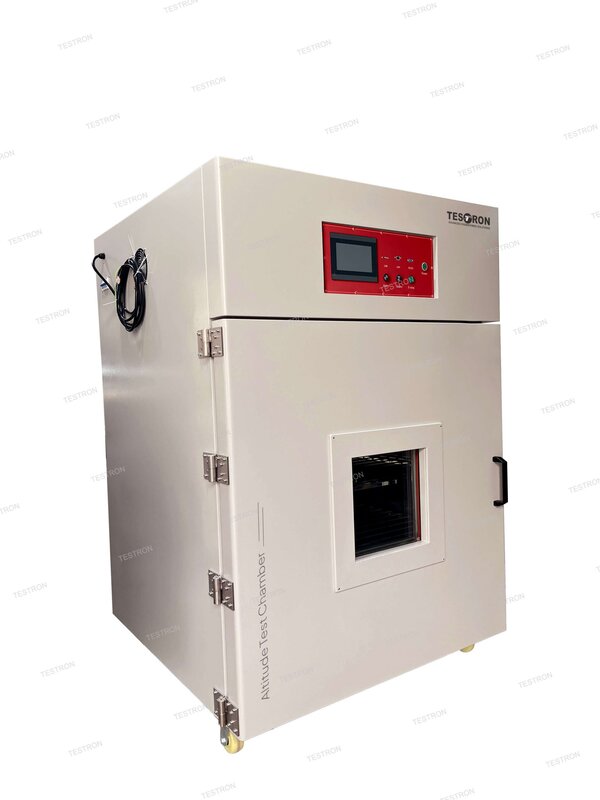

Testron altitude test chamber enables rigorous assessment of component performance under real world stress, all within a single controlled unit. From product endurance in high mountain air to performance in sea level pressure, Testron’s altitude testing chamber ensures compliance with critical regulatory standards and accelerates time to market testing cycles.
Why an Altitude Test Chamber is Essential
Test at True Heights:
Simulating altitudes up to 50,000 feet, our chamber exposes devices to pressures as low as 10 kPa , essential for aerospace avionics, avionics sensors, and satellite grade components.
Comprehensive Climate Testing:
Coupling altitude with temperature and humidity control, our altitude temperature test chamber offers a holistic environmental test approach. Whether you’re buying an altitude chamber for testing cold cockpit electronics or humid tropical composites, the chamber handles it all.
Regulatory & Certification Compliance:
Aligned with industry benchmarks including DO-160, MIL-STD, and ISO standards, our temperature altitude chamber streamlines compliance validation for FAA approved navigation systems, automotive airbags, sensors, and renewable energy components
Altitude Chamber Design & Workroom Features
- Premium 304 Stainless Steel Interior , corrosion resistant and easy to clean, suitable for extreme temperatures and humidity.
- Mirror polished surface ensures optimal internal reflection and contaminant resistance.
- Two adjustable SUS304 sample shelves, each with a 30 kg load capacity, designed to maximize air circulation and uniform testing.
- PT-100A temperature sensor and 1 kPa pressure exhaust port, ensuring fast stabilization and accurate monitoring.
- Rugged, chemical resistant build ensures longevity in both extreme cold and heat.
Advanced Control & Connectivity
- PID Programmable Color Touchscreen Controller – allows precise environmental profile programming.
- Dual language UI (standard EN, optional others) enhances usability.
- Simultaneous display and control of chamber temperature and pressure for synchronized testing.
- Ethernet and USB interfaces support remote monitoring and data logging , perfect for modern altitude chamber manufacturers requiring traceable records.
Key Technical Specifications
| Model | AT-270B | ||
| Internal Dimension (mm) | 600(D) * 600(W) * 750(H) | ||
| Overall Dimension (mm) | 1350(D) * 1550(W) * 2100(H) | ||
| Interior Volume | 270 liters | ||
| Parameter | Temperature | Range | -40℃ ~ +100℃ |
| Fluctuation | ≤1.0℃ (Ambient pressure, empty loads) | ||
| Deviation | ≤±2.0℃ (Ambient pressure, empty loads) | ||
| Uniform | ≤2.0℃ (Ambient pressure, empty loads) | ||
| Heating Rate | Average value 3.0 ℃/min (Ambient pressure, empty loads) | ||
| Cooling Rate | Average value 1.0 ℃/min (Ambient pressure, empty loads) | ||
| Pressure | Range | 30kpa ~ 125kpa | |
| Deviation | ≤±2kPa (when pressure ≥40kpa)≤±5% (when pressure 30～40kPa) | ||
| Recovery rate | ＜ 10kpa/min | ||
| Structure | Cooling | Cooling system | Mechanical compression refrigeration system |
| Refrigerating unit | France TECUMSEH | ||
| Heating Element | Nichrome heater | ||
| Controller | Programmable color LCD touch screen controller | ||
| Ethernet connection, USB port | |||
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃ | ||
| Pressure Sensor | China brand, deviation ±0.5% | ||
| Material | Exterior Material | Steel Plate with protective coating | |
| Interior Material | SUS304 stainless steel | ||
| Thermal Insulation | Polyurethane foam and insulation cotton | ||
| Power Supply | AC380V 50Hz 3phase | ||

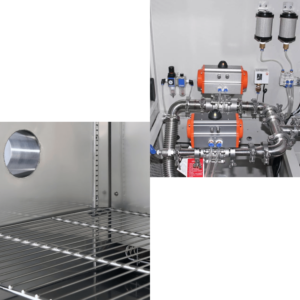

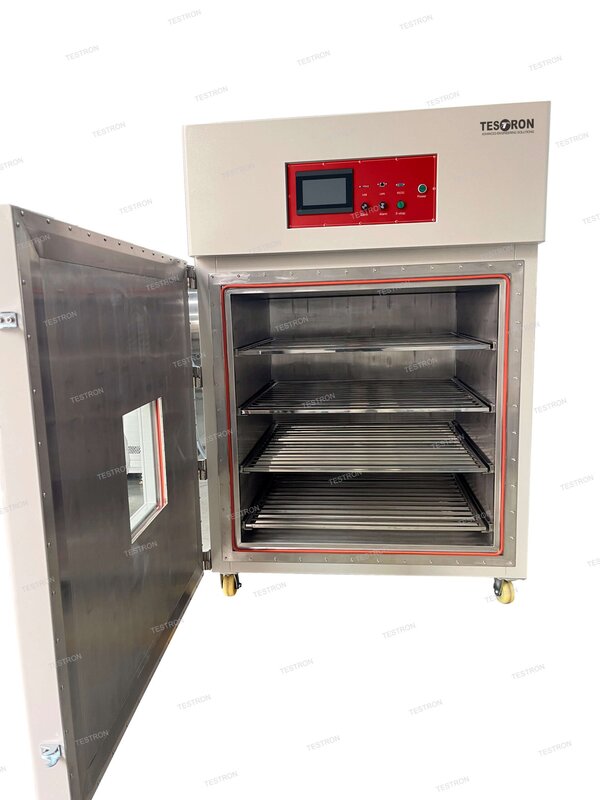

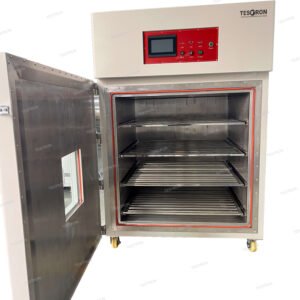

Work Room:
- The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and Moisture corrosion, nice ruggedness and long life.
- 2 pieces of adjustable and removable SUS304 stainless steel punching sample shelves, conducive to the air circulation, standard load of 30KGS for each layer of sample shelf.
1pc Temperature sensor PT-100A - 1pc exhaust port. When making the 1kpa pressure, the interior air will exhausting from this port.
Controller:
- PID programmable color touch screen controller
- The set system language is English for standard
- Control and display workroom’s temperature, pressure
- Ethernet interface, for PC link
- USB port, for download the test data
Applications of Altitude Testing Chamber Across Industries
Aerospace & Defense:
Test avionics systems, flight recorders, satellite modules, battery packs, and parachute systems under altitude-induced stress. There are many other benefits of altitude test chambers for aerospace applications as well.
Electronics & Semiconductor:
Validate microprocessor boards, sensors, and IoT devices for reliable operation in thin air conditions and temperature extremes.
Automotive:
Perform brake and turbocharger evaluation under varying elevations, and assess EV battery performance in high altitude environments.
Energy & Renewable:
Test wind turbines, solar panels, and gas sensors to ensure performance at different elevation sites and temperatures.
Medical & Life Sciences:
Simulate altitude conditions for respiratory devices, emergency kits, and pharmaceutical storage, ensuring safety and functionality in remote areas.
Altitude Temperature Test Chamber Customization Options Available
- Large Work Volumes (up to walk in size) for full vehicle or equipment testing.
- Humidity kits to convert base models into fully featured altitude simulation chambers.
- Observation windows and internal lighting for live monitoring.
- Data integration modules supporting PLC, SCADA, or cloud data platforms.
- Multi zone shelving and mixing fans for non uniform samples and large batch testing.
Country Wide Support & Calibration Services
Specify your environmental test chamber needs and expect timely consultation, installation, onsite training, and regular servicing , right from our USA support hubs. Our altitude test chamber price includes customizable service packages and ISO 17025 calibration for peace of mind in traceable test results.
Frequently Asked Questions (FAQs)
Our altitude test chamber simulates sea level to 50,000 ft (approx. 10 kPa). Additional options include low altitude ranges for tailored testing , not compromising performance or accuracy.
Yes. The altitude testing chamber ensures synchronized control of temperature and pressure, with optional humidity control for combined environment simulations.
Prices vary depending on size, humidity capabilities, and custom options. We provide transparent quotations with detailed specifications and optional features.
Absolutely. Each unit comes with ISO 17025 traceable calibration. We also offer periodic recalibration and service packages to maintain accuracy.
They are essential for aerospace avionics, medical respiratory devices, automotive turbo systems, renewable energy components, and remote site electronics.
With routine checks of seals, sensors, and exhaust ports, plus timely calibration, our environmental chambers can operate for years. Our technical team in the USA provides ongoing support and spare parts when needed.
