3TS series thermal shock chamber features:
- The test specimens remain stationary and don’t move

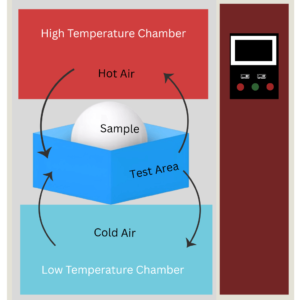

- Pneumatic damper type thermal shock chamber
- One test room configuration
- Temperature recovery time less than 15 minutes
- Programmable color LCD touch screen controller
- Mechanical compression refrigeration system
- Casters, shelf, and cable port are standard
- The lamp inside of the chamber
- Ethernet and USB(option)
- Large viewing window
- Adjustable and removable sample shelves
- Safety protection system
- CE mark, ISO17025 calibration
3TS series thermal shock chamber models:
| Model | Internal Dimension (mm) | Overall Dimension (mm) | Temperature Range (℃) | Load of Test Room | |
|---|---|---|---|---|---|
| 3TS-100 | 500*500*400 D*W*H | 1150*1950*2100 D*W*H | -65℃ to +210℃ | 10 kg | |
| 3TS-210 | 700*600*500 D*W*H | 1350*2100*2200 D*W*H | -65℃ to +210℃ | 15 kg | |
| 3TS-300 | 700*780*550 D*W*H | 1350*2250*2300 D*W*H | -65℃ to +210℃ | 25 kg | |
| 3TS-500 | 900*800*700 D*W*H | 2500*2250*2150 D*W*H | -65℃ to +210℃ | 35 kg |
3TS series thermal shock chamber accessories:
| Number | Name | Description |
|---|---|---|
| No.1 | Refrigerant | Refrigerant R404A (5KG/tank) Brand: DuPont |
| No.2 | Refrigerant | Refrigerant R23 (10KG/tank) Brand: DuPont |
| No.3 | Adding Refrigerant Kits-Tool | Adding Refrigerant Kits-Tool Material: PU Included pressure gauge and connection hose （Reusable） |
| No.4 | Temperature heater | Temperature heater Description: Nichrome heater Power：2000W, and more |
| No.5 | Capacitive temperature sensor | Brand：VAISALA Model：HMA6070 Temperature Accuracy：0.01℃ Humidity Accuracy: 1.3% Solution ratio：0.05% |
| No.6 | Silicone screw plug for cable hole | Silicone screw plug for cable hole |
