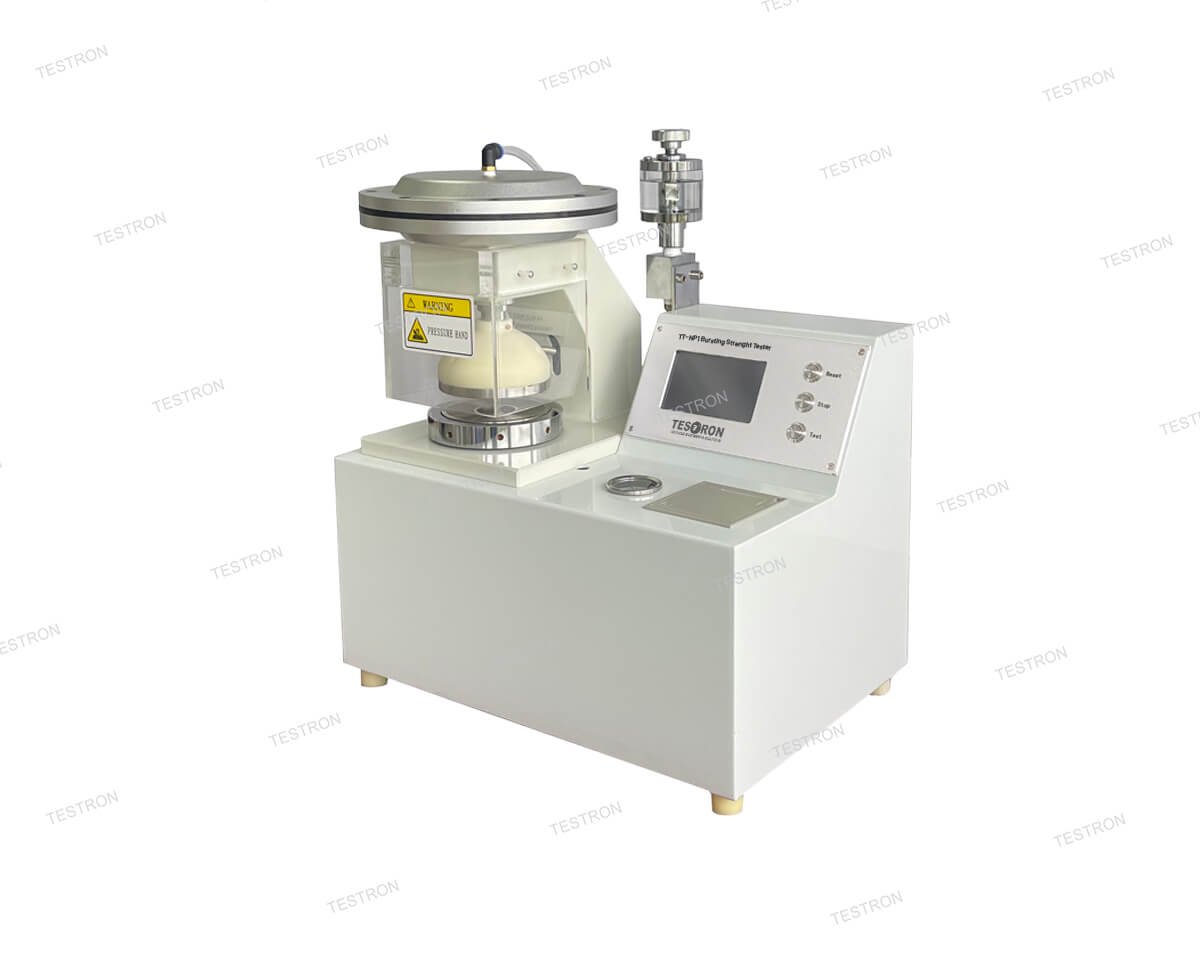

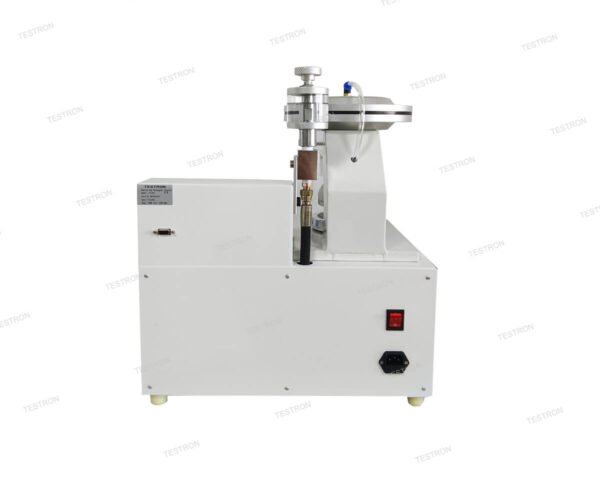

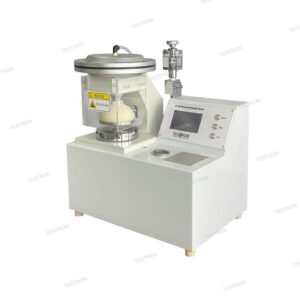

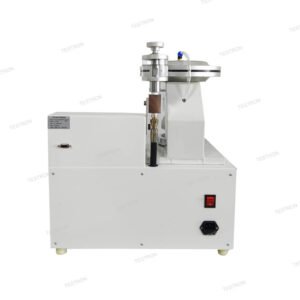

TT-NP1 Bursting Strength Tester

Bursting Strength Tester can measure the bursting strength of single-layer or multi-layer paper, and can be used to test the blasting strength of cloth, leather, paper board, thin metal sheet, etc., which is indispensable equipment for quality inspection. It meets the standards of QB/T 1057-2004 “paper and board bursting tester”, GB/T 454-2002 “Paper-Determination of bursting strength”, etc. Use mark transmission pressure, automatically retain the maximum bursting strength value when bursting, decomposition degree is 100 times higher than the needle type.

TT-NP1 Bursting Strength Tester Standards:

ISO 2759, JIS P8112, ASTM D2210, EN ISO 13938-1, TAPPI T403, QB/T 1057-2004, GB/T 454-2002, GB/T 1539, GB 6545.

TT-NP1 Bursting Strength Tester Specifications:

Item	Technical Parameters
Measurement range	（250-5600）kpa
Resolution	1 kpa
Indication error	±0.5%FS
Indication fluctuation	≤0.5%
system seal degree	in 1 minute, pressure decrease＜10%pmax
Sample clipping pressure	0～0.8Mpa（adjustable）
Oil pressure speed	(170±15)ml/min
Instrument size	about 500 ×750 × 505mm
Instrument weight	about 47kg
Power supply	AC 220V，50Hz
