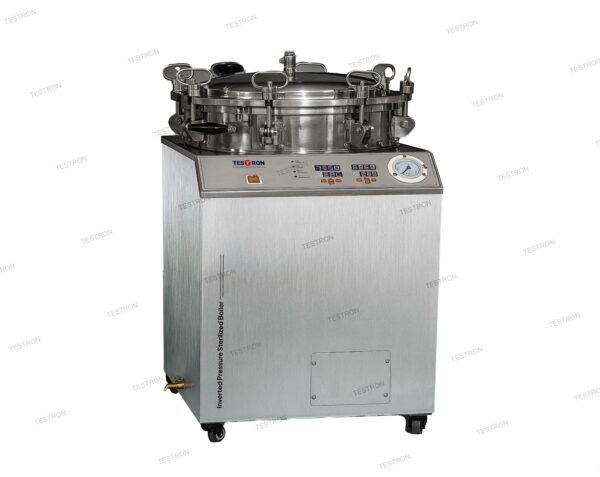

Application of TT-ZM100 Inverted Pressure Sterilized Boiler
It is applicable for packaging, filmmaking, food, printing industries, testing institutions, scientific research institutes, and medical organizations to sterilize materials and test the resistance property of high temperature boiling of the packaging materials.
Test Standards of TT-ZM100 Inverted Pressure Sterilized Boiler
GB 150, GB/T 10004, GB 4793.1, YY1007-2005
Features of TT-ZM100 Inverted Pressure Sterilized Boiler
- Automatic rising temperature, automatic keeping temperature, automatic timing.
- Inverted Pressure Sterilized function.
- Unique chamber design can thoroughly sterilize items; Counter-pressure method can prevent sample bags from wrinkling or breaking.
- Water shower cooling and air cooling, with high efficiency and good effect, fast heating, and cooling.
- Control of water level, time, and temperature; multiple safety protection against water shortage and over temperature, and auto power off.
- Five grades of safe measures, efficient and reliable.
Working principle of TT-ZM100 Inverted Pressure Sterilized Boiler
Counter-pressure method: During the cooling process after sterilization of tested items (bags), the temperature inside the bag remains higher than outside the bag in the tank, and this can cause pressure difference and make the bag burst. To prevent the bursting, we can inject balancing pressure (counter-pressure) air during the cooling process to keep pressure in the tank and eliminate the pressure difference while temperature decreases gradually.
Technical Specifications of TT-ZM100 Inverted Pressure Sterilized Boiler
| Items | TT-ZM100 |
| Tank size (inner) | φ400mm, H 500mm |
| Outer size | 585mm x 565mm x 1180mm |
| Tank capacity | 50L |
| Working pressure | 0~0.22Mpa (saturated water vapor pressure) |
| Water injection pressure | ≥ 0.32Mpa |
| Counter-pressure | 0.14~0.165Mpa |
| Sterilizing temperature | 100~135℃ |
| Sterilizing time | 1 min~99.59 min |
| Power supply | AC220V 50Hz |
| Power | 4.5kw±10% |
| Weight | 90 kg |
Standard Configuration of TT-ZM100 Inverted Pressure Sterilized Boiler
- Main machine body
- water sprinkler
- spanner
- water pipe
- special faucet
- Optional (for purchase): compressed air or air compressor, plastic air pipe (with pressure releasing valve)
