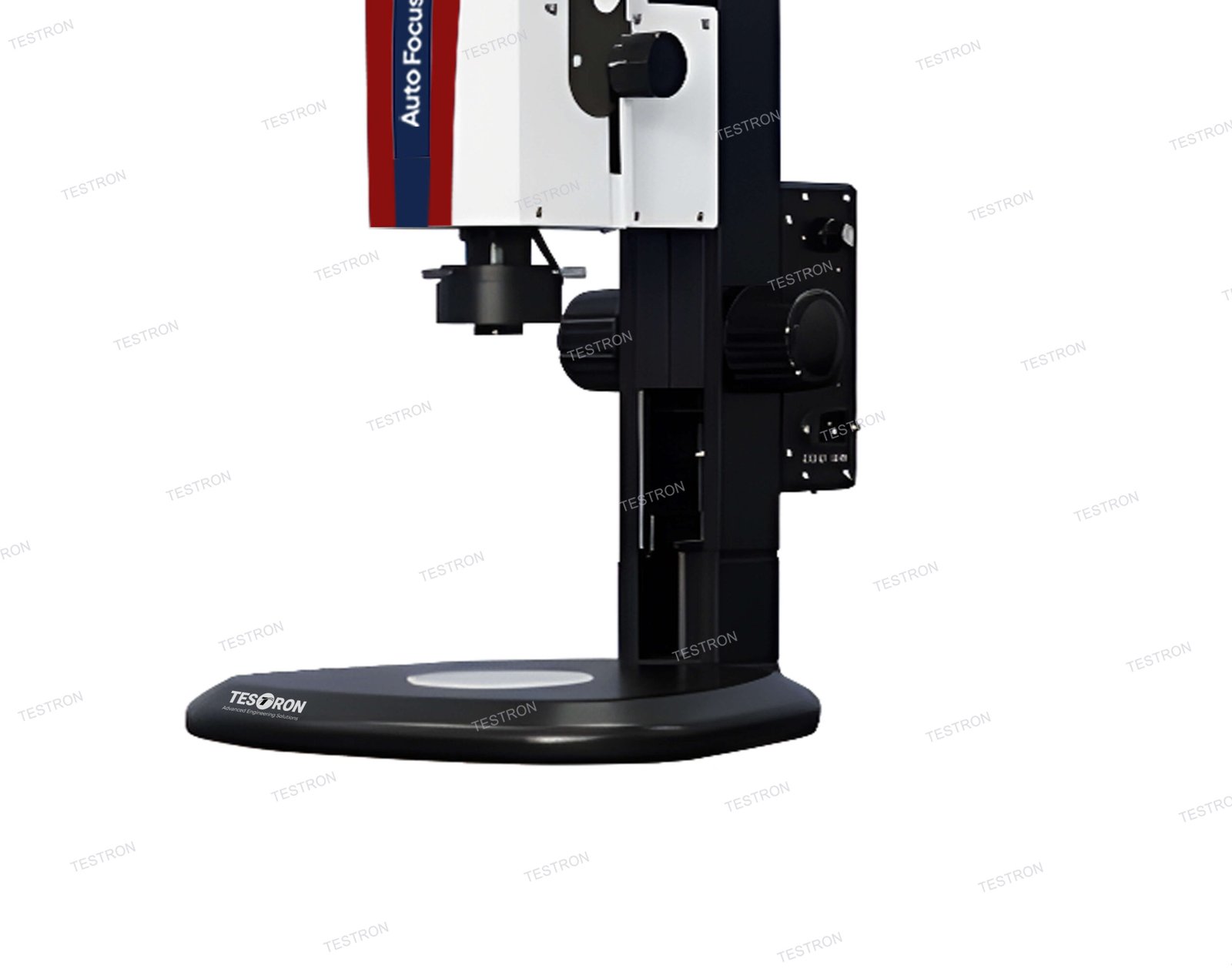

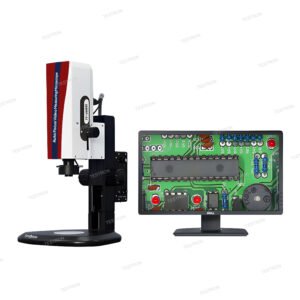

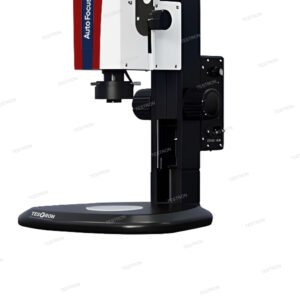

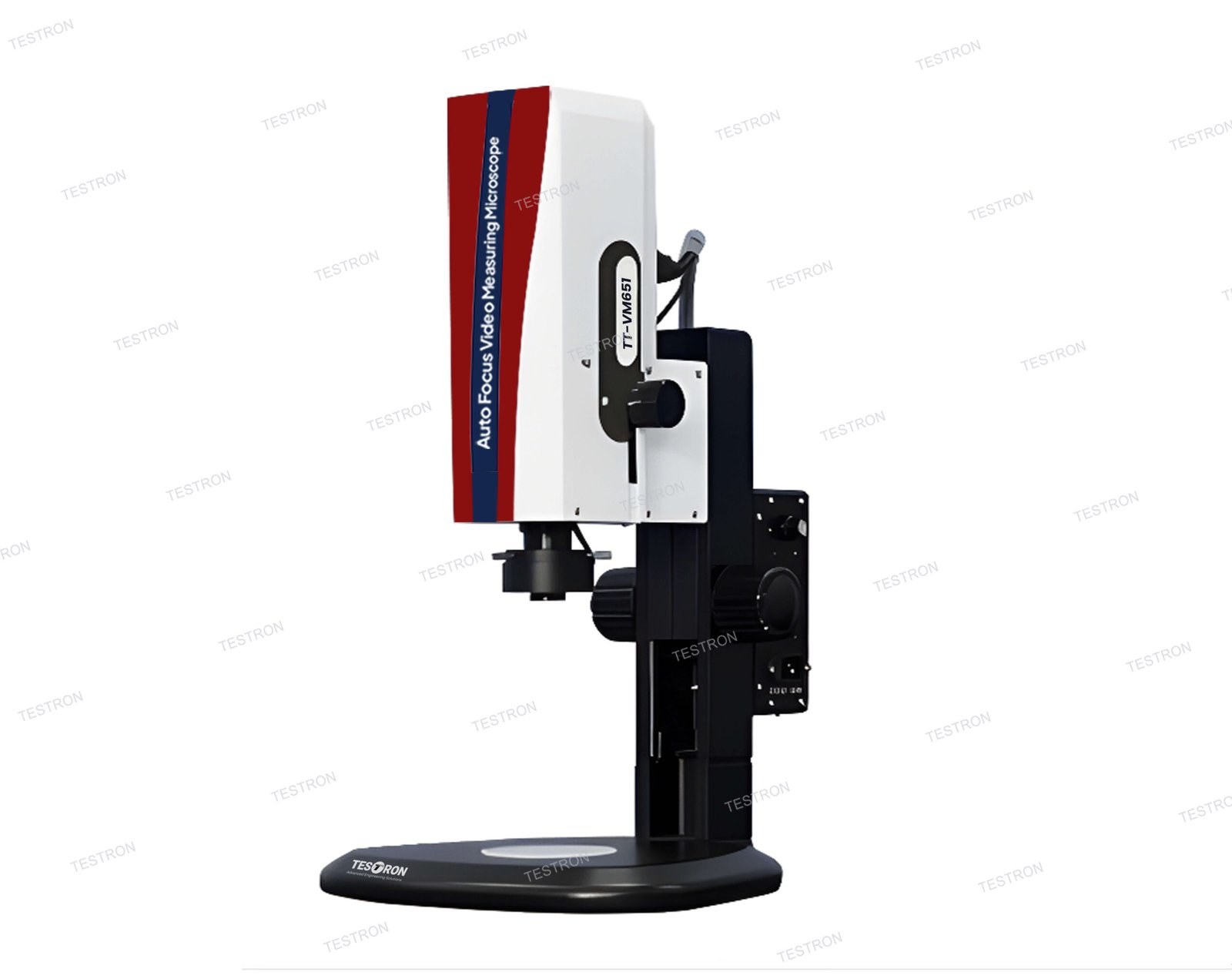

Product Characteristics of TT- VM651Plus Auto Focus Video Measuring Microscope
- Integral design, exquisite, fashion, generous;
- Built-in high-definition HDMI integrated camera, directly connected to HDMI display, can take pictures or videos;
- With high definition 0.7~4.5X parallel continue zoom lens, it is much more convenience and fast to switch objective magnification;
- With adjustable LED surface reflection illumination, is able to control brightness independently;
- With 2 mega pixel auto focus camera, no need to waste time for manual focus frequently;
- Multiple optional mobile control platform, ensure precision position measurement;
- With its own measurement function, it can measure linear dimensions such as distance, perimeter, area, angle, radian, width, height, and radius elements.
Technical Specification of TT- VM651Plus Auto Focus Video Measuring Microscope
| Product Name: | Auto Focus Video Measuring Microscope |
| Model: | TT- VM651Plus |
| Electronic Magnification: | 32X-206X (HDMI 16:9 24” Monitor） |
| Optical Objective: | 0.7X~4.5X Zoom Lens |
| Zoom ratio：6.5:1 | |
| 0.5X C-mount camera adapter mirror | |
| Camera Parameters: | 2MPixel（1920*1080） |
| Image Size:1/2.8” | |
| Frames：1080P@60fps | |
| Measuring Function: | Linear dimensions such as distance, perimeter, area, angle, radian, width, height, and radius elements are measured |
| Measurement Accuracy: | 0.02mm~0.003mm |
| Illumination: | Adjustable LED Surface Illumination |
| Microscope Stand: | Z-axis Travel: 100mm |
| Electrical Parameters: | AC90~240V/50~60HZ |
| Dimension: | 375*285*500 mm |
| Weight: | 6.5 Kg |
Technical Specification of TT- VM651Plus Auto Focus Video Measuring Microscope

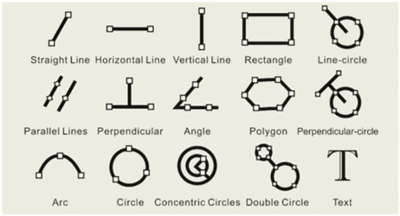

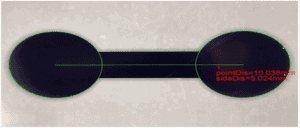

TT- VM651Plus can measure straight lines, angles, concentric circles, parallel lines, point-to-line distance, point and line to concentric circles, diameter, circumference and area, length and width of rectangle, and can calculate circumference and area. It can measure the polygon and calculate its area. All the corresponding measurement report can be output to U disk.

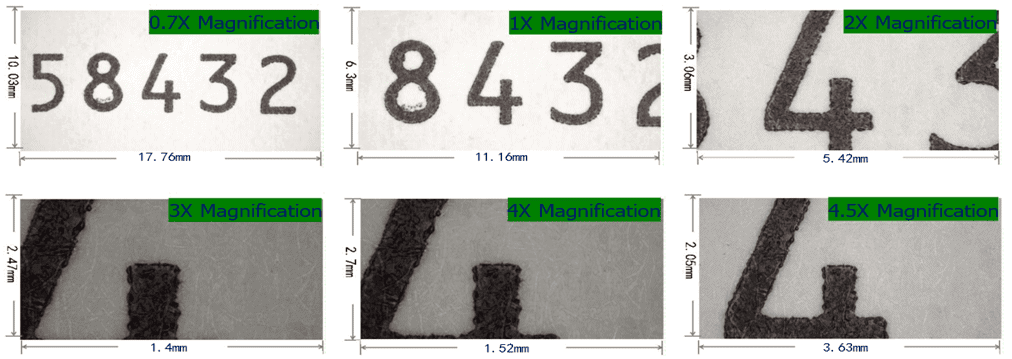

Field of View of TT- VM651Plus Auto Focus Video Measuring Microscope
 |  |
