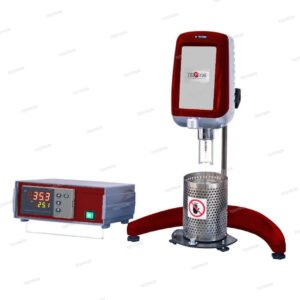

Application of TT-VM R Series Intelligent Touch-screen Rotary Viscometer
Applicable for measuring viscosity of various fluids such as paint, oil, ink, coatings etc.
Features of TT-VM R Series Intelligent Touch-screen Rotary Viscometer
- Anti-static shell and PC material lifting pole
- Build-in temperature probe RTD
- ARM chip processor: higher data processing speed
- New designed durable small axles
- Come with a gigabit ethernet interface to transfer data, reliable and quick
- Come with USB interface, support operate to save measurement through external disk U: single point, continuous and timed saving ways for option.
- Comes with RS 232 interface can print measuring data by mini printer with less labor.
- Calibrated by users themselves, temperature and viscosity correction factor are protected by password, also can be modified by user when they have reliable and accurate data
- Can measure viscosity by infinitely variable speed, input any speed, the instrument would display the max. Measuring range under different rotors. Convenient for user to choose suitable testing parameters.
- Convert freely between various viscosity units, dynamic viscosity converts kinematic viscosity automatically
- Accompanied with detailed operation instruction
Technical Specification of TT-VM R Series Intelligent Touch-screen Rotary Viscometer
| Item | TT-VM-R600 | TT-VM-R6 | TT-VM-R80 |
| Measurement range (Mpa.s) | 10-600,000 (600K) | 10-6,000,000 (6M) | 100-80,000,000 (80M) |
| R.P.M (per min) | 1-60 | 0.1-100 (infinitely variable speed) | |
| Rotor amount | No.1, No.2, No.3, No.4 are standard configuration (No.0 is optional) | ||
| Measurement accuracy | ±1.0% (of the full range) | ||
| Repeatability | ±0.5% | ||
| Power supply | Power Supply Adapter: 100~240V 50Hz | ||
Optional Accessories of TT-VM R Series Intelligent Touch-screen Rotary Viscometer
Low viscosity adapter (No. 0 rotor), small sample adapter (No. 21,27,28,29 rotors), mini single color printer, viscometer data collection and graphing software
