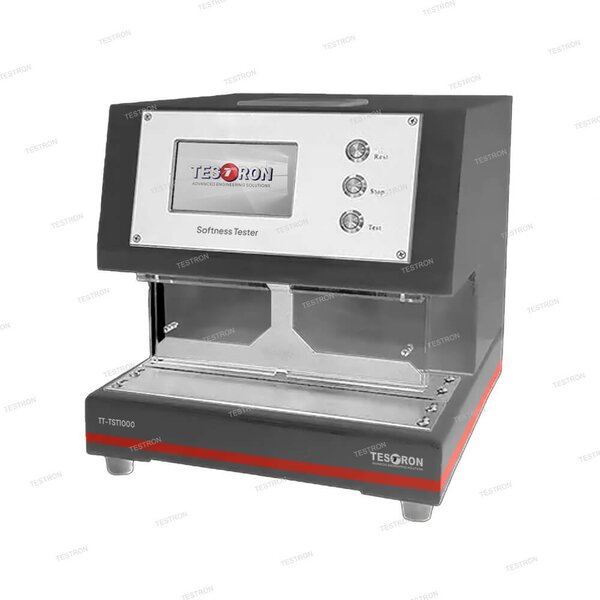

Application of TT-TST1000 Softness Tester
TESTRON TT-TST1000 Softness Tester is designed according to the US Handle-O-Meter instrument principle. It applies to the softness measurement for material such as toilet paper of all grades, tobacco sheet, fabric, etc.
Test Standards of TT-TST1000 Softness Tester
T498Su, GB/T8942, YC/T16, QB/T1060
Features of TT-TST1000 Softness Tester
- High precision
High precision load cells are used to ensure that the test accuracy error is within ±1%, better than ±3% standards
- Good repeatability
Controlled by stepper motor, the probe is accurate and stable in the process, and the measurement results are repeatable.
- Easy to use and easy to operate
High resolution color touch screen displayed in English, human-computer interface. Automatic test with statistical data handling. Using the micro printer, also can connect to the computer for operation.
- It is convenient for measurement and calibration
With special calibration weights and lever, facilitate measurement and calibration.
Technical Specifications of TT-TST1000 Softness Tester
| Model | TT-TST1000 |
| Measuring range | (10 ~1000) mN |
| Resolution | 1mN |
| Accuracy | ±0.5% |
| Test speed | 1.2±0.24mm/s |
| Depth | 8mm |
| Width | 5mm, 6.35mm, 10mm, 20mm |
| Parallelism error | ≤0.05mm |
| Dimension | 323×281×302mm |
| Weight | 15kg |
| Power | AC110~240V |
