Applications of TT- TRI1200 Intelligent CNC Video Measuring Machine
The TT-TRI1200 is extensively utilized across various industries, including:-
- Pad Glass Manufacturing
- LCD Module Production
- Solar Energy Sector
- Aviation Industry
- New Energy Technologies
- Insulation Material Fabrication
Its adaptability makes it suitable for measuring complex components in these fields.
Key Characteristics of the TT-TRI1200 Intelligent CNC Video Measuring Machine
- Versatile Accessory Options:- The TT-TRI1200 supports a range of accessories, including touch probes , laser sensors, white light sensors, probe racks, and laser profilers. This flexibility allows users to tailor the machine to diverse measurement tasks.
- Robust Structural Integrity:- Incorporating finite element analysis during its design, the TT-TRI1200 ensures a highly rigid and precise mechanical structure. Its closed frame movable bridge type design offers simplicity, high load capacity, and optimal motion performance. The machine’s base is constructed from 000-grade granite, providing exceptional rigidity, corrosion resistance , and stability.
- Enhanced Flexibility and Precision:- The work stage can accommodate multiple product fixturing solutions, and various lens combinations are available to meet different measurement requirements. A fully closed-loop motion control system guarantees superior movement and positioning performance.

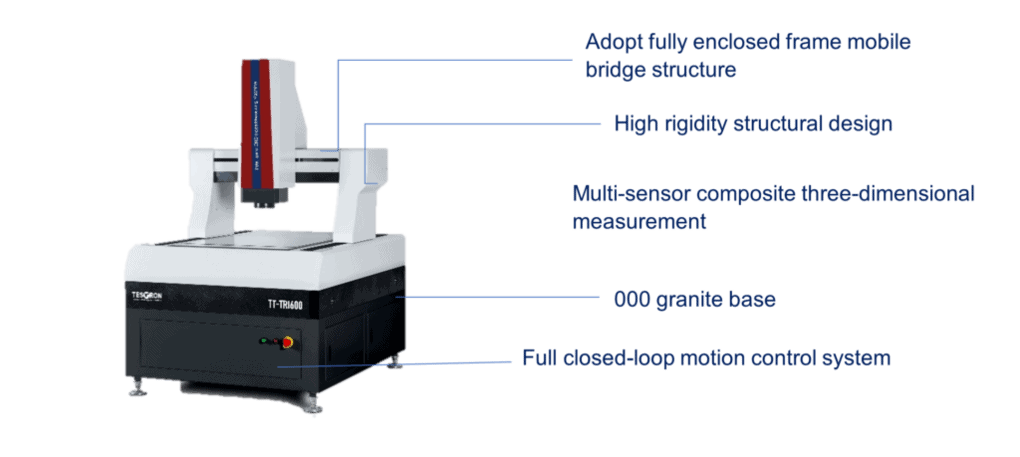

Features of TT- TRI1200 Intelligent CNC Video Measuring Machine
Wide range of accessories
- TT-TRI1200 supports multiple options of accessories, including touch probe, laser sensor, white light sensor, probe rack and laser profiler. It offers more solutions for users of different measuring tasks.
High rigidity
- Finite elements analysis is introduced in the designing process of the TT-TRI1200, ensures high rigidity and accurate mechanical structure.
- The machine base uses a closed frame movable bridge type structure, which is simple and offers high loading capability and the best motion performance.
- 000 grade granite machine base offers high rigidity, corrosion, resistance and high stability.
Flexibility and high accuracy
- The work stage is able to preset multiple products fixturing solution, also multiple lens combination is for option, satisfying different measuring requirement from different customers. Full close loop motion control system ensures the best movement and positioning performance.
Technical Specifications of TT- TRI1200 Intelligent CNC Video Measuring Machine
| Model | TT-TRI1200 | |
| Dimension (mm) (x/y/z) | 1700/2200/1800 | |
| Measuring Range (mm) (x/y/z) | 1000×1200×200 | |
| Measuring Accuracy (µ/m) | 3+L/200 | |
| Repeatability (µ/m) | 4µm | |
| Weight (Kg) | 3500kg | |
|
Image & measuring | CCD | 1.3M pixel HD GIGA digital camera (5M pixel HD digital camera optional) |
| Lens | Fully automatic zoom lens 1~10X | |
| Magnification | 28-180X (For reference only. With different camera and lens the magnification will be different) | |
| Field of view | 8.5~1.3mm (For reference only. With different camera and lens combination, the value will be different) | |
| Working distance | 80mm | |
| Linear scale resolution | 0.5µm (0.1 µm optional) | |
| Driving System | CNC control, AC fully closed loop servo motor drive, Joystick control, mouse/keyboard control | |
| Illumination | Programmable LED8 partition ring surface light, LED bottom parallel light (optional: 40 partition ring light, coaxial light, adjustable color light source) | |
