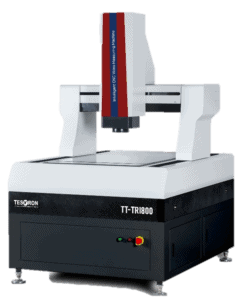

TT-TRI1000 Intelligent CNC Video Measuring Machine

The TESTRON TT-TRI1000 Intelligent CNC Video Measuring Machine is a fully automated, high-performance CNC video measuring system designed to deliver fast, reliable, and repeatable measurements. With cutting-edge features and robust structural design, it ensures precise geometric inspection of intricate components in industries that demand extreme accuracy.

Engineered with advanced motion control systems, multi-sensor compatibility, and a granite-based structure , this video measuring machine is ideal for users seeking accurate measurements with minimal human intervention. It combines optical, laser, and tactile measurement technologies to suit a wide range of quality inspection tasks.

Applications of TT-TRI1000 Intelligent CNC Video Measuring Machine

The TT-TRI1000 is widely used in quality inspection and non-contact dimensional measurement across multiple high-tech and precision-driven industries, including:-

• Pad Glass Manufacturing
• LCD Module Assembly
• Solar Panel Production
• Aerospace & Aviation Components
• New Energy Equipment
• Insulation & Dielectric Material Testing

Its adaptability and precision make it a valuable asset for metrology labs, automated inspection lines, and quality control departments.

Features of TT-TRI1000 Intelligent CNC Video Measuring Machine

• Multi-Sensor Support

  Compatible with various high-precision accessories including:

  • Touch probes
  • Laser sensors
  • White light sensors
  • Laser profilers
  • Probe racks

This allows flexible configuration for diverse metrology tasks

• Rigid and Durable Structure
  •  Designed using finite element analysis (FEA) for superior mechanical integrity.
  • Closed-frame movable bridge-type structure for optimal load handling and motion stability.
  • Constructed with 000 grade granite base offering excellent rigidity, thermal stability, and corrosion resistance.
• High Accuracy & Repeatability
  • Equipped with full closed loop motion control to ensure precise positioning and repeatable measurement performance.
  • The work stage supports multi-product fixturing and multiple lens configurations to meet varied application needs.
  • Ideal for high volume inspection environments requiring fast throughput.

• User Friendly Software Interface
  Seamless integration with advanced image processing and analysis software enhances user experience and speeds up inspection routines.

Wide range of accessories

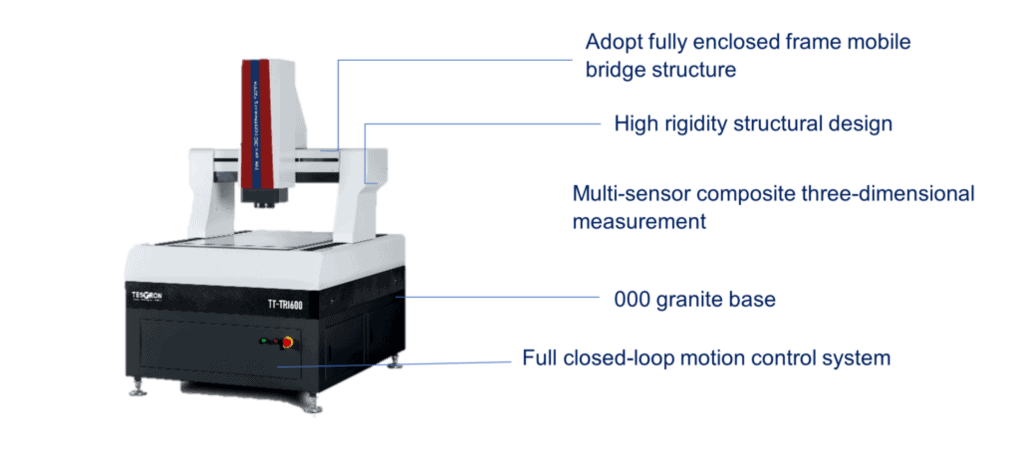

• TT-TRI1000 supports multiple options of accessories, including touch probe, laser sensor, white light sensor, probe rack and laser profiler. It offers more solutions for users of different measuring tasks.

High rigidity

• Finite elements analysis is introduced in the designing process of the TT-TRI1000, ensures high rigidity and accurate mechanical structure.
• The machine base uses a closed frame movable bridge type structure, which is simple and offers high loading capability and the best motion performance.
• 000 grade granite machine base offers high rigidity, corrosion, resistance and high stability.

Flexibility and high accuracy

• The work stage is able to preset multiple products fixturing solution, also multiple lens combination is for option, satisfying different measuring requirement from different customers. Full close loop motion control system ensures the best movement and positioning performance.

Technical Specifications of TT-TRI1000 Intelligent CNC Video Measuring Machine
