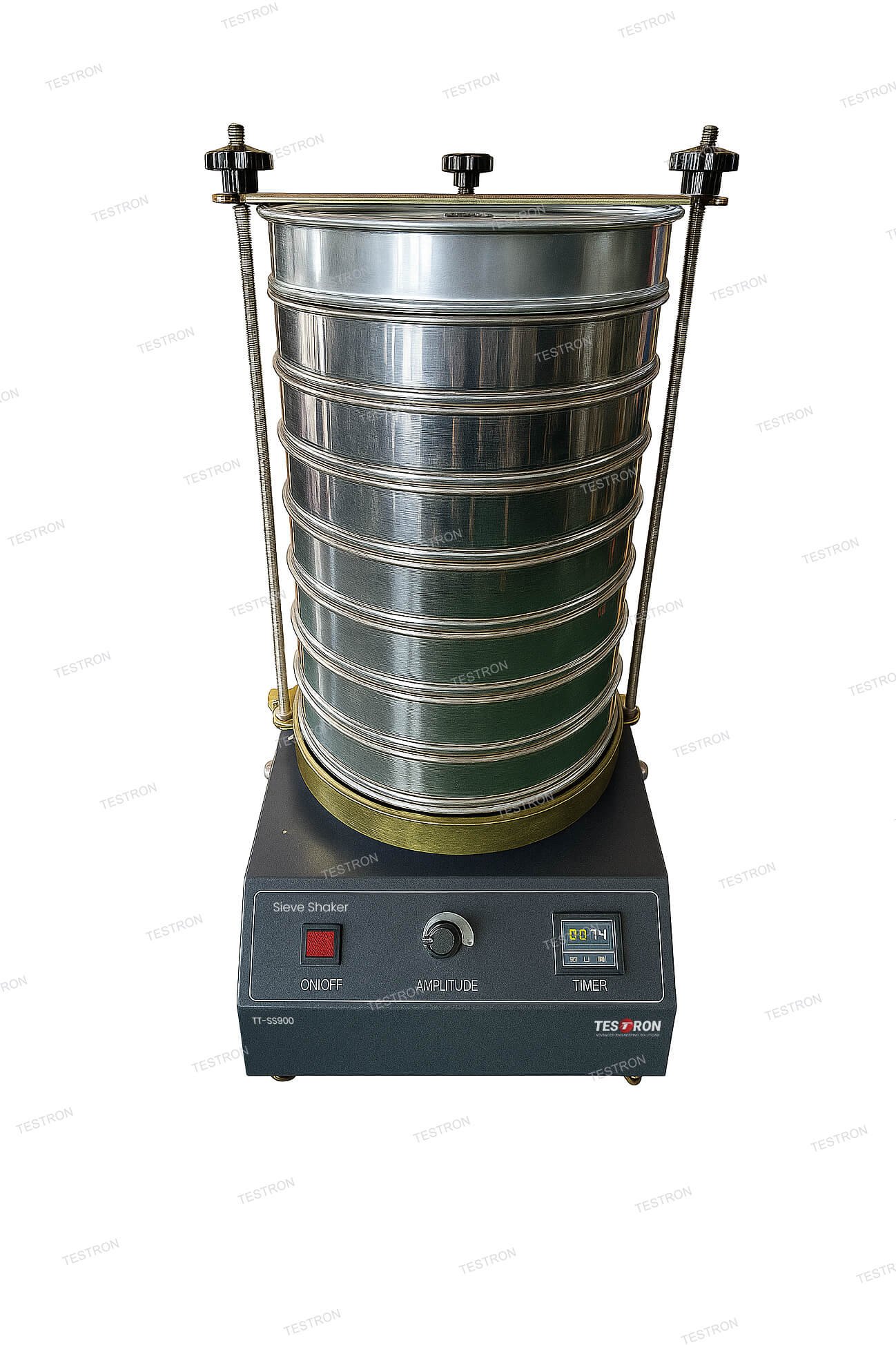

Application of TT-SS900 Sieve Shaker
It is designed and applied to article analysis in the fields of pharmacy, metallurgy, foods, cosmetics, grain etc.
Features of TT-SS900 Sieve Shaker
- Designed and developed with the latest laboratory automatic screen.
- Convenient operation, no rotary component.
- Electronic controlled amplitude and frequency
- Performance index are equally manufactured by German FRITSCH
- Compared with traditional manual screen, it greatly reduces labour intensity of users and raises work efficiency.
Technical Specifications of TT-SS900 Sieve Shaker
| Model | TT-SS900 |
| Layers | 1-9 layers |
| Shaking method | Up and Down |
| Sieve size | Ø200 x 50 mm (9pieces) or Ø300 x 75mm (7pieces) |
| Diameter | 0.25-3mm |
| Noise | ≤50dB |
| Input quantity | ≤200 |
| Amplitude | ≤5mm |
| Speed | 1450r/m |
| Voltage | 220V 50Hz |
| Power | 0.125 kw |
| Sieves frame | 430 x 430 x 750 mm |
| Weight | 40Kg |
