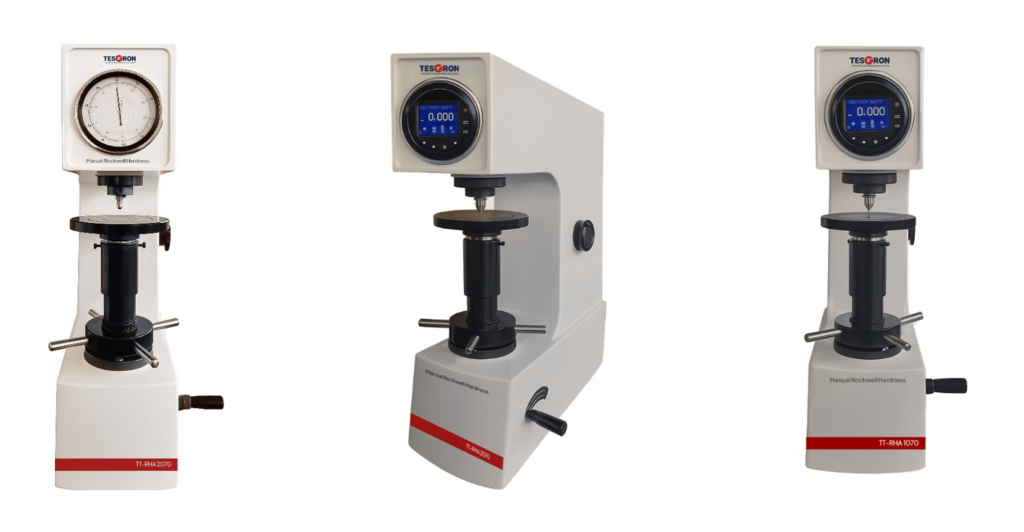

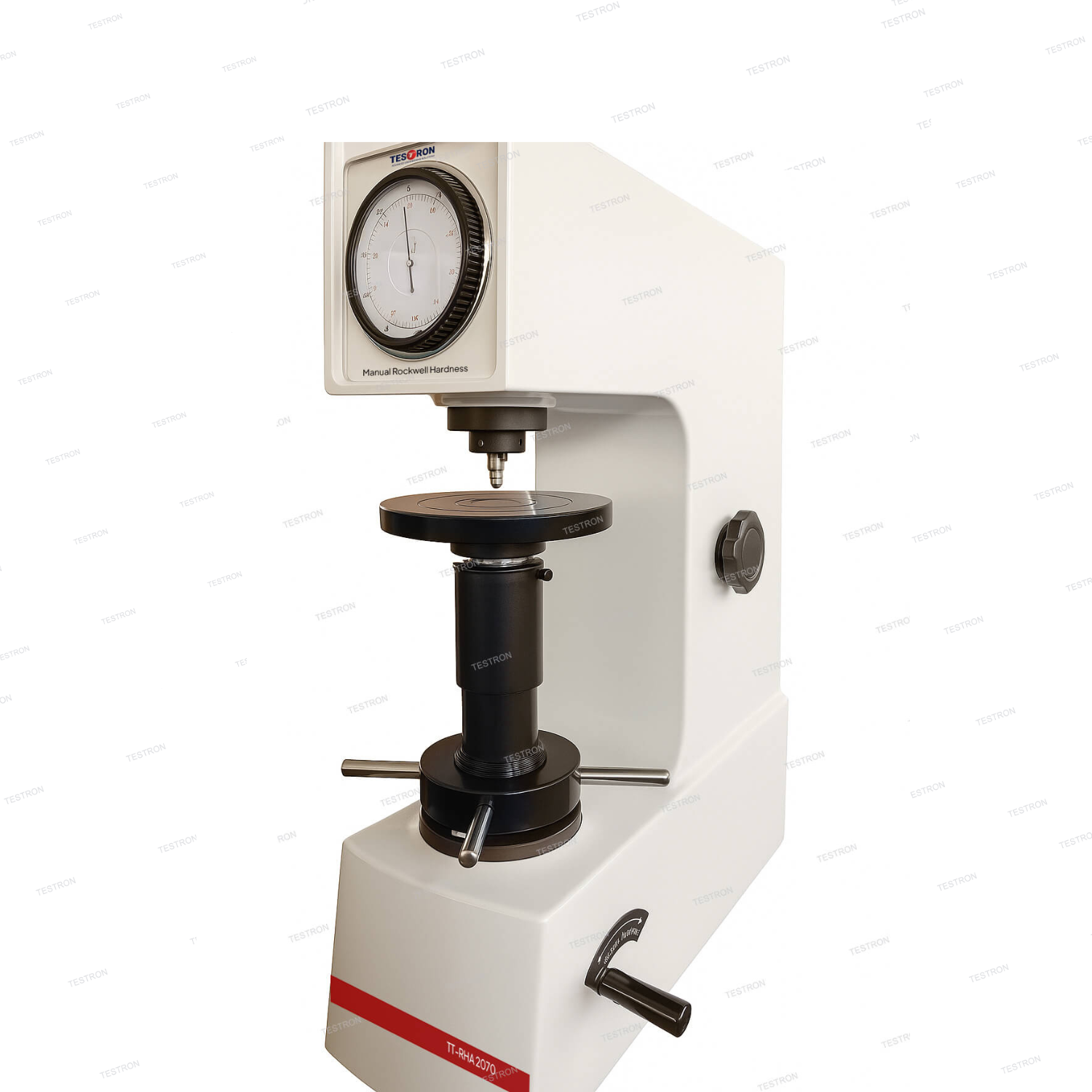

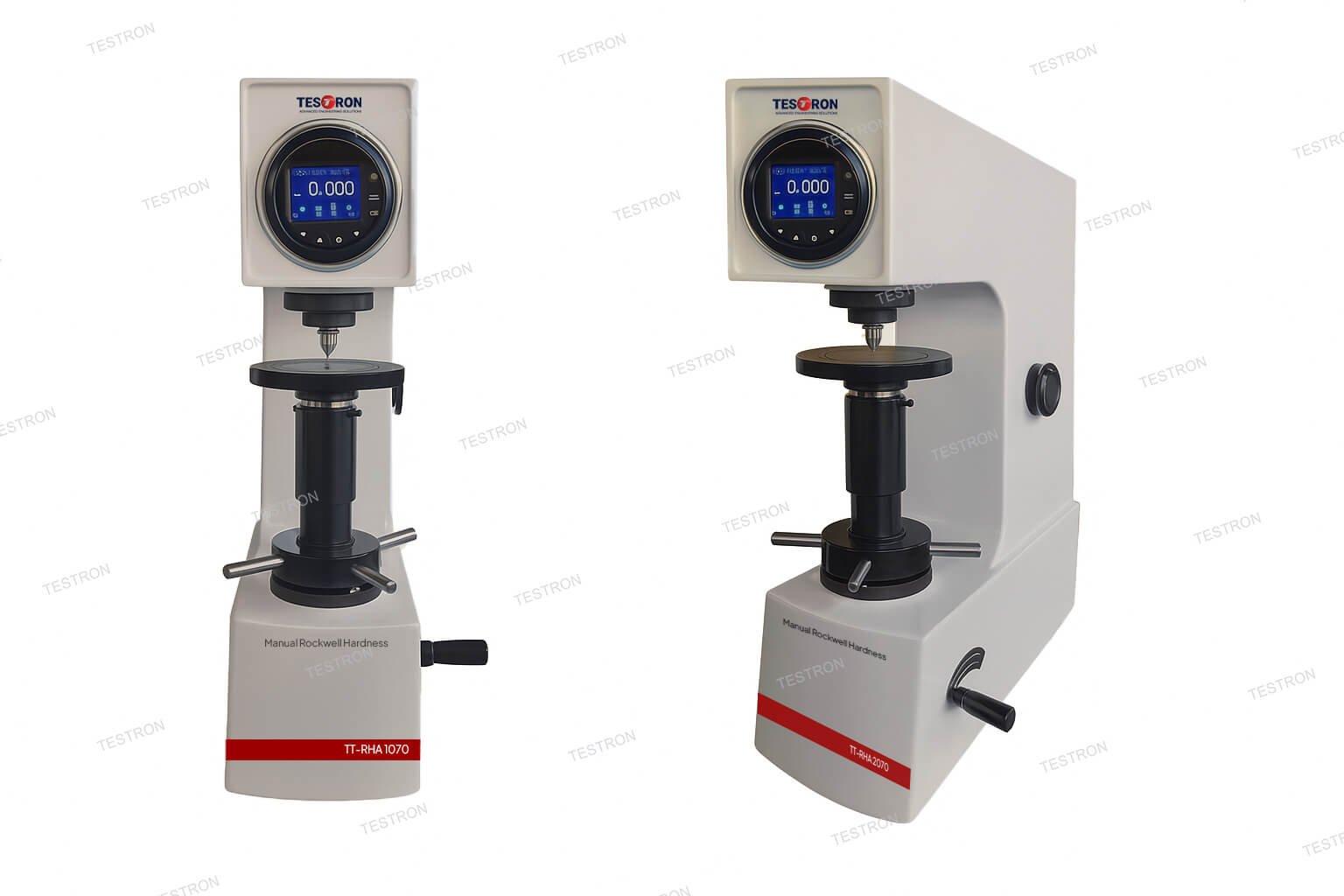

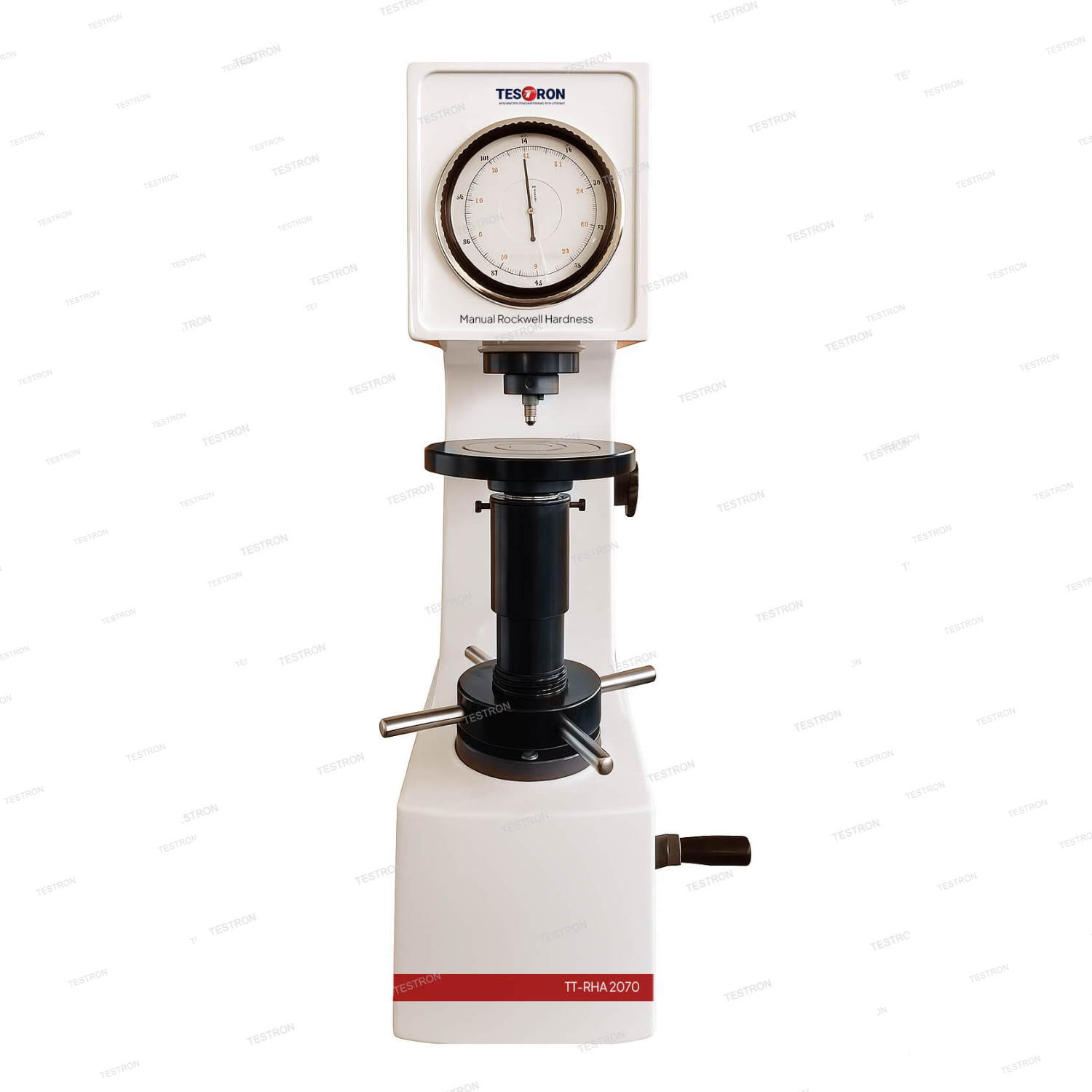

Application of TT-RHA Series Manual Rockwell Hardness Tester
It is a widely used method for evaluating the hardness of various materials including ferrous metals, non-ferrous metals, and non-metallic materials due to its simplicity, speed, and versatility.
Features of TT-RHA Series Manual Rockwell Hardness Tester
- Rockwell hardness measurements for heat treatment such as quenching and tempering; curved surface measurements are stable and reliable.
- Dial gauge directly reads hardness value of HRA, HRB and HRC scales.
- Friction-free spindle ensures test force accuracy.
- Precision hydraulic buffer ensures smooth loading and unloading.
- Independent suspended weights and core spindle system make the hardness value more accurate and stable.
- Pure mechanical structure, no circuit part required, economical and practical.
Technical Specifications of TT-RHA Series Manual Rockwell Hardness Tester
| Model | TT-RHA2070 | TT-RHA1070 | |||
| Measuring range | 20-95HRA,10-100HRB, 20-70HRC
| ||||
| Initial Test Force | 10kgf (98.7N) | ||||
| Total test force | 588.4N, 980.7N, 1471N (60, 100, 150kgf) | ||||
| Measuring scale | HRA, HRB, HRC scales can be read directly on the dial | ||||
| Optional scales | HRD, HRF, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV | ||||
| Optional scales Maximum height of specimen allowed | 175 mm
| ||||
| Distance from center of indenter to machine wall
| 135 mm
| ||||
| Indenter type | Rockwell diamond indenter, ф1.588mm steel ball indenter | ||||
| Test force application method | Manual | ||||
| Hardness reading | Dial reading | Digital reading | |||
| Hardness resolution | 0.5HR | 0.1HR | |||
| Over all dimensions | 450*230*540mm | ||||
| Packing size | 530x400x770mm | ||||
| Weight | 80kg | ||||
Standard Configuration of TT-RHA Series Manual Rockwell Hardness Tester
| Items | Qty | ||
| Main machine | 1 | ||
| Φ1.588 steel ball indenter | 1 | ||
| Small flat workbench | 1 | ||
| Rockwell hardness block: 60-70HRC | 1 | ||
| Rockwell hardness block: 20-30HRC | 1 | ||
| Screwdriver | 1 | ||
| 120° diamond indenter | 1 | ||
| Large flat working table | 1 | ||
| V-shaped workbench | 1 | ||
| Rockwell hardness block 80-100HRB | 1 | ||
| Operating Manual | 1 | ||
| Warranty Card | 1 | ||
| Training Certificate | 1 | ||
