TT-PT Series Pilling Tester (Random Tumble)

TESTRON TT‑PT002 is a random tumble pilling tester compliant with ASTM D3512, designed to evaluate fabric resistance to pilling and fuzzing. It features a cork-lined chamber, high-speed impeller, and compressed air system to ensure consistent tumbling and accurate simulation of real-use wear conditions.

Inquiry Now

Categories: Material Testing, Textile Testing

Description

Test Principle of TT-PT Series Pilling Tester (Random Tumble)

Under the rotation of stainless steel impeller blades within an independent aluminum alloy test chamber, the fabric specimens are subjected to continuous random tumbling and friction against a cork-lined surface. This controlled agitation simulates real-use wear conditions, enabling accurate evaluation of the fabric’s pilling and fuzzing characteristics.

Test Standards of TT-PT Series Pilling Tester (Random Tumble)

ASTM D3512, ASTM D1375, ISO 12945.3

Application of TT-PT Series Pilling Tester (Random Tumble)

It is used for woven fabric, knitted fabric, fleece fabric.

Features of TT-PT Series Pilling Tester (Random Tumble)

Available in 2 or 4 independent test chambers, enabling simultaneous multi-sample testing
Equipped with SUS316 stainless steel impeller, fully compliant with ASTM D3512 requirements
Integrated compressed air injection system to enhance tumbling action and ensure consistent test conditions
Built-in interior lighting with a high-transparency viewing window for improved observation during testing

Technical Specifications of TT-PT Series Pilling Tester (Random Tumble)

Model	TT-PT002	TT-PT004
Test chambers	2	4
Roller size	146±1 x 152±1 mm
Cork lining size (LxWxH)	452±1 x 146±1 x 1.5±1 mm
Stirring rod size	L=121±1mm
Rotating speed	1200±1 rpm
Compressed air	0.014 – 0.021 Mpa
Power supply	AC220V 50/60Hz
Dimension (LxWxH)	480400680mm	480400680mm
Weight	60kg	80kg

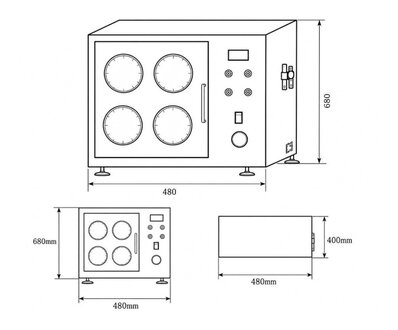

Product Structure of TT-PT Series Pilling Tester (Random Tumble)

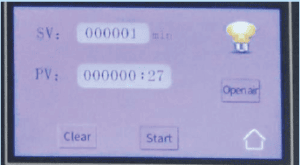

Software Interface of TT-PT Series Pilling Tester (Random Tumble)

When the instrument is not operating, select the SV field to set the time within the range of 1–999,999 minutes.
The Clear key is used to reset the count or time.
The Open Air key is used in standby mode to control the air valve (open/close).
The Light key is used to turn the internal light ON/OFF.
After completing test preparation, press the Start button to begin operation; press it again (Stop function) to stop the instrument
