Test Standard of TT-PCCT Petroleum Copper Corrosion Tester
ASTM D130
Application of TT-PCCT Petroleum Copper Corrosion Tester
It is widely used in petroleum refineries and fuel quality control processes to determine the corrosiveness of petroleum products and related materials such as fuels, lubricants, and solvents when in contact with copper.
Features of TT-PCCT Petroleum Copper Corrosion Tester
- Stainless steel constant temperature bath is corrosion resistant and oxidation resistant.
- Quincunx – shaped stirring blade, stirring effect is very good.
- 4 holes can hold 12 test tubes or hang 2 test shells and 6 test tubes at the same time.
- High temperature control precision, and with PID auto-tuning function.
- Equipped with constant temperature heater and auxiliary heater for quick heating.
Technical Specification of TT-PCCT Petroleum Copper Corrosion Tester
Model | TT-PCCT Petroleum Copper Corrosion Tester |
Heating Power | Room temperature ~100℃ |
Temperature control Accuracy | ±1℃ |
Heater Power | |
Temperature control heating | 1000W |
Auxiliary heating | 800W |
Stirring motor power | 15W |
Number of bath cover | 4 |
External dimension | 360X270X490 mm |
Weight | 15Kgs |
Standard Configuration o TT-PCCT Petroleum Copper Corrosion Tester
Items | Qty |
Main Machine | 1 set |
Fuse Φ6×30 10A | 1 pc |
Sensor, Viewing test tube | 1 pc each |

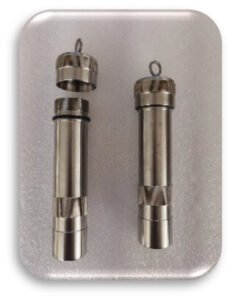

Roof latch, Pressure vessel, Cover of bath | 2 pcs each |
Test tube carrier | 4 pcs |
Copper strips | 2 pcs |
Thermometer -20~102℃ | 1 pc |
Test tubes, Test tubes plug | 12 pcs each |
Pictures
![]() |
![]() |
![]() |
![]() |
|
![]() |
![]() |
![]() |
![]() |
![]() |
