Test Standard of TT-OSGT Automatic Oxidation Stability Gas Tester (Induction Period Method)
ASTM D525

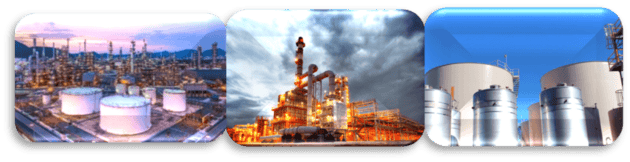

Application of TT-OSGT Automatic Oxidation Stability Gas Tester (Induction Period Method)
It is widely used in petroleum refineries, quality control laboratories, fuel blending facilities, and research institutions. It helps evaluate the oxidation resistance of gasoline, ensuring compliance with fuel stability standards and predicting storage performance. The results are essential for monitoring fuel quality during production, distribution, and storage.
Features of TT-OSGT Automatic Oxidation Stability Gas Tester (Induction Period Method)
- Embedded computer, 10.4-inch LCD display, full English operating system.
- To be used in different regions, different atmosphere pressure caused different boiling points, and the metal bath was adopted. And it has the advantages of high heating speed and high precision.
- The instrument uses the solenoid valve to complete the oxygen bomb charging and discharging, so that the operation process is simple and easy, the solenoid valve connection adopts the hard connection mode, the largest limits avoid system leaks.
- During the test, the pressure curve and pressure drop curve are displayed. After the test is completed, the data can be saved.
- The oxygen bomb is sealed with advanced hand rotation technology, which can guarantee the good sealing performance of the oxygen bomb without special tools.
- The oxygen bomb single rod is equipped with safety diaphragm to ensure the safety of the test
Technical Specification of TT-OSGT Automatic Oxidation Stability Gas Tester (Induction Period Method)
| Model | TT-OSGT Automatic Oxidation Stability Gas Tester |
| Measuring range of pressure gauge | 0~1.6Mpa |
| Accuracy of constant temperature | ±0.5℃ |
| Total power | 1300W |
| External dimensions | 570 X 390 X 420 (mm) |
| Weight | 30Kgs |

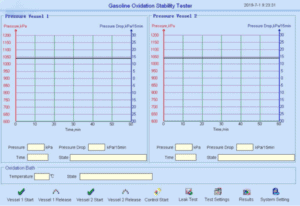

Software Interface of TT-OSGT Automatic Oxidation Stability Gas Tester (Induction Period Method)
 |  |  |
| The main interface can display the information of two groups of samples at the same time, and it is equipped with a graph to present the data in the experimental process. | Software Interface of TT-OSGT Automatic Oxidation Stability Gas Tester (Induction Period Method) | The complete detailed test results can be automatically saved and printed according to user requirements. |
Accessories of TT-OSGT Automatic Oxidation Stability Gas Tester (Induction Period Method)
| Items | Qty |
| Oxygen bomb | 2 |
| Seal ring of oxygen bomb | 2 |
| Thermometer 95℃～103℃ | 1 |
| Specimen cup (Included: cup lid) | 2 |
| Bath lid | 2 |
| Temperature correction device | 1 |
| O-ring (spare part, for temperature correction device) | 1 |
| Temperature measurement instrument | 1 |
| Mainboard battery | 1 |
| Gas cylinder connector | 1 |
| Fuse wire Φ6×30 10A | 1 |
| Mouse, keyboard | 1 each |
| Waste liquid discharge pipe (1m) Oxygen tube (2m) | 1 each |
