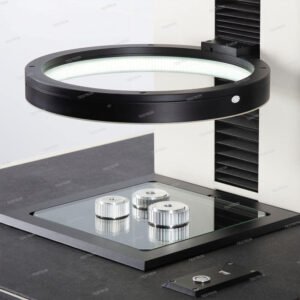

TT-ODM190 Instant Measurement ODM Video Measuring Machine

TT-ODM190 Instant Measurement ODM Video Measuring Machine

TESTRON TT-ODM190 Optical Dimension Measuring System is a revolutionary image measurement technology. Unlike traditional 2D image measuring instruments, it no longer requires a linear transducer displacement sensor for accuracy. There is also no need to enlarge the prod uct using a high magnification lens to ensure measurement precision, nor is it necessary to move the workbench to obtain coordinate data from different positions on the workpiece.

TT-ODM190 utilizes a telecentric lens with low magnification, a large field-of-view, and a high depth-of-field. Coupled with a 20-megapixel high-definition digital camera, it provides a high-definition image of the entire part in a single view. Combined with sub-pixel software algorithms, users can quickly obtain accurate dimensional measurement results.

TT-ODM190 has larger lens and larger field of view, which can measure larger workpieces to improve measurement efficiency and productivity

Inquiry Now

Categories: Instant Measurement ODMS Series, Video Measuring System

Description

Application of TT-ODM190 Instant Measurement ODM Video Measuring Machine

It is widely used in machinery, electronics, molds, injection molding, metals, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, terminals, mobile phones, household appliances, printed circuit boards, medical equipment, watches, and milling tools, etc.

Advantages of TT-ODM190 Instant Measurement ODM Video Measuring Machine

Parts can be placed arbitrarily without additional fixturing or positioning.
Rapid measurement, up to 512 dimensions can be measured simultaneously.
Batch measurement, up to 99 workpieces can be placed at one time.
With just one click, the user can get accurate measurement results and eliminate human errors.
High depth-of-field lens, even for products with segment difference, user can obtain accurate focusing at one time, improving efficiency.
Automatic identification of workpiece features matched, to ensure measurement repeatability.
Easy programming and setting, even operators without experience in measuring operation can get started quickly.
Sub-pixel image processing technology offers higher measurement accuracy.
Rapid measurement report output and data statistics.
LED indicators included users easily judge the measuring result OK/NG.
The telecentric parallel contour light is used to minimize the deformation of the image and adapt to more diversified workpiece measurement applications.
Optional dual-magnification lens, offers switchable magnification and FOV, taking account of the overall and detailed measurements simultaneously.
Fast access to automation line.

Technical Specifications of TT-ODM190 Instant Measurement ODM Video Measuring Machine

Model	TT-ODM190
Measuring Range (x/y/z)	175/116/100
Dimension (mm) (x/y/z)	650/1010/1750
Weight (KG)	560
Control mode	Z axis motorized
Lens	Single magnification telecentric large-FOV lens
FOV (mm)	175×116
Camera	HIKVISON 20M Pixel digital camera
Measuring Accuracy	≤ 3 µm
Repeatability	≤ 3 µm
Surface light	LED ring light
Contour light	Telecentric LED light/ Flat LED light
Software	FlashPro/Ins-F
