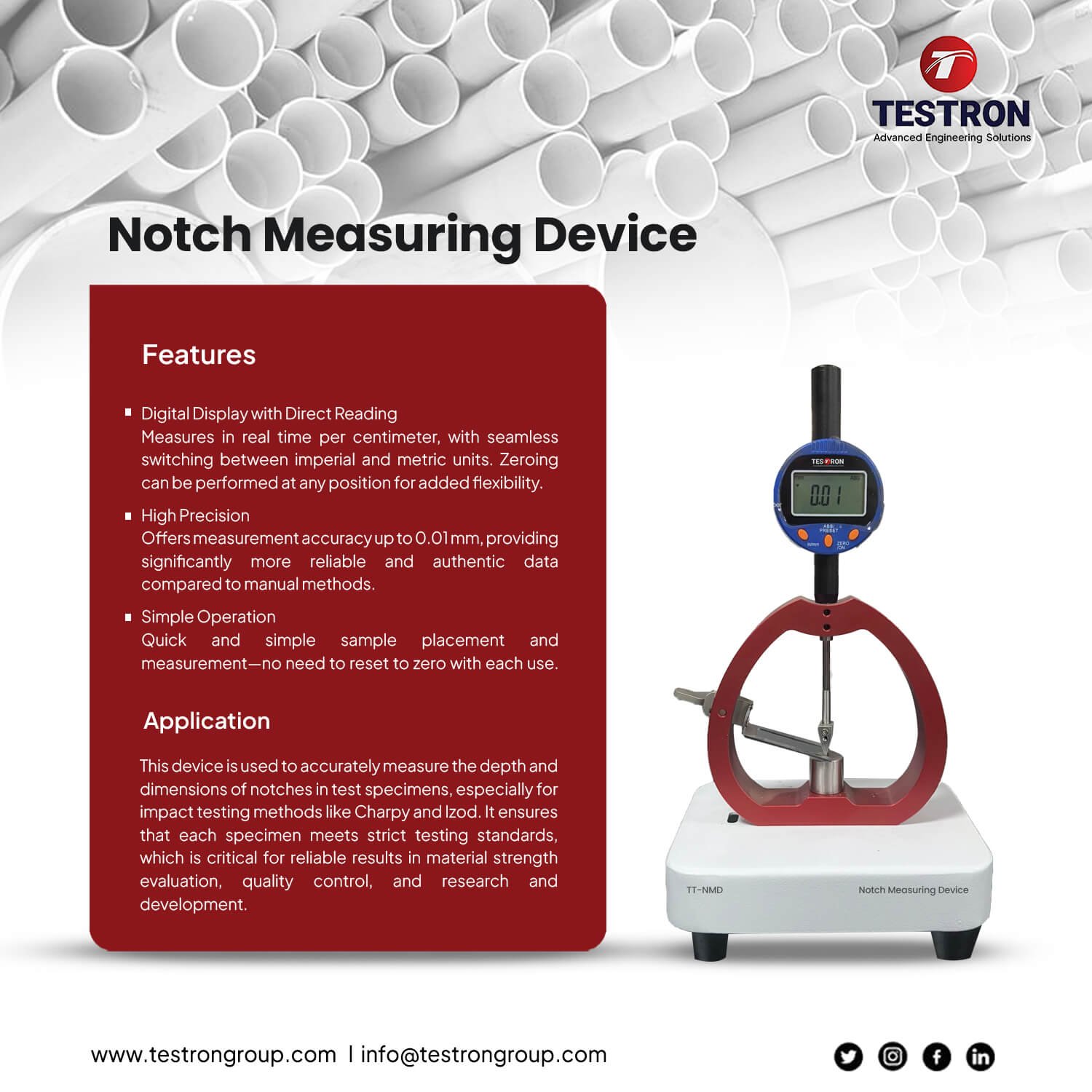

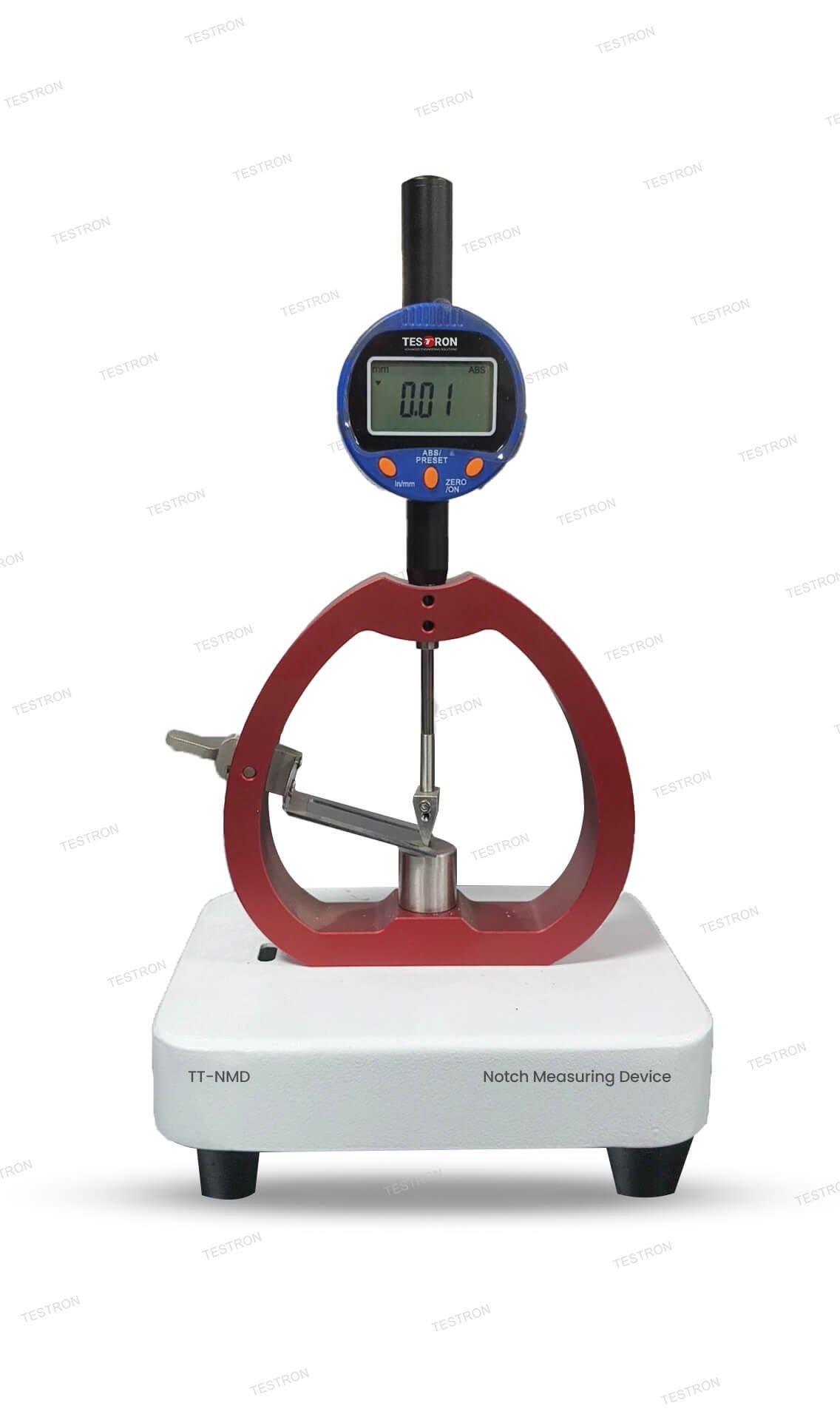

Application of TT-NMD Notch Measuring Device
This device is used to accurately measure the depth and dimensions of notches in test specimens, especially for impact testing methods like Charpy and Izod. It ensures that each specimen meets strict testing standards, which is critical for reliable results in material strength evaluation, quality control, and research and development.
Features of TT-NMD Notch Measuring Device
- Digital Display with Direct Reading
Measures in real time per centimeter, with seamless switching between imperial and metric units. Zeroing can be performed at any position for added flexibility.
- High Precision
Offers measurement accuracy up to 0.01 mm, providing significantly more reliable and authentic data compared to manual methods.
- Simple Operation
Quick and simple sample placement and measurement—no need to reset to zero with each use.
Technical Specification of TT-NMD Notch Measuring Device
| Model | TT-NMD |
| Measuring range | 0-15mm |
| Measuring Accuracy | ±0.01mm |
| Measuring Pressure | About 1.5n |
| Notch Angle | 35° |
| Bottom R angle | Less than 0.2mm |
| Power Supply | Button battery 3V |
