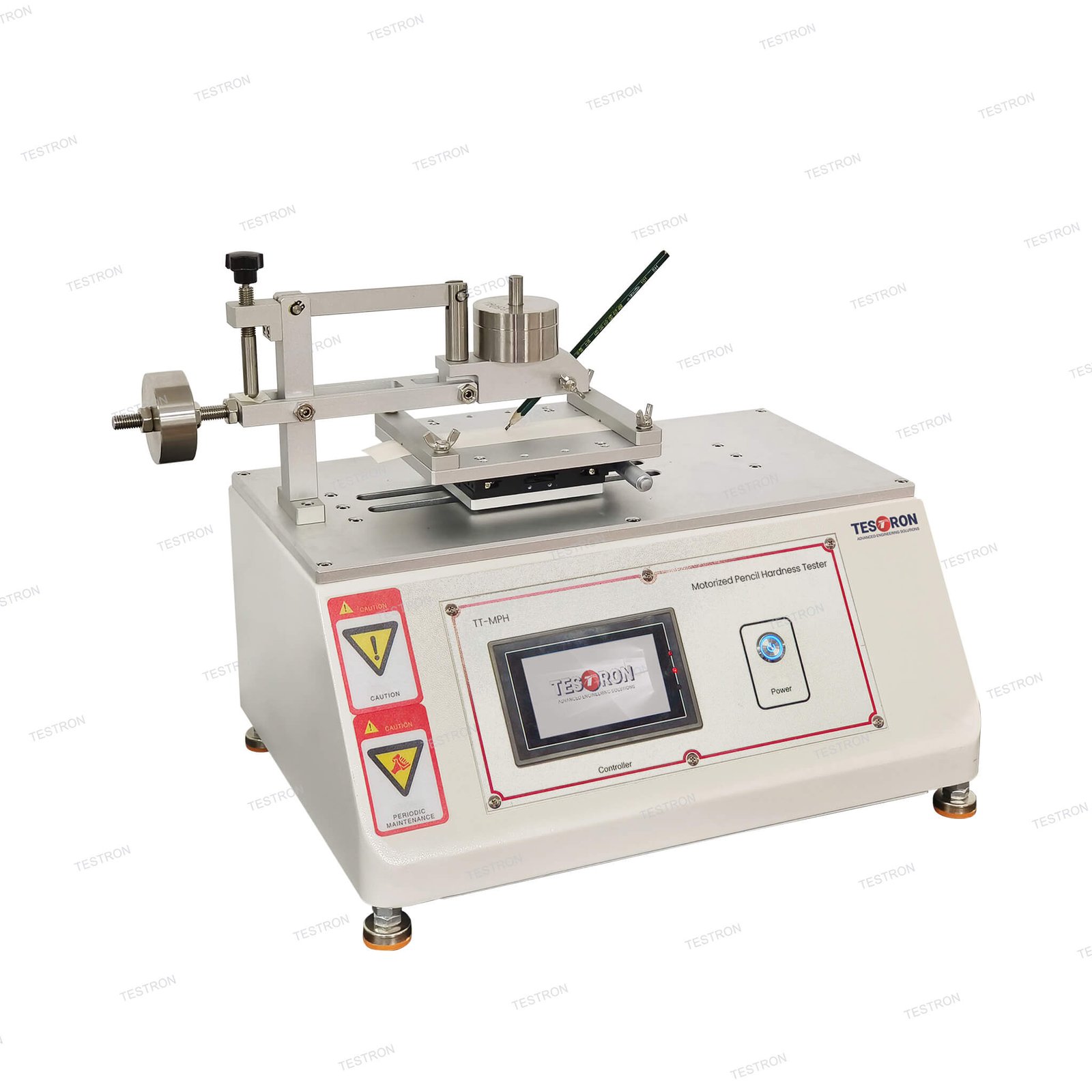

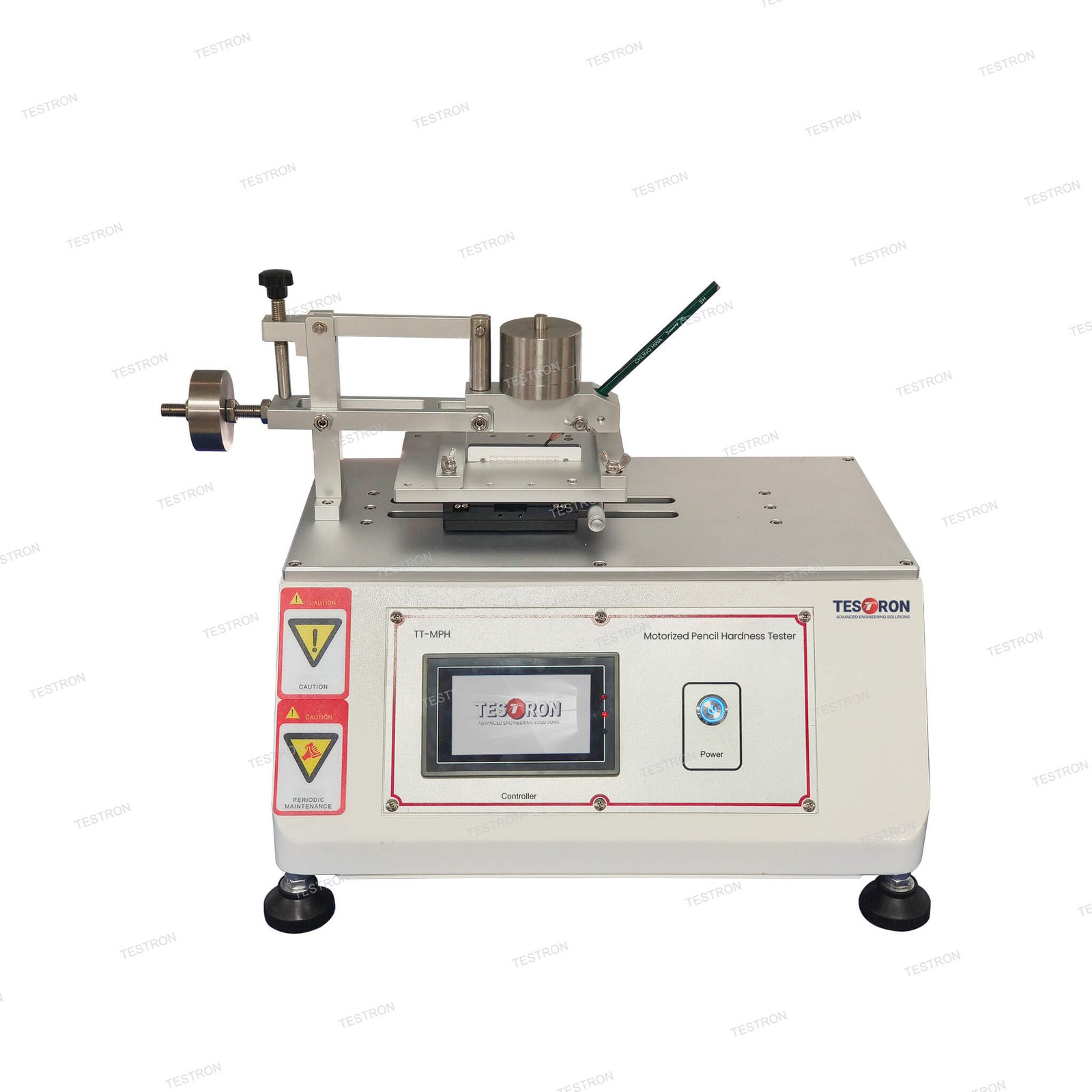

TT-MPH Motorized Pencil Hardness Tester

TESTRON TT-MPH Motorized Pencil Hardness Tester is specially designed for hardness testing of various finished coating products, such as mobile phone housings, MP3/MP4 casings, laptop covers, and other household and digital product enclosures. The tester is electrically driven, powered by an AC variable-speed motor for left-right movement, ensuring low noise and stable operation.

Test Standards of TT-MPH Motorized Pencil Hardness Tester

ASTM D333, ASTM D3363, ISO15184, BS3900-E19, and ECCA-t4/1

Application of TT-MPH Motorized Pencil Hardness Tester

It is commonly applied in industries such as paints and coatings, plastics, electronics, automotive, furniture, and metal finishing to ensure product durability and quality.

Features of TT-MPH Motorized Pencil Hardness Tester

Hardness of a coating film is tested by scratching its surface with graded hardness pencils.
Pencil is fixed at a 45° angle so that its lead tip contacts the surface of the coating film, with an appropriate load applied.
Sample platform moves at a constant speed (as per JIS standard, 0.5 mm/sec), allowing the coating surface to pass under the pencil tip.
Hardest pencil that does not cause damage (scratch) to the coating film is regarded as the coating film hardness.

Technical Specifications of TT-MPH Motorized Pencil Hardness Tester

Model	TT-MPH
Test Angle	45°
Test Counter	0–999,999 times
Load	Adjustable, 500 g / 750 g / 1000 g
Table Travel Speed	Adjustable
Travel Distance	40mm
Sample Platform	Approx. 12 × 17 cm, with sample fixing capability
Power Supply	220 V / 50 Hz
