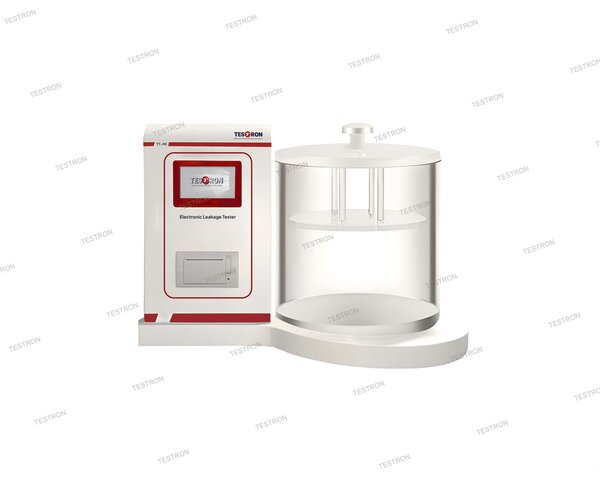

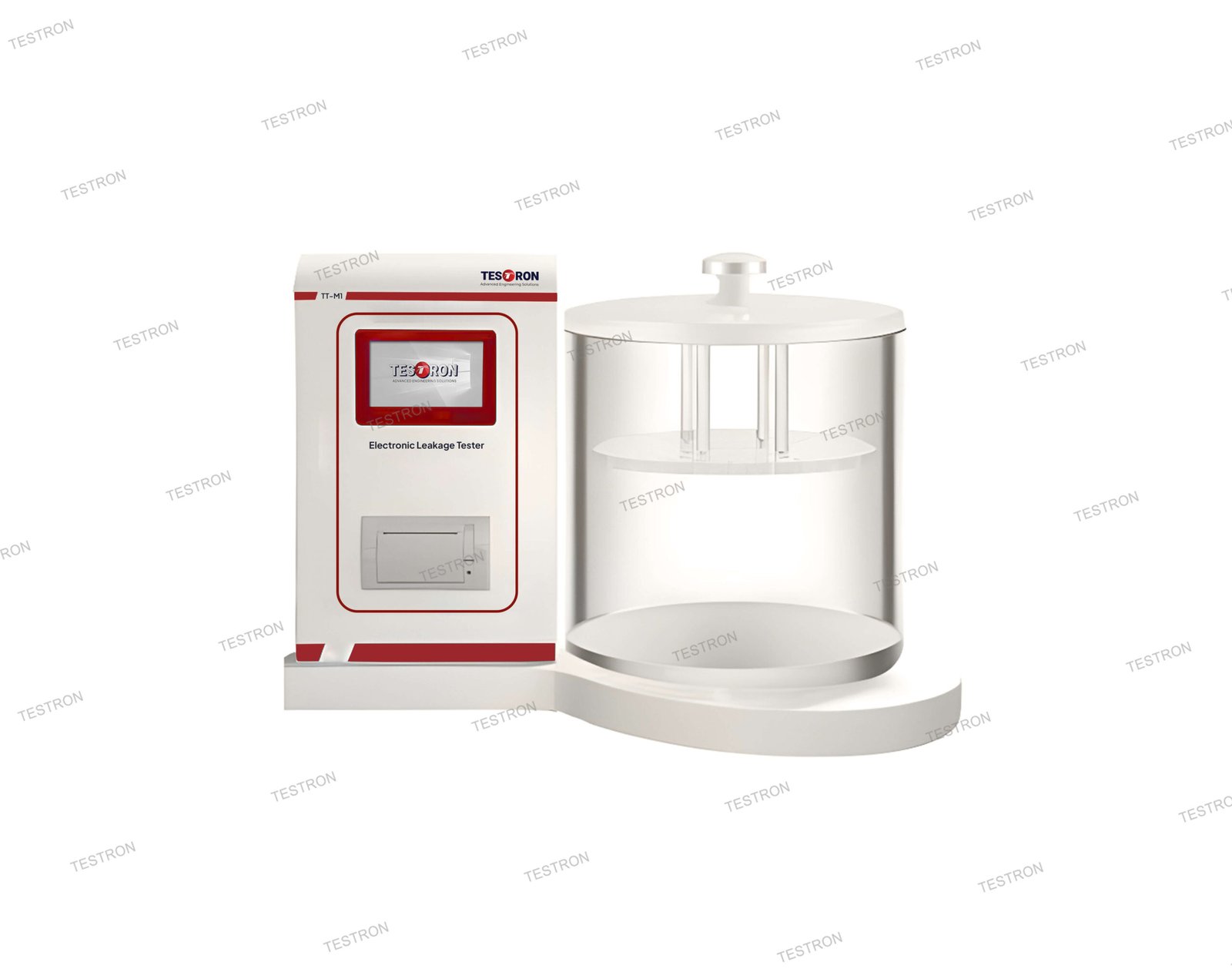

Application of TT -M1 Electronic Leakage Tester
To test the hermetic sealing quality and performance of packaging bags, bottles, cans and so on, used in food, beverage, pharmaceuticals, personal care and so on.
Test Standards of TT -M1 Electronic Leakage Tester
ASTM D3078-2002 (2013), GB/T 15171-1994
Features of TT -M1 Electronic Leakage Tester
- Compressed air pneumatic drive.
- Wholly automatic, auto vacuum and keep for set time at set pressure, auto stop and return.
- Can manually pause and stop.
- LCD displays test data and working status.
- Built-in printers can print reports with date.
Technical Specifications of TT -M1 Electronic Leakage Tester
| Model | TT-M1 |
| Vacuum degree | 0～-95kPa |
| Vacuum precision | ±1Kpa |
| Vacuum keeping time | 0.1～9999.9s |
| Sample size | ф300×350 mm |
| Intake pressure | 0.7～0.8Mpa |
| Consumption of compressed air | 20 L/min |
| Power supply | 220 V 50 HZ |
| Instrument size | Controller:580（L）×345（B）×440（H）mm Effective size of vacuum chamber：Ø270 × 270mm |
| Net weight | 12 kg |
| Ambient temperature | 10～40℃ |
| Power | 100W |
| Power supply | AC220V 50Hz |
Standard Configuration of TT -M1 Electronic Leakage Tester
| A. Spare parts | |||||
| NO. | Name | Remark | Quantity | ||
| 1 | Vacuum tank | 350mm*350mm | 1 PC | ||
| 2 | Vacuum tank lid） | 1 PC | |||
| 3 | Power cable | 3*0.75 10A 1.8 M | 1 PC | ||
| 4 | Air pipe | Φ8mm Plastic pipe 1M | 1 PC | ||
| 5 | Wooden box | 1 PC | |||
| B. Optional parts | |||||
| NO. | Name | Unit | Quantity | Remark | |
| 1 | Metrology Certificates | Optional | |||
| 2 | Air compressor | Optional | |||
| 3 | Seal barrel | Other size | |||
| C. User provide | |||||
| 1 | Power supply 500w 220V 10A 3 holes socket ground wire | ||||
| 2 | Air source such as air compressor specification 2.5HP、8KG pressure | ||||
| 3 | High-pressure air pipe（Φ6mm plastic pipe) | ||||
| 4 | Air filter dust, filter oil, filter water) | ||||
