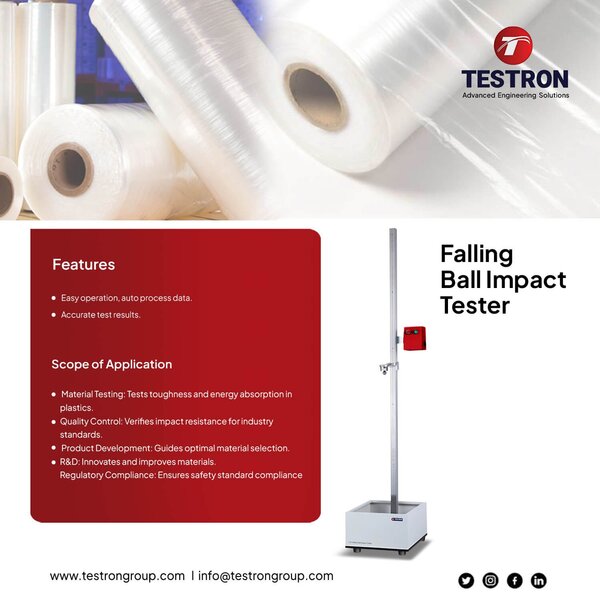

Falling Ball Impact Tester Standards:
YBB 0021-2005，GB/T 14485-1993
Falling Ball Impact Tester Features:
- Easy operation, auto-process data.
- Accurate test results.
Falling Ball Impact Tester Specifications:
| Item | Technical Parameters |
| Impact height | adjustable between 20~2000mm |
| Ball weight | 50g, 100g, 250g, 640g（food package）60g, 100g（drug package） |
| Fixture size | 150mm×150mm |
| Sample size | ≤150mm×150mm |
| Power | 1000W |
| Instrument size | 450mm×500mm×2200mm |
| Power supply | AC 220V 50Hz |
| A, Spare parts | |||||||
| NO. | Name | Remark | Quantity | ||||
| 1 | Power cable | 3*0.75 10A 1.8M | 1 PC | ||||
| 2 | Steel ball | 50g、100g、250g、640g（food package）/60g、100g（drug package） | 6 PCS | ||||
| 3 | Cross screwdriver | 6-10mm | 1 PC | ||||
| 4 | Allen wrench | M3 | 1 PC | ||||
| 5 | Wooden box | 1 PC | |||||
| B, Optional parts | |||||||
| NO. | Name | Unit | Quantity | Remark | |||
| 1 | Metrology Certificates | Optional | |||||
| C, User provide | |||||||
| 1 | Power supply 500W 220V 10A three holes socket ground wire | ||||||
