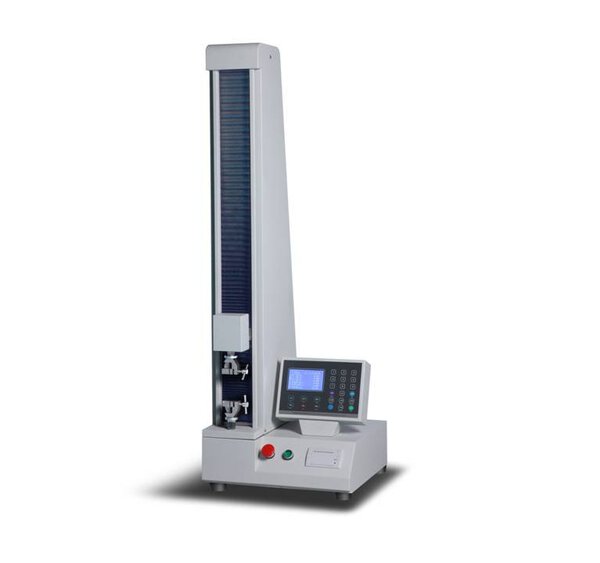

To test the tensile strength, peeling strength, heat sealing strength, and tearing strength of the plastic film, composite film, tape, soft packaging material, rubber sheets, paper, non-woven fabrics and other packaging materials, widely used in industries of the membrane, packaging, pharmaceuticals, food industries, inspection agency, research institute, college and so on.
Standards
ASTM D828, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113, QB/T 2358, GB8808, GB13022, GB/T1040, GB4850, GB/T7753, GB/7754, GB/T453, GB/T17200, GB/T16578.1, QB/T1130, GB/T 2791, GB/T 2790, GB/T 2792, GB/T 7122, GB/T 10004, GB/T 17590, JJG 139, GB/T 6344, GB 10808, YBB00112003, YBB00102003, YBB00132002, YBB00202004
Features
- Can test tensile strength, peeling strength, heat sealing strength and tearing strength.
- Users can set various parameters like width, speed, thickness, and distance.
- Results are shown on an LCD screen.
- Can print out testing results with a built-in thermal printer.
- Core parts are imported, with high precision and durability.
- High sampling speed (50 times/s) and accurate data.
- 3 levels of security protection make the experiment safer.
- Table standing design for sitting operation, easy and comfortable.
Specifications
| Item | Technical parameters |
| Force range | 0-300N (0~500N optional), 1400% elongation |
| Force accuracy | within ±1% of the displayed value (grade 1) |
| Test speed | 0-500mm/min (infinitely variable speeds) |
| Displacement accuracy | within ±1% of the displayed value |
| Test width range | 30mm (50mm can be customized) |
| Travel distance range | 700mm |
| Instrument size | 600mm×500mm×1300mm |
| Power | 300W |
| Power supply | AC 220V，50Hz |
| Weight | 65kg |
Configuration List
| A、Spare parts | ||||
| NO. | Name | Remark | Quantity | |
| 1 | Power cable | 3*0.75 10A 1.8M | 1 PC | |
| 2 | Communication cable | RS232 nine-pin data cable | 1 PC | |
| 3 | Tensile clip | 30mm | 1 PC | |
| 4 | Piercing clip | 1 PC | ||
| 5 | Software flash disk | 4G | 1 PC | |
| 6 | Buckboard | 1 Set | ||
| 7 | Allen wrench | 1 Set | ||
| 8 | Right-angle tear blade | 1 Set | ||
| 9 | Wooden box | 1 PC | ||
| 10 | Cross screwdriver | 6-10mm | 1 PC | |
| B、Optional parts | ||||
| NO. | Name | Unit | Quantity | Remark |
| 1 | Computer (win7 32bit) |
set | 1 | Optional |
| 2 | Pneumatic clip | set | 1 | Optional |
| 3
|
Metrology Certificates | Optional | ||
| C、User provide | ||||
| 1 | Power supply 500w 220V 10A three holes socket ground wire | |||
| 2 | 1 set of computers（with nine-pin COM port，Windows7 | |||
