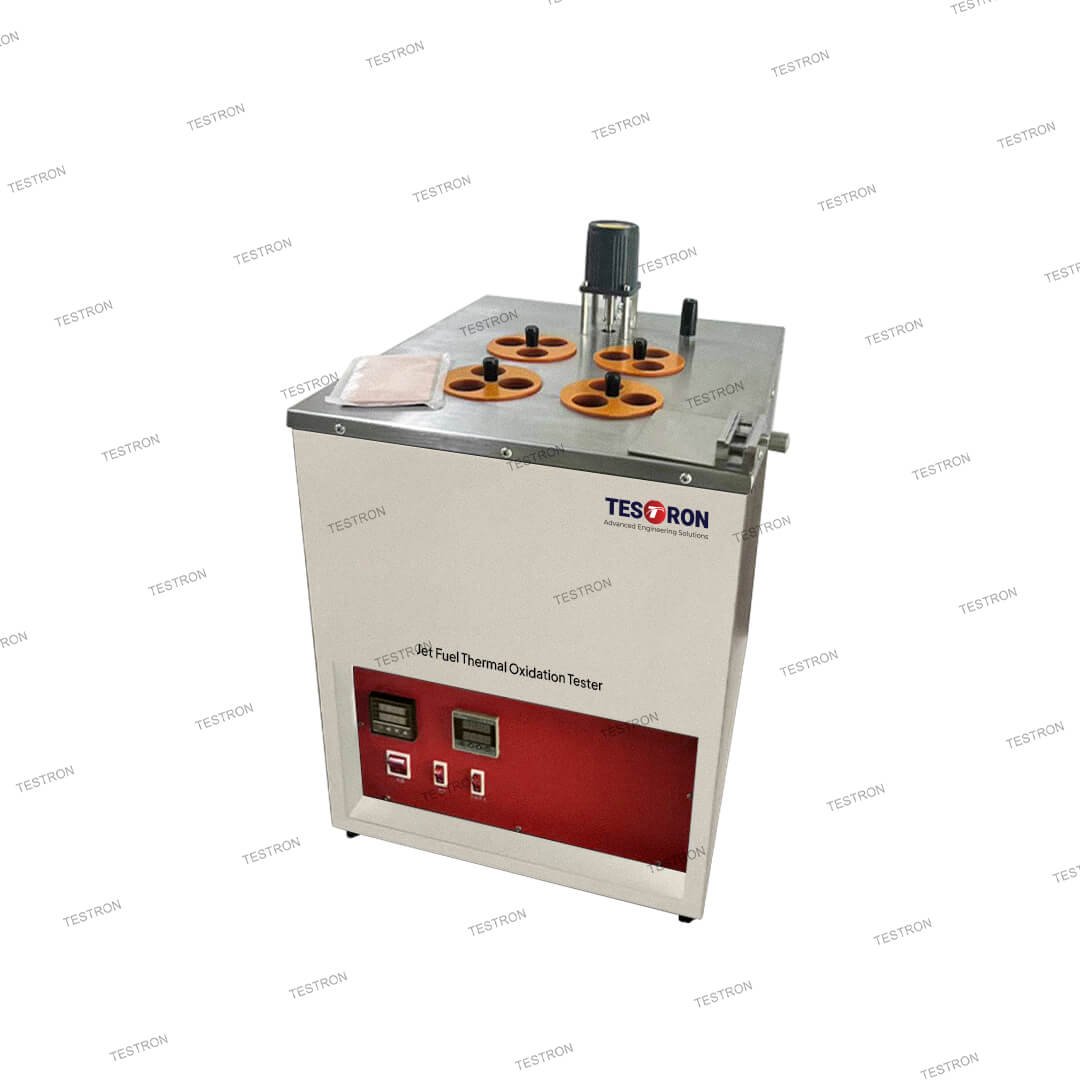

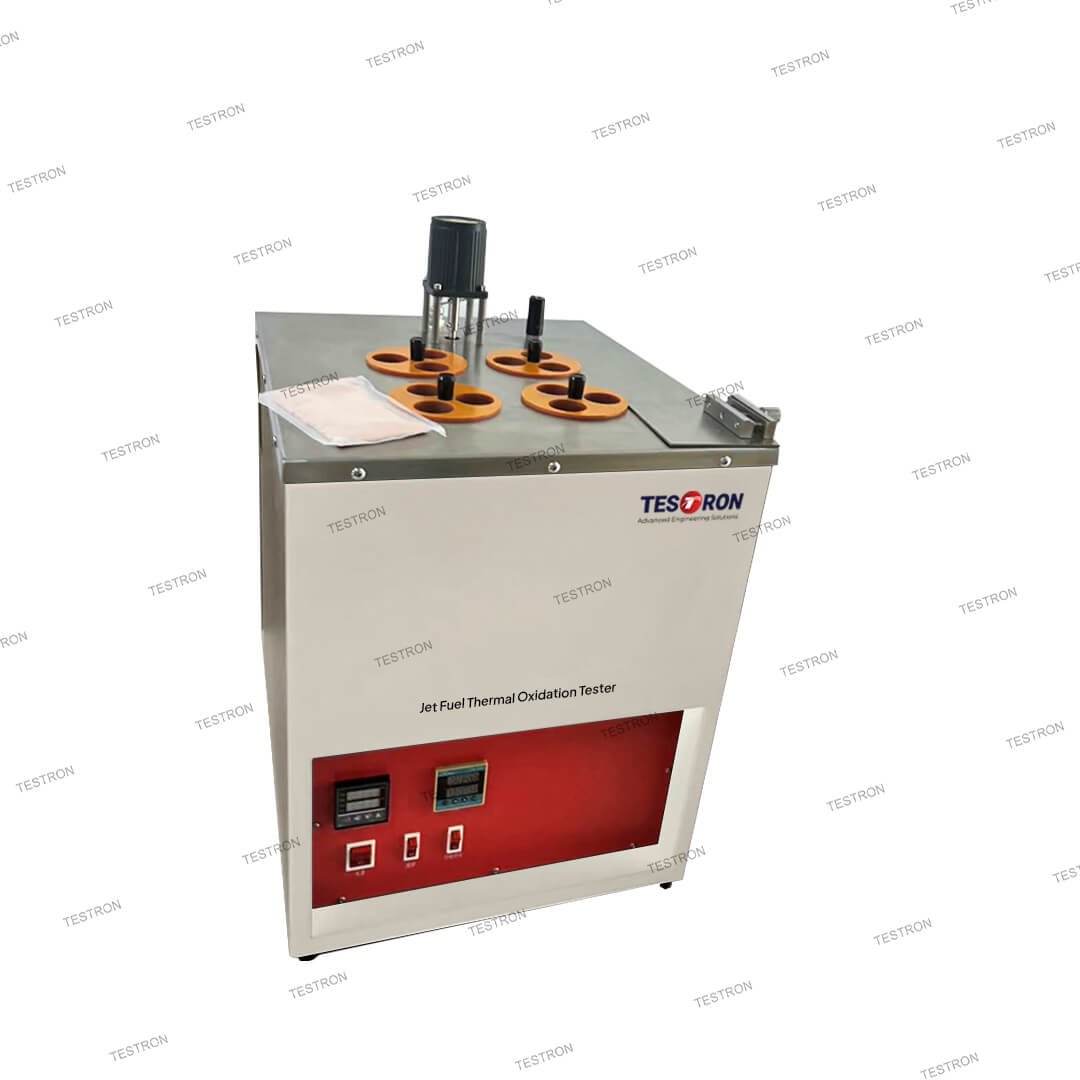

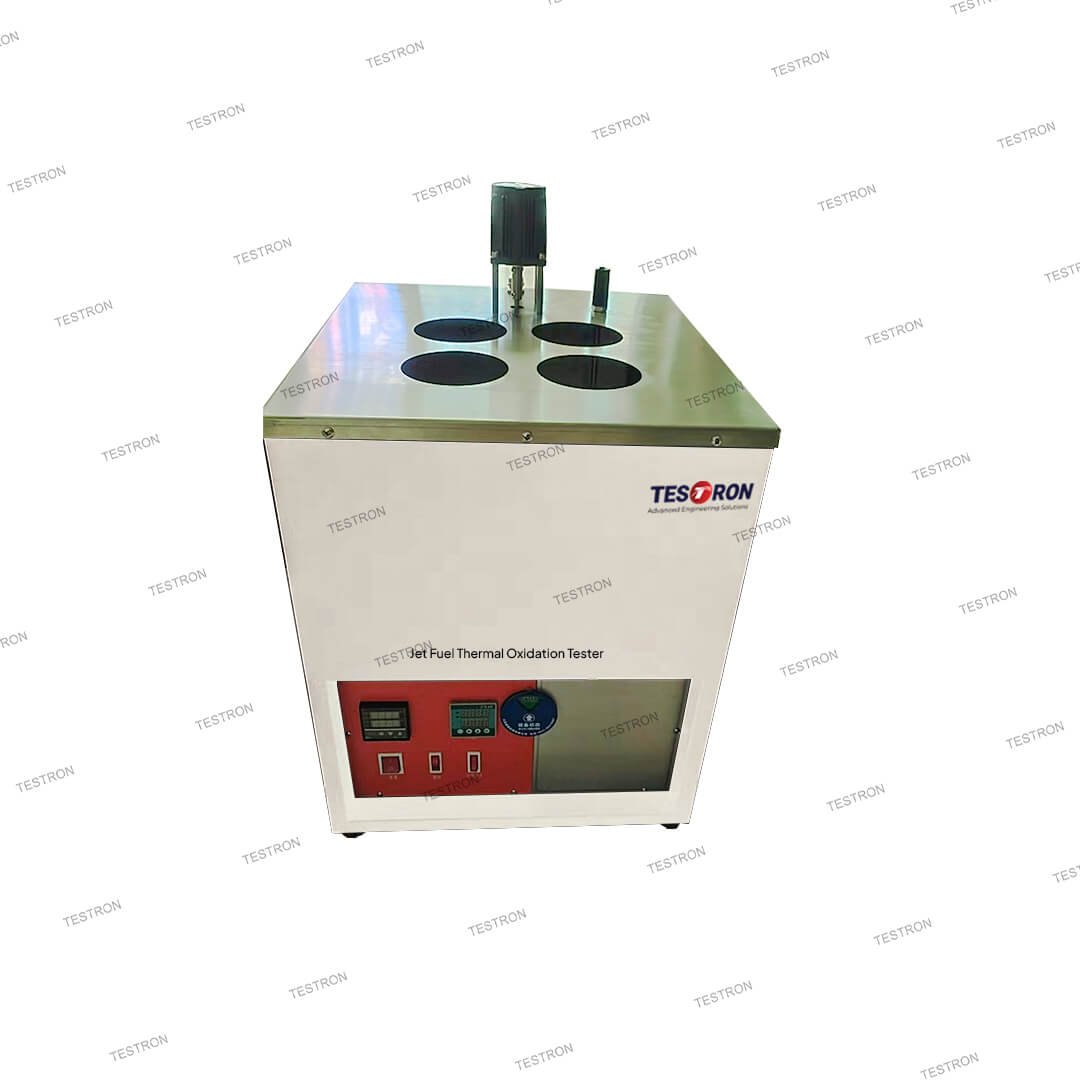

Test Standard of TT-JF04 Jet Fuel Thermal Oxidation Tester
ASTM D3241, SH/T 0023
Application of TT-JF04 Jet Fuel Thermal Oxidation Tester
It is used to evaluate the corrosion tendency of aviation turbine fuels toward silver components in aircraft fuel systems. It is widely applied in refineries, petroleum testing laboratories, aviation fuel quality control centers, research institutes, and aerospace industries for fuel quality assessment, compliance testing, and material compatibility studies in accordance with SH/T 0023 and ASTM D3241 standards.
Features of TT-JF04 Jet Fuel Thermal Oxidation Tester
- Conduct 4 groups of experiments simultaneously
- Equipped with circulating water system
- Fully compliant with SH/T 0023 and suitable for ASTM D3241 testing requirements.
- Designed specifically for evaluating the corrosion tendency of jet fuels on silver strips.
- Precise temperature control system for stable and repeatable test conditions.
- Uniform heating chamber ensures consistent exposure of silver test specimens.
- Digital temperature display and control for accurate operation.
- Durable stainless-steel construction for long service life and corrosion resistance.
- Easy specimen installation and removal.
- User-friendly operation with minimal maintenance requirements.
- High testing accuracy and repeatability.
- Suitable for routine quality control, research, and certification testing.
Technical Specification of TT-JF04 Jet Fuel Thermal Oxidation Tester
| Model | TT-JF04 |
| Power supply | AC (220±10%) V, 50 Hz |
| Work rate | 1500W |
| Temperature sensor | RTD, Pt100 |
| Temperature range | Room temperature ~ 120℃ |
| Temperature controlling accuracy | ±0.5ºC |
| Time controlling range | 1 minute~24 hours, can be set at will |
| Sample testing positions | Four positions |
| Number of test holes | 4 holes |
| Environmental requirements | temperature 5 ~ 40℃ |
| Relative humidity | ≤ 85% |
- Silver flake corrosion cuvettes, in line with SH/T0023 “Jet Fuel Silver Flake Corrosion Test Act”, ASTM D3241 / IP323, ASTM D1660 and other standards. Used to assess the corrosion propensity of jet fuel to silver components of aircraft turbine engine fuel systems. The silver sheet corrosion cuvettes are copied from full-color processing and consist of 5 typical test silver sheets representing the tarnished surface and the degree of increased corrosion. For protection, these corroded standard swatches are embedded in plastic plates. Instructions for corroding the standard swatches are given in the packaging of each standard Swatch. To avoid possible fading of the swatch, corroded standard swatches should be stored away from light.
- Colorimetric description
- 0 is no discoloration: except for a slight tarnishing in parts, it is almost the same as a newly polished silver sheet
- 1 is a mild discoloration: light brown or silvery-white fade;
- 2 is medium discoloration: peacock screen color, such as blue or purple red or medium and deep wheat yellow or brown;
- 3 is mild blackening: black or gray spots and patches on the surface, or a uniform black deposition film;
- 4 for blackening: uniform depth blackening, with or without peeling phenomenon
