Application of TT-HSDM Series High-speed Dispersing Machine
High-speed dispersing machines are used to mix and break down solid particles into liquids. They are ideal for coatings, paints, inks, dyestuffs, cosmetics, food products, resins, adhesives, latex, pharmaceuticals, and petroleum-based materials.
Features of TT-HSDM Series High-speed Dispersing Machine
- With Siemens squirrel-cage motor of frequency control except TT-M240 and TT-E300 and use frequency converter to adjust working speed.
- Direct digits display axis revolution through display screen of frequency converter installed on the machine.
- No carbon brush, no produce any flame when working.
- Lower noise, bigger torque and wider adjustable speed.
- Main parts are all made up of stainless steel, with perfect corrosion resistance.
- Standard configuration: Two or four (only for 550W&750W) different dispersing blades and can select different size sand-milling blades and stainless-steel double jacket container for milling.
- Power Supply: 220V 50HZ
Working Principle of TT-HSDM Series High-speed Dispersing Machine
- The rotating disc creates an annular flow, generating a powerful vortex that draws particulates toward the bottom center.
- A 2.5–5 mm edge around the dispersion tray forms a high-impact zone where particles are intensely agitated.
- Two beam currents outside this zone promote full circulation and turnover of the mixture.
- Beneath the dispersion tray, varying flow speeds cause mutual dispersion, enhancing the overall mixing effect.
Technical Specifications of TT-HSDM Series High-speed Dispersing Machine
Model | Motor Power | Speed (r/min)
| Max Torque | Lift Distance | Lift System | Come with dispersing blades size | Overall Size mm W x D x H Low Top |

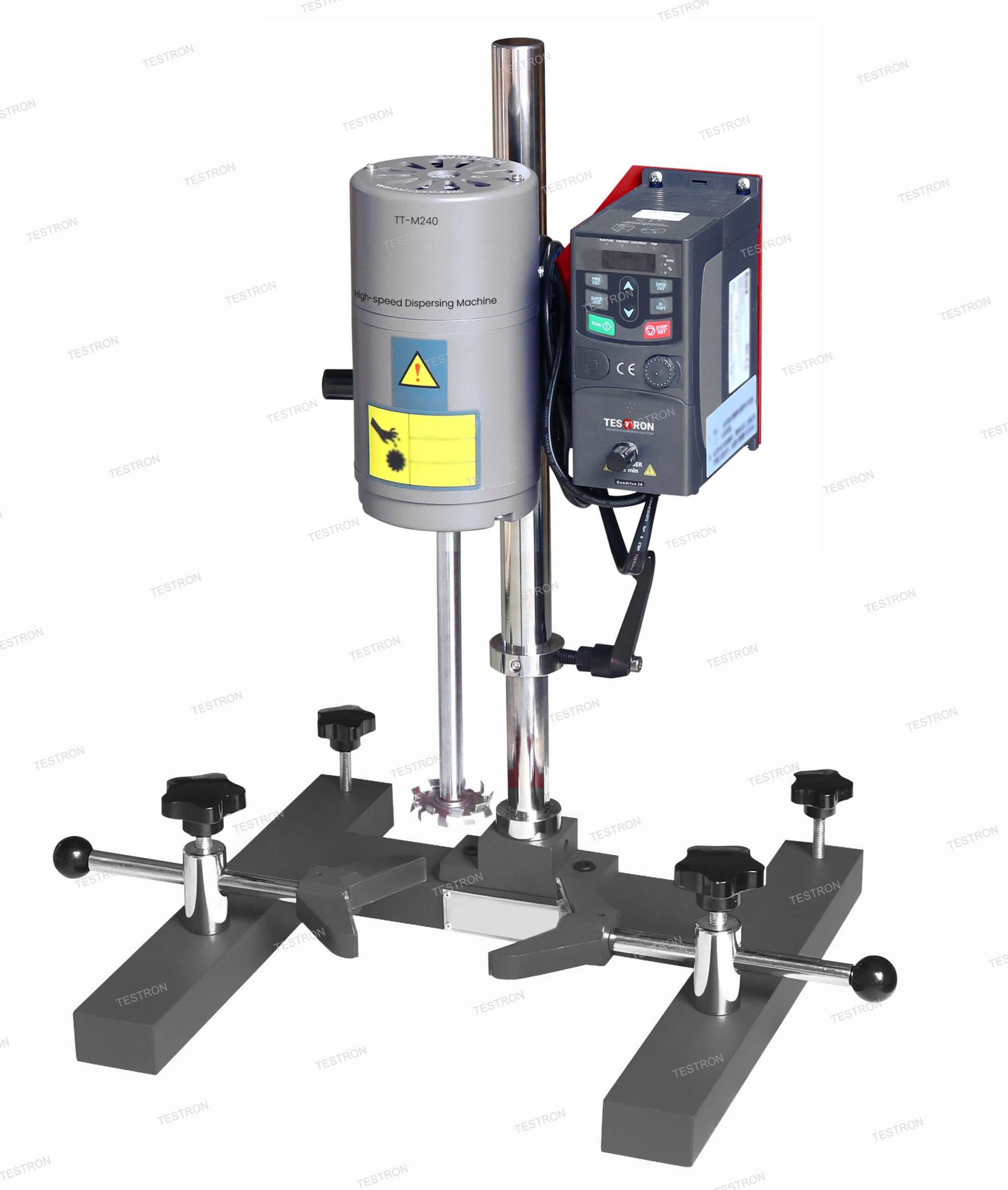

TT-M240 | 550W | 0-7,500 | 1.91N.m | 240 mm | Manual | 50mmx60mm | 475x430x560~800 |
TT-M260 | 750W | 0-6,000 | 2.87N.m | 260 mm | Manual | 50mmx60mm | 475x430x635~895 |

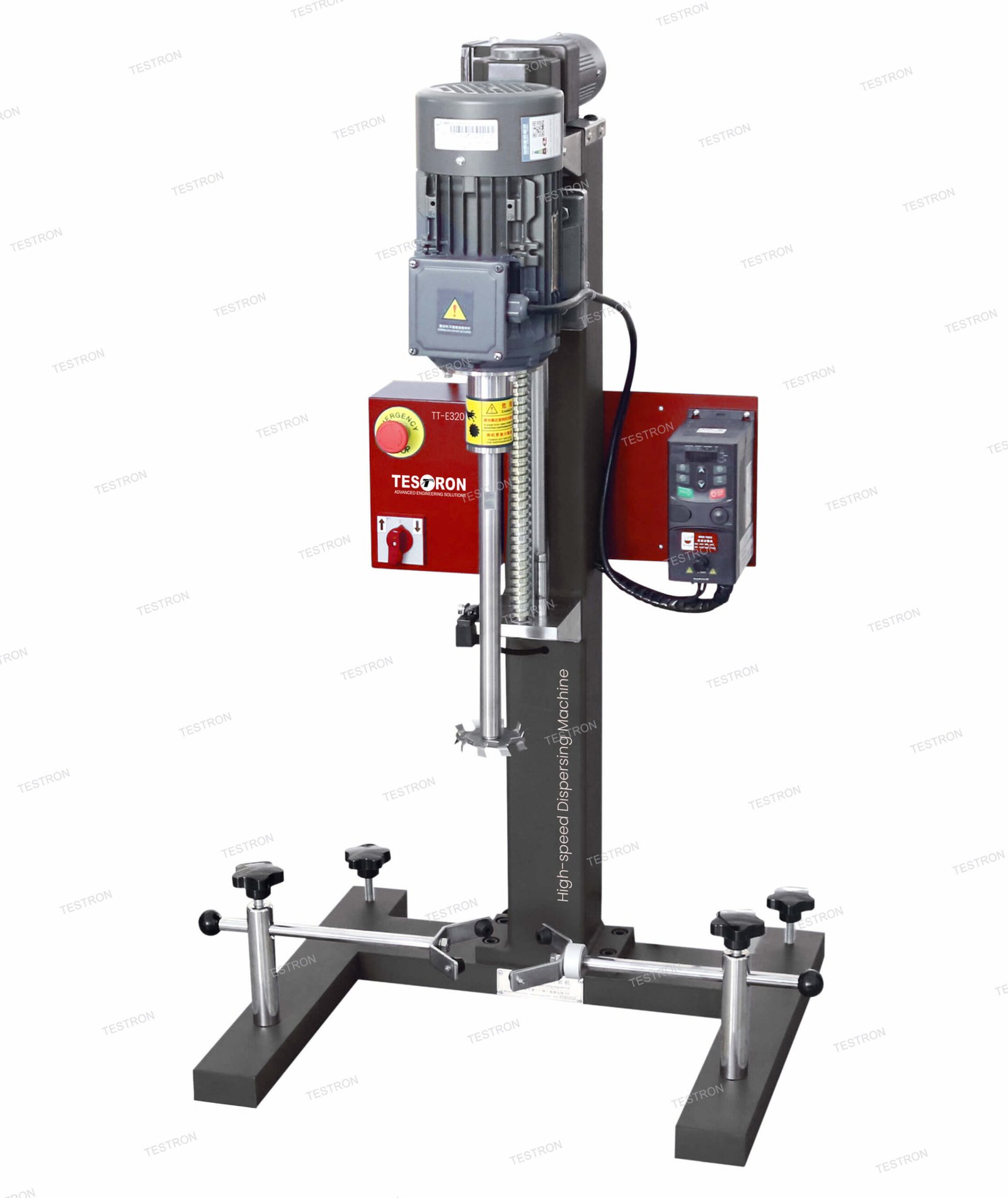

TT-E320 | 1,100W | 0-6,000 | 3.82N.m | 320 mm | Electric | 60mmx80mm | 675x570x1180 |
TT-E320-A | 1,500W | 0-5,000 | 5.73N.m | 320 mm | Electric | 80mmx100mm | 675x570x1180 |
TT-E520 | 2,200W | 0-4,000 | 7.64N.m | 520 mm | Electric | 100mmx120mm | 700x720x1300~1510 |
TT-E300 | 550W | 0-7,500 | 1.91N.m | 300 mm | Electric | 50mmx60mm | 530x430x850~880 |
TT-E300-A | 750W | 0-6,000 | 2.87N.m | 300 mm | Electric | 50mmx60mm | 530x430x850~880 |
TT-M300 explosion proof | 750W | 0-3,000 | 2.87N.m | 300 mm | Manual | 50mmx60mm | 530x560x965~980 |
TT-M520 explosion-proof | 2,200W | 0-3,000 | 7.64N.m | 520 mm | Manual | 100mmx120mm | 640x680x1430~1500 |
Note: For 550W&750W machines, come with two 50mm (a efficient one and a heavy-duty one each) blades and two 60mm (a efficient one and a heavy-duty one each) dispersing blades.
Optional Accessories of TT-HSDM Series High-speed Dispersing Machine
Items | Description | Items | Description |
TT-DB50 | Extend shaft for 50mm Dispersing blade (For TT-HSDM) | TT-DB150 | 150mm Dispersing Blade |
TT-DB60 | Extend shaft for 60mm Dispersing blade (For TT-HSDM) | TT-DB200 | 200mm Dispersing Blade |
TT-DB35 | 35 mm dispersing Blade | TT-DC03 | 0.3L Dispersing Container |
TT-DB50-A | 50 mm efficient Dispersing Blade (for low viscosity sample) | TT-DC05 | 0.5L Dispersing Container |
TT-DB-50-B | 50mm Heavy Duty Dispersing Blade (for high viscosity sample) | TT-DC125 | 1.25L Dispersing Container |
TT-DB60-A | 60 mm efficient Dispersing Blade (for low viscosity sample) | TT-DC3L | 3L Dispersing Container |
TT-DB60-B | 60mm Heavy Duty Dispersing Blade (for high viscosity sample) | TT-DC5L | 5L Dispersing Container |
TT-DB80 | 80mm Dispersing Blade | TT-DC10L | 10L Dispersing Container |
TT-DB100 | 100mm Dispersing Blade | TT-DC20L | 20L Dispersing Container |
TT-DB120 | 120mm Dispersing Blade | TT-EFB | Stand for explosion-proof box |
