Instrument Advantages
- It conforms to both ASTM and ISO international standards ASTM D 1003, ISO 13468, ISO 14782, JIS K
7361 and JIS K 7136. - The instrument is with a calibration certification from a third-party laboratory.
- No need to do warm-up, after the instrument is calibrated, it can be used. And the measurement time is
only 1.5 seconds. - Three kinds of illuminants A, C and D65 for haze and total transmittance measurement.
- 21mm test aperture.
- Open measurement area, no limit on sample size.
- It can realize both horizontal and vertical measurement to measure different kinds of materials such
as sheets, film, liquid, etc. - It adopts LED light source whose lifetime can reach 10 years.
Technical Data
| Items | Technical Parameters |

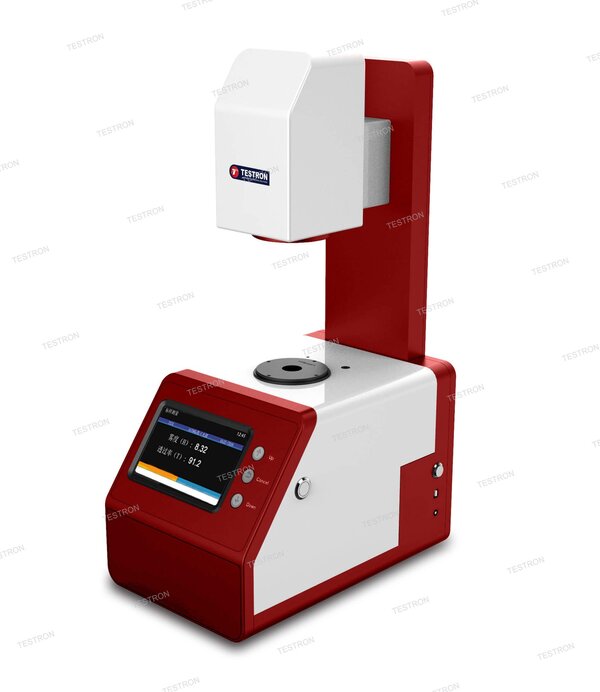

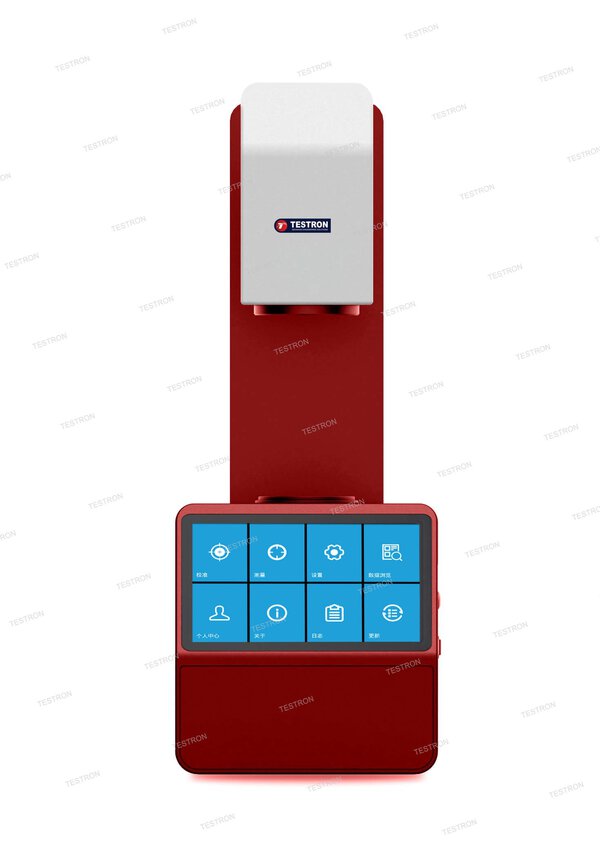

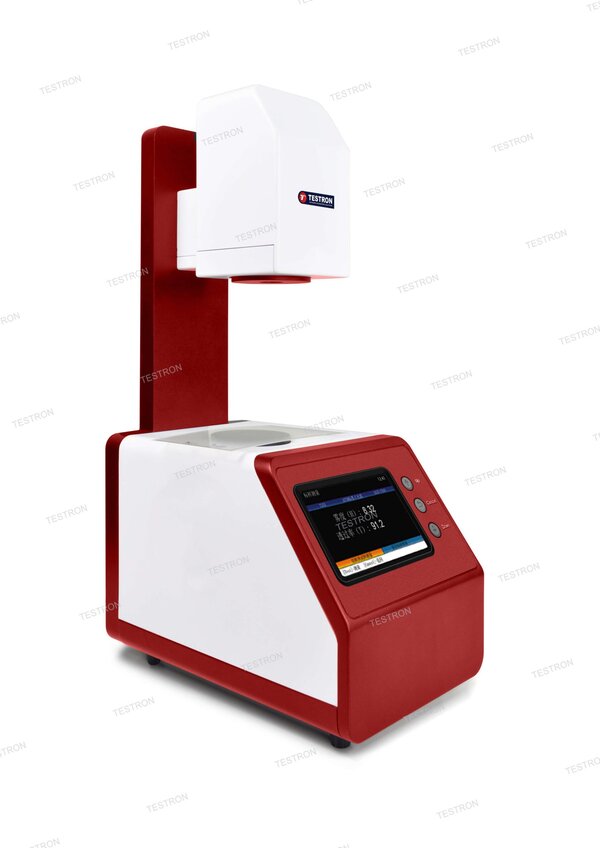

| Model | TT- HM2.0110- Haze Meter |
| Character | ASTM D1003/D1044 and ISO13468/ISO14782 standard for haze measurement and light transmittance measurement. Open measurement area and samples can be tested vertically and horizontally. Application: glass, plastic, film, display screen, packaging and other industries. |
| Illuminants | D65, A, C |
| Standards | ASTM D1003/D1044, ISO13468/ISO14782, GB/T 2410, JJF 1303-2011, CIE 15.2, GB/T 3978, ASTM E308, JIS K7105, JIS K7361, JIS K 7136 |
| Test Parameter | ASTM and ISO (HAZE), Transmittance (T) |
| Test Apertures | 21mm and 7mm |
| Instrument Screen | 7 inches touch screen with Android Software |
| Haze Repeatability | Φ21mm aperture Standard Deviation: within 0.05(when a haze standard with value 40 is measured 30 times at 5-second interval after calibration) |
| Transmittance Repeatability | ≤0.1 unit |
| Geometry | Transmittance 0/D (0-degree illumination, diffused receiving) |
| Integrating Sphere Size | Φ154mm |
| Light Source | Full spectrum LED light source |
| Test Range | 0-100% |
| Haze Resolution | 0.01 unit |
| Transmittance Resolution | 0.01 unit |
| Sample Size | Open space, no size limit |
| Data Storage | Mass Storage, unlimited |
| Interface | USB |
| Power Supply | DC12V (110-240V) |
| Working Temperature | +10 – 40 °C (+50 – 104 °F) |
| Storage Temperature | 0 – 50 °C (+32 – 122 °F) |
| Size | L x W x H:310mmX215mmX540mm |
Optional Items
| Material code | Name |
| 1.51.01.0047-0 | TT- HM2.0110 trolley case |
| 1.51.01.0039-0 | Film fixtures |
| 1.51.01.0040-0 | Cuvette fixture (rail + fixture) |
| 1.51.01.0041-0) TT- HM2.0110- 5mm) 1.51.01.0042-0) TT- HM2.0110- 7mm) 1.51.01.0043-0) TT- HM2.0110- 10mm) | Bore plate (optional 5mm, 7mm, 10mm) |
| 1.51.01.0022-0 | 1 set of 5 pieces |
| 3.07.02.4001-0)Standard haze tablets H1) 3.07.02.4002-0)Standard haze tablets H5) 3.07.02.4003-0)Standard haze tablets H10) 3.07.02.4004-0)Standard haze tablets H20) 3.07.02.4005-0)Standard haze tablets H30) 3.07.02.4014-0)Standard haze tablets H1) 3.07.02.4015-0)Standard haze tablets H5) 3.07.02.4016-0)Standard haze tablets H10) 3.07.02.4017-0)Standard haze tablets H20) 3.07.02.4018-0)Standard haze tablets H30) | 1 piece – with indication value |
| 1.51.01.0023-0 | 1 set of 5 haze tablets (National Institute of Metrology) |
| 1.51.01.0024-0 | 1 set of 4 transmittance tablets |
| 1.51.01.0025-0 | 1 set of 4 transmittance tablets |
| 1.51.01.0035-0)50%) 1.51.01.0036-0)70%) 1.51.01.0037-0)90%) | 1 transmittance sheet |
| 1.51.01.0029-0 | Verification report |
