Features of TT- G1S GSM Tester

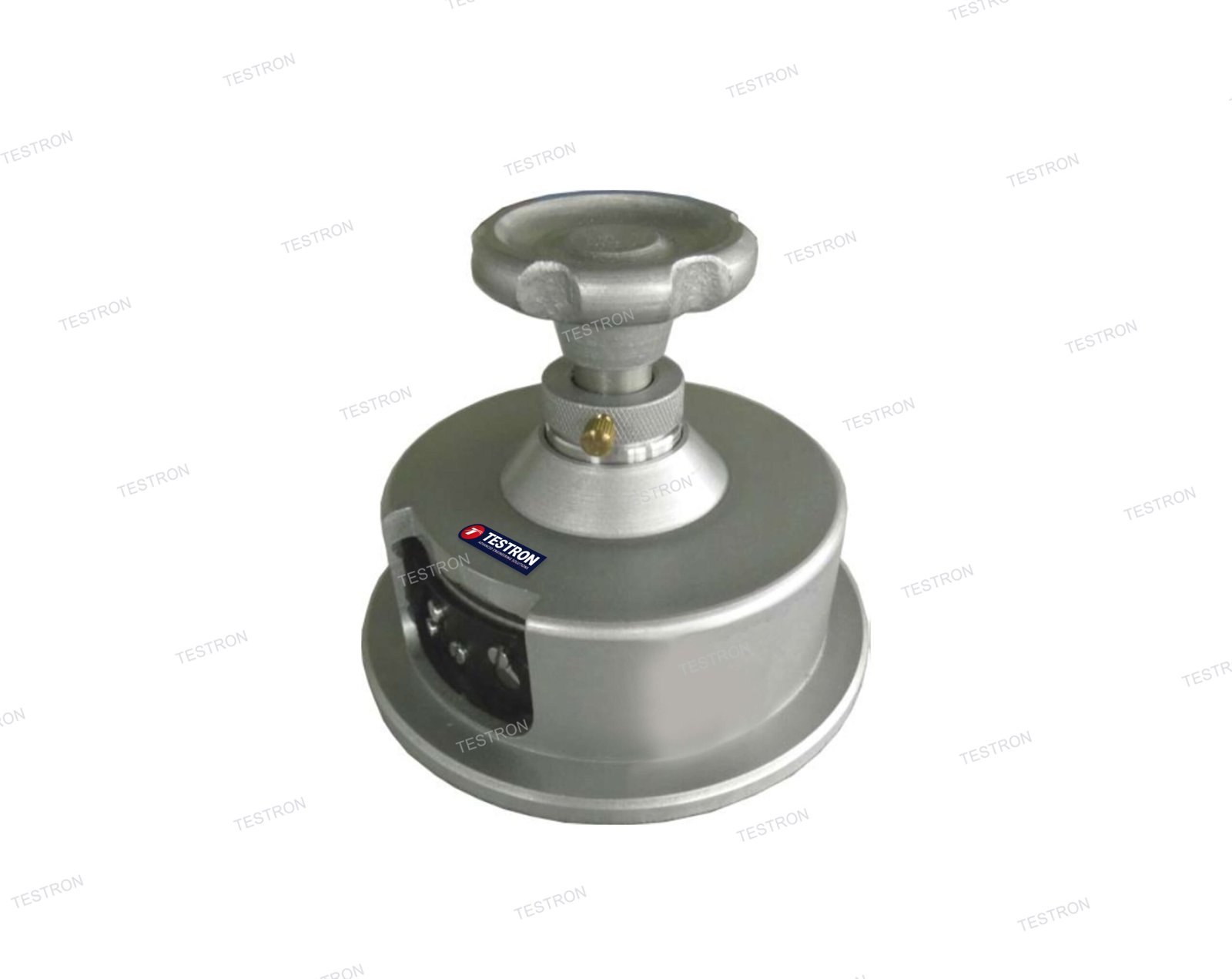

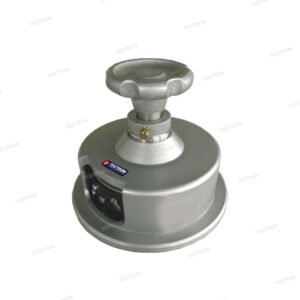

CUTTER
- Cutter body is made of Aluminum alloy and shaped by extrude molding;
- Provided with screw to adjust height of blade, also fitted with lock bolt for safe operation;
- Use GILLETTETM Blade, easy to change and maintain

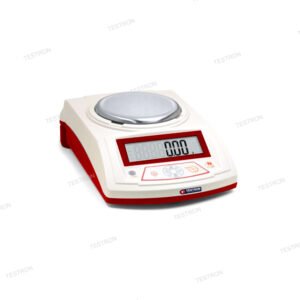

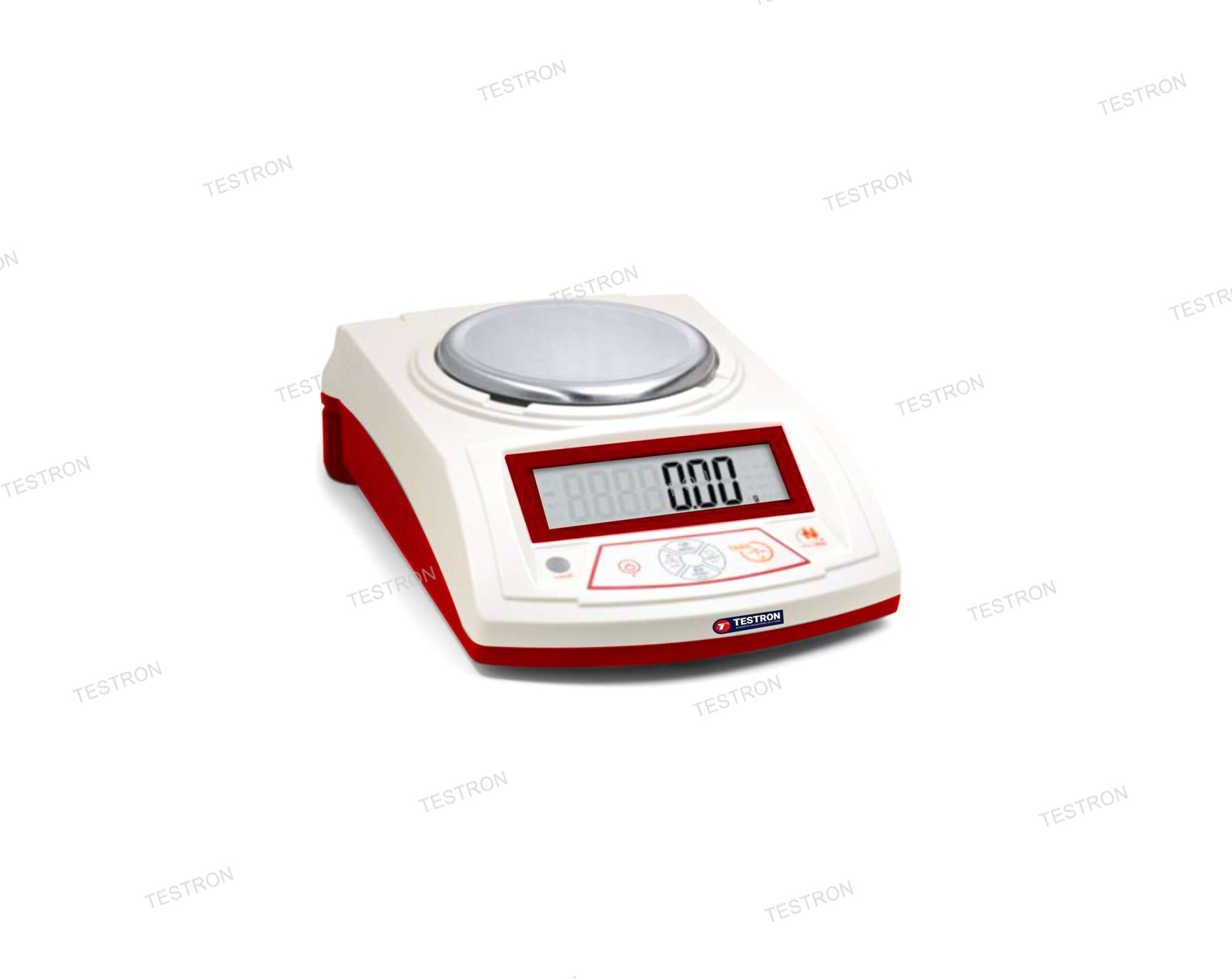

ELECTRONIC BALANCE
- Consist of imported integrated circuits, featuring stable and reliable performance;
- Precision calibration weight can be provided to ensure the precision of test results;
- LCD display, rapidly response test results;
- Support multiple measurement units and the unit can be switched: gram (g), carat (ct), ounce (oz), troy ounce (ozt), deadweight ton (dwt), grain (GN), pound (lb), Newton (N), dram (dr), tola (T), baht, kilogram (kg), etc.;
- As for high precision balance of 0.1mg, it is with RS232, USB port to support connection to PC; powerful special software, test results can be saved to file;

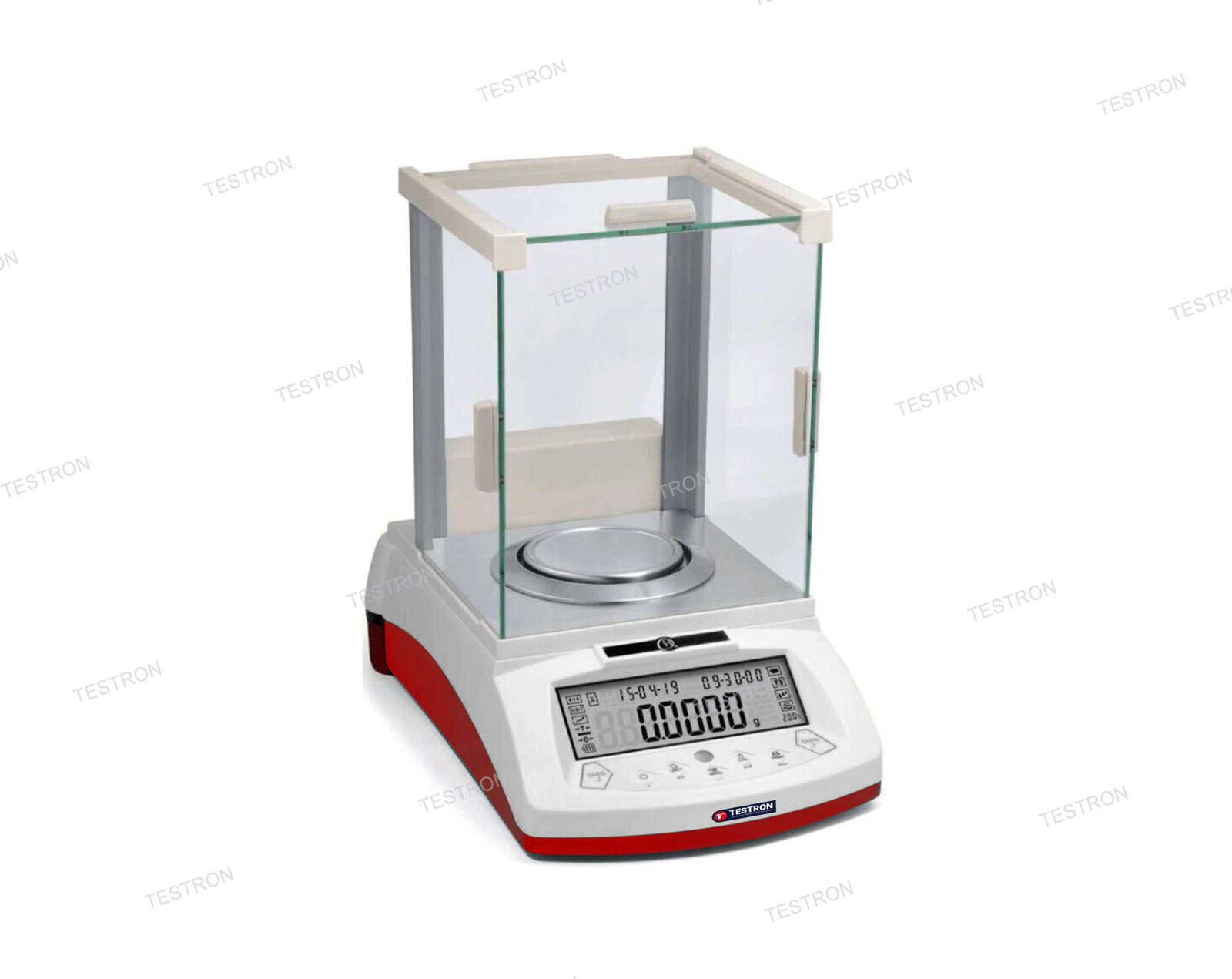

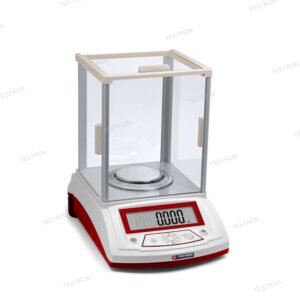

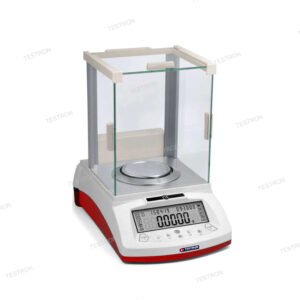

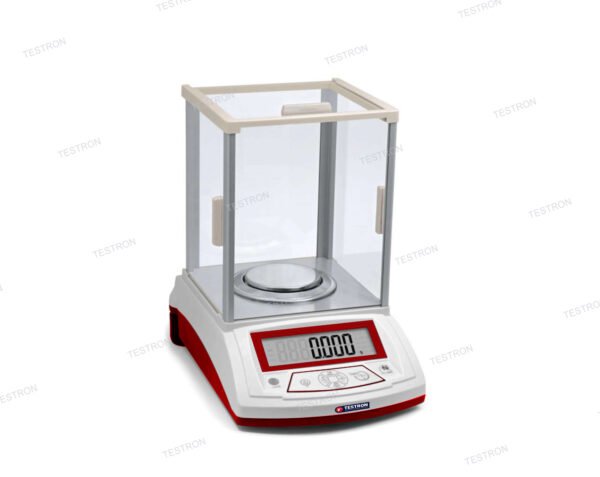

- Glass cover is equipped for high precision balance (0.1/1mg) to reduce the environmental error
Technical Specifications of TT- G1S GSM Tester
CUTTER
| Model | TT-RC1B | TT-RC1K | TT-RC2K |
| Cut method | Manual | ||
| Specimen size | 100cm2 | 11.3cm2 | 154 cm2 |
| Specimen diameter | 112.8mm | 38mm | 140mm |
| Specimen thickness | <5mm | ||
| Weight | 1.5kg | 1.2kg | 2.0kg |
ELECTRONIC BALANCE
| Model | TT-G1S210 | TT-G1S300 | TT-G1S3000 | TT-G1S10000 |
| Capacity(g)
| 110/210
| 100/200/300
| 200/300/500/600 1000/2000/3000 | 2000/3000/5000/ 6000/10000 |
| Readability | 0.1mg | 1mg | 0.01g | 0.1g |
| Scale pan size | Ø80mm
| Ø80mm
| Ø133mm HZT-A3000: 156×156mm | HZT-B2000: Ø133mm HZT-B3000/5000/ 6000/10000:168×168mm |
| Sensor
| Split electromagnetic force sensor | Strain sensor
| Strain sensor
| Strain sensor
|
| Calibration | External calibration | External calibration | External calibration | External calibration |
| Display
| LCD display | LCD display | LCD display | LCD display |
| Communication
| RS232, USB | / | / | / |
| Glass cover | Included | Included | / | / |
| Power supply
| AC220V 50Hz | |||
