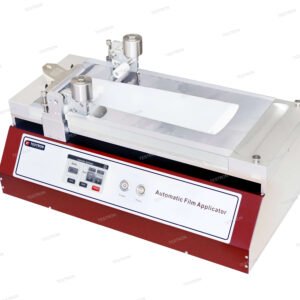

TT-FP Automatic Film Applicator

TT-FP Automatic Film Applicator enables experimental chemists to conveniently draw down precise coating film on the different substrates so as to reduce and eliminate errors caused by manual factors. This tool’s performance is primarily affected by the shear rate and the downward force exerted on the applicator. It substantially enhances the consistency of paint film applications

Inquiry Now

Categories: Color, Paint & Coating Testing, Material Testing

Description

TT-FP Automatic Film Applicator machine Applications

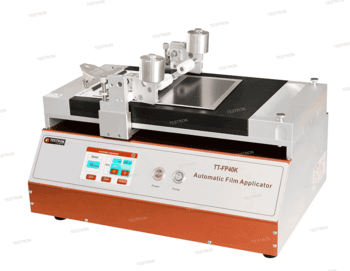

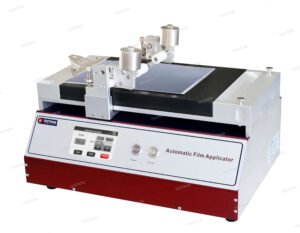

TT-FP40K, TT-FP46K, and TT-FP42K: Feature a specially machined vacuum suction-gas plate with high smoothness (the entire plate’s flatness is less than 5 microns) and special hardening treatment, ensuring a smooth and secure adsorption of all substrate types.

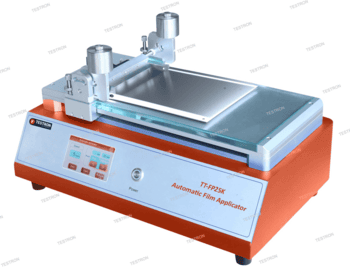

TT-FP25K Model: Comes with a specially machined glass plate with high smoothness (the entire plate’s flatness is less than 20 microns), which is also easy to clean.

Optimal design for vacuum plate to ensure suction power is distributed uniformly only TT-FB40K .
External vacuum pump eliminate all shake coming from traditional structure put pump into machine only. (exclusive to the TT-FP40K, TT-FP46K, and TT-FP42K Models).

Automatic Film Applicator Features

Adjustable variable speed: from 5mm/s to 500mm/s, allowing for a wide range of application speeds.
A high-precision linear guide bar ensures more stable drawdown speeds.
The height of the applicator pusher is adjustable to accommodate different substrates.
A well-designed bracket that is easy and simple to operate, allowing for the application of any load on easily bent substrates.
Users can freely set the starting point, making it suitable for substrates of various sizes.
Four selectable application distances, providing flexibility in coating range.
Compatibility with all types of our applicators and wire bars, offering versatility.
Better repeatability for applicating film:

Technical Specification of TT-FP Automatic Film Applicator:

Ordering Information → Technical Parameters ↓	TT-FP40K	TT-FP46K	TT-FP42K (With Heating)	TT-FP25K (Touch screen)
Method of fixing substrate	Vacuum adsorption			Clamp
Application Platform	Hard anodic oxidation aluminum with vacuum holes			Glass
Drawdown vacuum bed Size	360mm×250mm	490mm×250mm	360mm×250mm	400mm×220mm
Drawdown vacuum bed Size with a hole	290mm×190mm	410mm×190mm	290mm×190mm	—-
Max. application Length	250mm	375mm	250mm	280mm
Adjustable Draw down Speed	5mm/s～500mm/s		2mm/s～100mm/s	5mm/s～500mm/s
Carriage Holder Weight	500g×2pcs (1KG or 1.25KG is optional)
Total Power	370W		750W	50W
Temperature Range	—-		RT+5℃～100℃	—-
Temperature Uniformity	—-		±5℃	—-
Power Source	220V；50Hz (110V available upon request)
Weight	40KG	46KG	42 KG	25 KG
Overall Size (No vacuum pump)(L×W×H, mm)	500×345×340	635×345×340	500×345×340	550×320×340

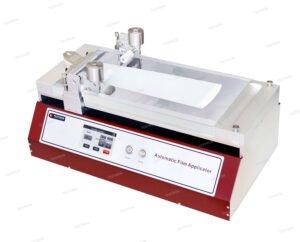

Testron-TT-FP46K automatic film applicator
