WHY YOUR LAB CANNOT AFFORD AN INACCURATE ANALYTICAL ELECTRONIC BALANCE
Inaccurate weighing in laboratory and industrial environments creates a chain reaction of failures. A pharmaceutical lab working with active ingredients measured incorrectly may produce off-spec formulations. A food packaging facility that cannot verify fill weights will face regulatory scrutiny and costly recalls. A research institution relying on compromised mass data cannot trust its conclusions.
The analytical electronic balance machine sits at the center of these critical workflows. It is not merely a weighing device : it is a data integrity instrument. This is why the analytical electronic balance specification you choose must match your operational demands precisely.
The TT-FAB Series was developed with this professional reality in mind. Every component : from the aluminum alloy shell to the large-space windproof cover : has been selected to support measurement fidelity under real-world laboratory conditions.
WHAT IS THE WORKING PRINCIPLE OF THE ANALYTICAL ELECTRONIC BALANCE?
Understanding the analytical electronic balance working principle helps buyers make better-informed procurement decisions.
The TT-FAB Series operates on the principle of electromagnetic force compensation. When a sample is placed on the weighing pan, the balance detects the displacement caused by the downward gravitational force. An electromagnetic coil embedded in the sensor system generates a counteracting force to restore the system to its null position. The current required to achieve this equilibrium is directly proportional to the mass of the sample. This current value is converted to a digital reading on the LCD display.
This mechanism delivers several key advantages over traditional spring-based or mechanical balance systems:
- Extremely fast response and stabilization (≤3 seconds)
- No mechanical wear over time : longer instrument life
- Highly repeatable readings with minimal operator dependency
- Excellent sensitivity at 0.0001g resolution throughout the full capacity range
- Consistent performance regardless of minor environmental vibrations
This is why electromagnetic sensor-based analytical electronic balances have become the industry standard in laboratory apparatus across pharmaceuticals, chemicals, academia, and manufacturing.

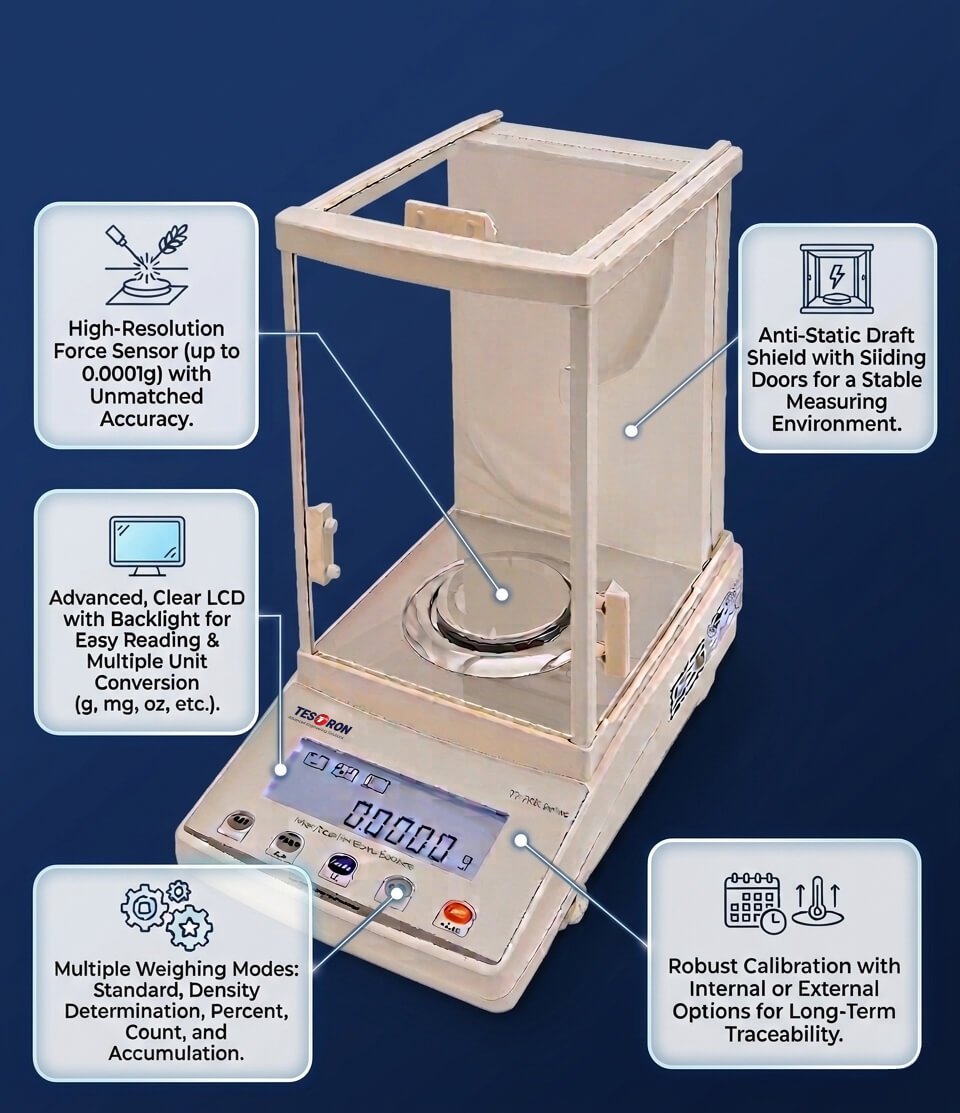

KEY FEATURES OF THE TT-FAB SERIES ANALYTICAL ELECTRONIC BALANCE
The TT-FAB Series is not a generic weighing solution. It is a purpose-built analytical instrument carrying features that translate directly to operational efficiency and measurement confidence.
Core Technical Features:
- Electromagnetic force compensation sensor for sub-milligram precision
- High-clarity LCD display with white backlight and black font for glare-free readability
- Large-space aluminum alloy windproof draft shield (240×190×265mm) to protect against ambient airflow
- Pan diameter of Φ80mm : accommodates standard lab containers and vessels
- External calibration system with dedicated calibration weights (100g or 200g depending on model)
- RS232C communication port as standard; USB and printer connectivity available as options
- Under-weighing hook for density determination applications
User-Oriented Functional Features:
- Tare function for net weight measurement without manual calculation
- Counting mode for rapid component counting in production environments
- Percentage weighing mode for formulation and compliance workflows
- Unit conversion between g, mg, ct, and oz : no secondary calculation needed
- Sensitivity and speed settings adjustable to suit different sample types
- Overload alarm and fault alarm to protect the instrument and alert operators
- Built-in level indicator to ensure accurate horizontal positioning
These features collectively reduce operator training requirements, increase throughput, and lower the risk of human error : making the TT-FAB Series one of the most competitively positioned analytical electronic balances in its class.
Looking for a trusted analytical electronic balance supplier in your region? Testron Group serves customers across China, UAE, USA, and India with fast quotation, pre-shipment inspection, and dedicated after-sales support. Request a Quote Now
FULL TECHNICAL SPECIFICATIONS – TT-FAB SERIES ANALYTICAL ELECTRONIC BALANCE
The table below provides the complete analytical electronic balance specification for all models in the TT-FAB series. This information is critical for procurement heads, lab managers, and quality engineers comparing analytical electronic balance cost against operational requirements.
Parameter | Specification |
Models Available | TT-FAB100, TT-FAB120, TT-FAB204, TT-FAB220, TT-FAB304 |
Capacity Range | 100g / 120g / 200g / 220g / 300g |
Resolution | 0.0001g (0.1mg) |
Minimum Weighing | 0.0004g |
Repeatability | ±0.0002g |
Linearity | ±0.0003g |
Stabilization Time | ≤3 seconds |
Pan Size | Φ80mm |
Display | LCD with white backlight, black font |
Operating Temperature | 15°C – 35°C |
Draft Shield Dimensions | 240 × 190 × 265mm |
Overall Dimensions | 340 × 215 × 350mm |
Calibration Type | External calibration |
Calibration Weight | 100g (FAB100/FAB120) / 200g (FAB204/FAB220/FAB304) |
Communication Interface | RS232C (Standard); USB / Printer (Optional) |
Gross Weight | 10kg |
Packing Size (Inner) | 415 × 285 × 430mm |
Packing Size (Outer) | 475 × 315 × 485mm |
All specifications conform to international laboratory standards. For custom analytical electronic balance specification requirements beyond the standard range, Testron Group offers OEM and custom-built configurations. Talk to our technical team to discuss your exact weighing needs.
ANALYTICAL ELECTRONIC BALANCE CALIBRATION : WHY IT MATTERS AND HOW IT WORKS
One of the most frequently asked questions by lab managers is about analytical electronic balance calibration. Calibration is not optional : it is a regulatory and quality imperative.
The TT-FAB Series uses an external calibration methodology. This means calibration weights (supplied or customer-sourced) are placed on the pan, and the balance adjusts its internal reference point accordingly. External calibration is widely preferred in regulated industries because it allows full traceability to certified national or international mass standards.
Best practices for calibration of your analytical electronic balance include:
- Calibrate at the beginning of each working shift or when the balance is moved
- Use certified calibration weights traceable to national standards (NABL, ISO, NIST)
- Allow the balance to warm up for at least 30 minutes before calibration
- Ensure the balance is level using the built-in level indicator before each calibration
- Maintain a calibration log as part of your quality management system
Testron Group provides full calibration support documentation and can coordinate with accredited third-party calibration service providers upon request.
APPLICATIONS OF THE TT-FAB SERIES ANALYTICAL ELECTRONIC BALANCE
The analytical electronic balance function extends far beyond simple mass measurement. The TT-FAB Series serves a broad range of industries and use cases, making it a genuinely versatile piece of laboratory apparatus
Pharmaceutical & Biotech: Formulation of active pharmaceutical ingredients, tablet weight verification, excipient measurement, and compliance sampling all require the 0.0001g precision the TT-FAB series delivers.
Food & Beverage Industry: Checking fill weights of packaged goods, verifying ingredient ratios, and maintaining packaging standards consistent with labeling regulations.
Chemical & Research Laboratories: Preparation of standard solutions, reagent measurement, density determination using the optional under-weighing hook, and analytical method validation.
Packaging & Quality Control: Verifying net weights of packaged products, reducing giveaway in production, and maintaining compliance with consumer protection and trade regulations.
Academic & Educational Institutions: Teaching accurate weighing technique, supporting undergraduate and postgraduate research experiments, and providing consistent results for thesis-level analytical work.
Jewelry & Gemstone Industry: The carat (ct) unit conversion mode makes the TT-FAB Series directly applicable in jewelry weighing and gemstone grading environments.
Environmental Testing: Sample preparation for water, soil, and air quality analysis requires precise weighing before instrumental analysis steps such as titration, spectroscopy, or chromatography.
WHY CHOOSE TESTRON GROUP AS YOUR ANALYTICAL ELECTRONIC BALANCE MANUFACTURER AND SUPPLIER?
Testron Group has operated from its headquarters in Guangzhou, China since 2015. With regional offices and distribution presence in the UAE, USA, and India, we serve clients across more than 60 countries. Our ISO-certified manufacturing processes, combined with a two-year product warranty, reflect our commitment to quality at every stage.
Here is what distinguishes Testron Group from other analytical electronic balance manufacturers and suppliers:
Competitive Price: We manufacture directly and sell globally, cutting out unnecessary distribution margins. This means you receive high-specification instruments at a more favorable analytical electronic balance cost compared to branded European or American alternatives with similar performance.
Customization Capability:
Standard models may not suit every deployment. Testron offers custom configurations including modified capacity ranges, alternative communication interfaces, and special packaging for OEM customers.
Regulatory Compliance:
All TT-FAB Series analytical electronic balances are designed and tested in line with international quality standards, making them appropriate for use in ISO-certified and GMP-compliant laboratory environments.
Technical Depth:
Our product engineers understand laboratory environments : not just product specifications. We help buyers match the right instrument to the right application.
Responsive Support:
Our technical support team provides remote diagnostics, calibration guidance, and spare parts supply with fast lead times. We do not disappear after the sale.
The ROI of a precise analytical electronic balance is immediate. Fewer rejected batches. Reduced material giveaway. Faster calibration cycles. Lower compliance risk.
Testron Group’s TT-FAB Series delivers all of this : at a price point that makes sense for both growing labs and established production facilities. Talk to Our Experts for Custom Solutions
COMPARING THE TT-FAB SERIES AGAINST GENERIC ELECTRONIC ANALYTICAL BALANCE OPTIONS
Many procurement teams end up with underperforming balances because they focus solely on analytical electronic balance price during selection. Here is a practical comparison of what the TT-FAB Series offers relative to generic electronic analytical balance alternatives commonly available in the market.
Evaluation Factor | Generic Alternatives | TT-FAB Series (Testron Group) |
Stabilization Time | 5–10 seconds | ≤3 seconds |
Resolution | 0.001g (typical) | 0.0001g |
Windproof Cover | Basic plastic housing | Large-space aluminum alloy draft shield |
Communication Ports | Often absent | RS232C standard; USB optional |
Calibration | Internal (non-traceable) | External, fully traceable |
Unit Modes | g only | g, mg, ct, oz |
Warranty | 6–12 months | 2 years (Testron standard) |
After-Sales Support | Limited or dealer-dependent | Direct technical team support |
The performance differential at a comparable analytical electronic balance cost makes the TT-FAB Series the better long-term investment for any professional setting.
ANALYTICAL ELECTRONIC BALANCE FREQUENTLY ASKED QUESTIONS
The TT-FAB Series offers a resolution of 0.0001g (0.1mg), with repeatability of ±0.0002g and linearity of ±0.0003g. This performance level makes it appropriate for professional laboratory and quality control applications across multiple industries.
Calibration should be performed at the start of each shift, after the balance is relocated, and whenever ambient temperature changes significantly. For regulated industries, calibration frequency may be specified by your quality management system or regulatory body. Testron recommends a minimum of daily calibration in active laboratory environments.
Analytical electronic balance price varies based on the model (capacity), optional accessories such as the USB port or printer, and order quantity. Testron Group offers competitive direct-from-manufacturer pricing. Contact our sales team for a formal quotation based on your specific requirements.
Yes. The 0.0001g resolution, external calibration with traceable weights, data output via RS232C/USB, and overload protection make the TT-FAB Series well-suited for pharmaceutical weighing workflows including formulation, QC sampling, and in-process checks.
Yes. Testron Group has established supply chain infrastructure to handle bulk orders for analytical electronic balance manufacturers, distributors, and institutional buyers. Custom branding, packaging, and specification modifications are available for OEM clients.
An analytical electronic balance typically offers resolution at 0.0001g (0.1mg) and is used when the highest level of mass accuracy is required. A precision balance generally has a resolution of 0.001g (1mg) or lower and is suited for less demanding weighing tasks. The TT-FAB Series falls firmly in the analytical category, making it appropriate for regulated and research-grade laboratory work.
Call to Action
Need a quote or have a specific weighing requirement? Our technical team is ready to help you identify the right analytical electronic balance configuration for your lab. Request a Quote – Get a Response Within 24 Hours
Contact us
CONCLUSION – THE ANALYTICAL ELECTRONIC BALANCE BUILT FOR PROFESSIONALS
The TT-FAB Series analytical electronic balance from Testron Group represents the intersection of engineering precision, operational practicality, and competitive value. Whether you are a lab manager standardizing weighing equipment across multiple workstations, a procurement head evaluating analytical electronic balance suppliers on technical merit and after-sales support, or a quality control professional who cannot compromise on measurement accuracy : the TT-FAB Series delivers.
With five models covering capacities from 100g to 300g, 0.0001g resolution across the entire range, industry-grade features including tare, counting, unit conversion, and connectivity options, plus the backing of Testron Group’s ISO-certified manufacturing and two-year warranty : this analytical electronic balance machine is ready to perform in your environment from day one.
Testron Group serves clients globally from offices in China, UAE, USA, and India. We are not just a supplier : we are a long-term laboratory equipment partner committed to your quality outcomes.
Take the Next Step
Thousands of quality professionals across 60+ countries trust Testron Group for their laboratory testing equipment and quality control equipment needs. Join them.
