Application of TT-DSM400 Dumbbell Specimen Maker
It is an ideal tool to make specimens for a variety of tests. Different Dies can be used to produce T-bone dumbbell specimens, right-angle tear specimens, rectangular specimens, round specimens, etc. It is applicable for rubber, plastic, leather, paper, film and other materials.
Test Standards of TT-DSM400 Dumbbell Specimen Maker
ASTM D 638, ISO 527, ISO 6259, ISO 179/ISO 180
Features of TT-DSM400 Dumbbell Specimen Maker
- Adopting the profiling principle and the mechanical transmission principle to convert the thread rotational motion into linear motion.
- The shape of the specimen is milled according to the shape of Die, not affected by the operator ability.
- Simple and fast operation, which largely improves working efficiency and reduces processing costs.
- Vacuum cleaner is equipped on the worktop for absorbing the scraps.
Technical Specifications of TT-DSM400 Dumbbell Specimen Maker
| Model | TT-DSM400 |
| Max. Specimen | 70mm |
| Operation worktop | 400mmx400mm |
| Diameter of milling knife | 27mm |
| Rotating Speed | 2900r/min |

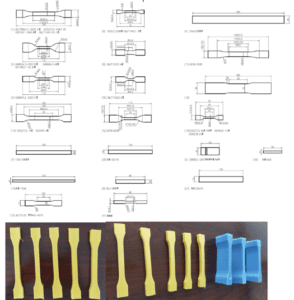

Template Specification of TT-DSM400 Dumbbell Specimen Maker
