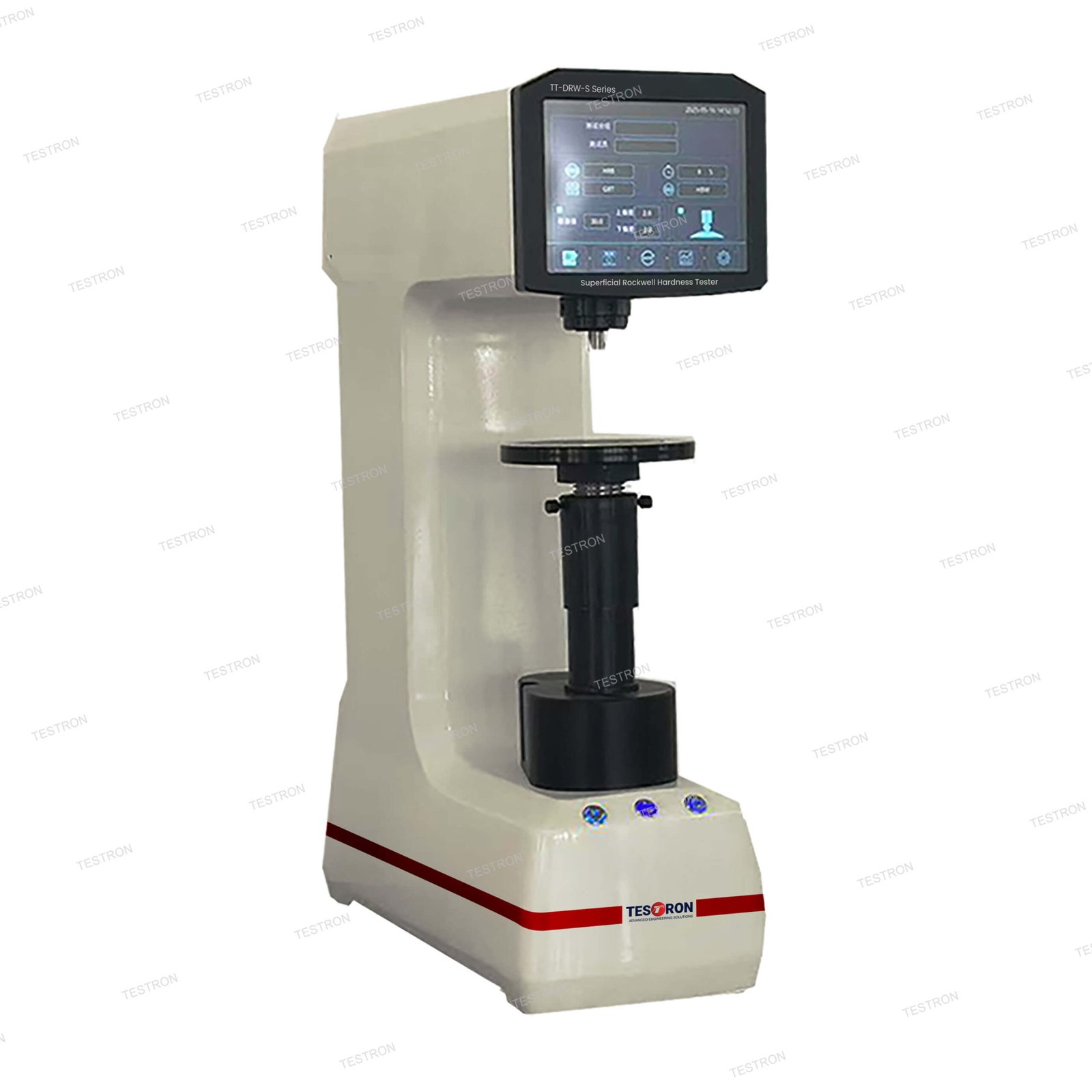

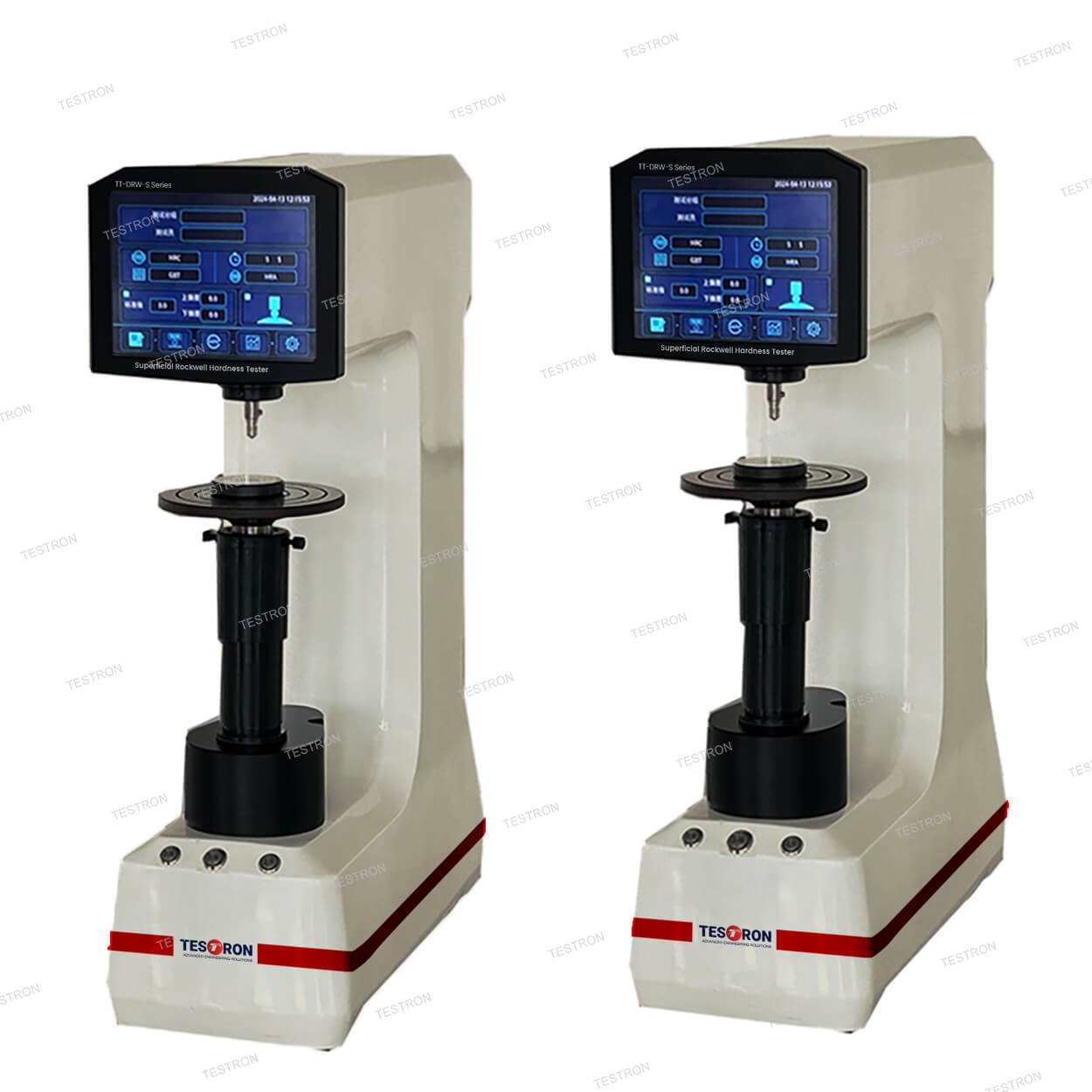

Test Standards of TT-DRW-S Series Superficial Rockwell Hardness Tester
ISO 6508，ASTM E-18，JIS Z2245，GB/T 230.2
Application of TT-DRW-S Series Superficial Rockwell Hardness Tester
It is suitable to determine the rockwell hardness of ferrous, non-ferrous metals and non-metal materials. Widely used for heat treatment materials, such as quenching, hardening and tempering, etc for materials like hard alloy, carburized steel, hardened steel, surface hardened steel, hard cast steel, aluminum alloy, copper alloy, malleable castings, mild steel, tempered steel, annealed steel, bearings and other materials

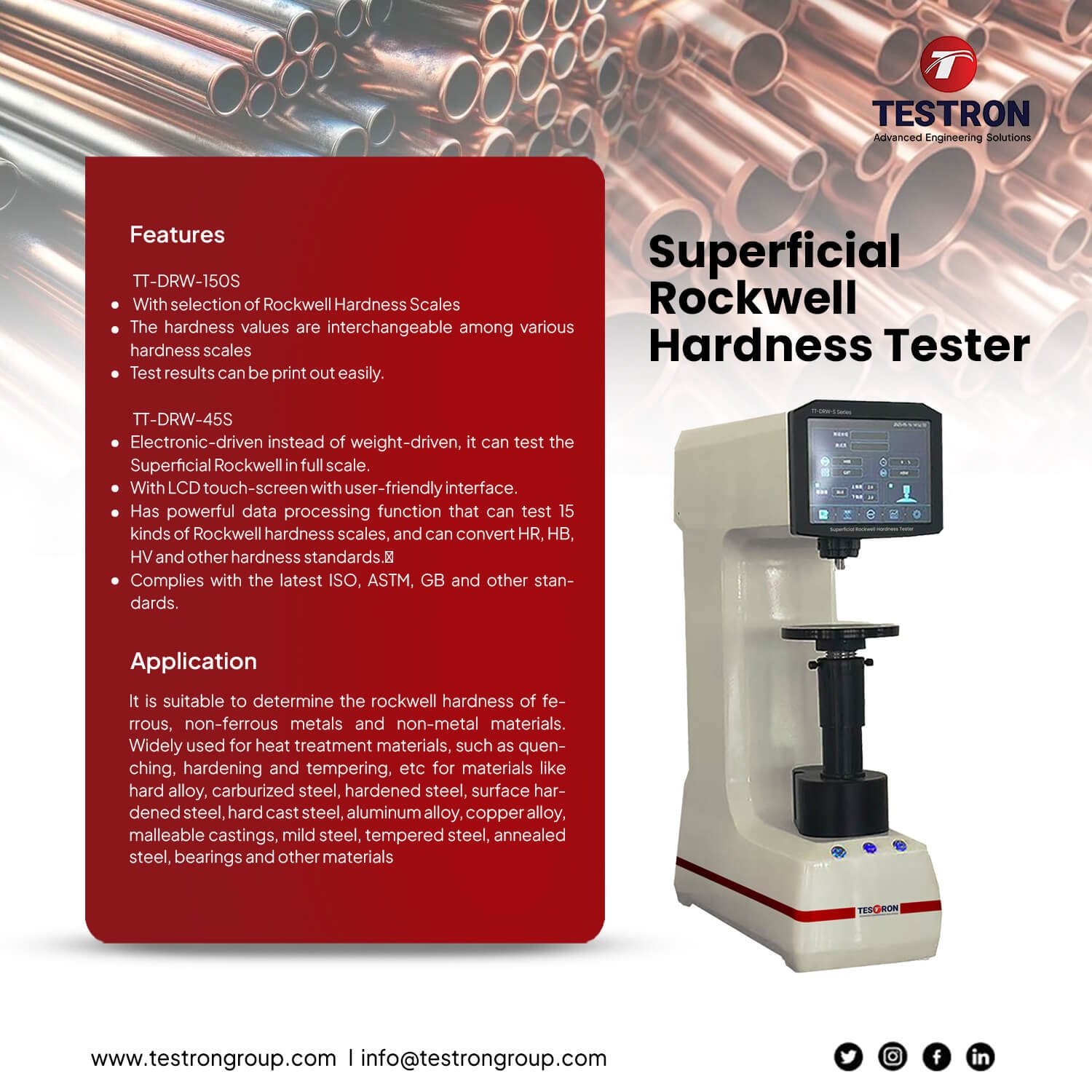

Features of TT-DRW-S Series Superficial Rockwell Hardness Tester
For TT-DRW-150S
- With selection of Rockwell Hardness Scales
- The hardness values are interchangeable among various hardness scales
- Test results can be print out easily.
- With optional of RS-232 hyper terminal setting for functional expansion
- Has precise measurement of parallel surface, steady and reliable for measurement of curved surface.
For TT-DRW-45S
- The hardness values are interchangeable among various hardness scales
- Electronic-driven instead of weight-driven, it can test the Superficial Rockwell in full scale.
- With LCD touch-screen with user-friendly interface.
- Main machine body is made strong to prevent deformation of the frame for stable and reliable measuring value
- Has powerful data processing function that can test 15 kinds of Rockwell hardness scales, and can convert HR, HB, HV and other hardness standards.
- Can store 500 sets of data, with automatic saving.
- Initial load holding time and loading time can be set.
- The upper and lower limits of hardness can be set.
- With hardness value correction function, each scale can be corrected.
- Complies with the latest ISO, ASTM, GB and other standards.
- Can be connected to PC for output
Technical Specifications of TT-DRW-S Series Superficial Rockwell Hardness Tester
| Model | TT-DRW-150S | TT-DRW-45S | |
| Measuring range | 20-95HRA, 10-100HRB, 10-70HRC | 70~94HR15N, 42~86HR30N, 20~77HR45N, 67~93HR15TW, 29~82HR30TW, 10~72HR45TW | |
| Initial Test Force | 98.07N (10Kg) | 3kgf | |
| Test force | 588.4, 980.7, 1471N (60, 100, 150kgf) | 15kg,30kg,45kg | |
| Max. height of test piece | 230mm | ||
| Depth of throat | 170mm | ||
| Type of indenter | Diamond cone indenter, φ1.588mm ball indenter | Rockwell diamond indenter, ф1.588mm steel ball indenter | |
| Loading method | Automatic (Loading/Dwell/Unloading) | ||
| Unit for display | 0.1HR | ||
| Hardness Display | LCD screen display | LCD Touch-screen | |
| Measuring scale | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV | HR15N,HR30N,HR45N,HR15T,HR30T,HR45T | |
| Conversion scale | HV, HK, HRA, HRB, HRC, HRD, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HBW | HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW | |
| Time-delayed control | 2-60 seconds, adjustable | ||
| Data output | / | RS232 interface | |
| Power supply | 220V AC or 110V AC, 50 or 60Hz | ||
| Dimensions | 520 x 200 x 700mm | 475 x 200 x 700 mm | |
| Weight | 65kg | 65kg | |

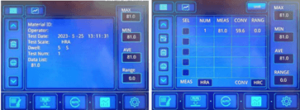

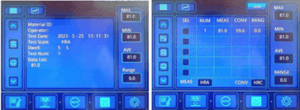

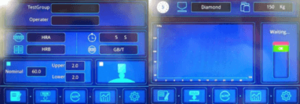

Sample interface of TT-DRW-S Series Superficial Rockwell Hardness Tester
Standard Configuration of TT-DRW-S Series Superficial Rockwell Hardness Tester
| Item | Qty |
| Main Machine | 1set |
| Diamond Cone Indenter | 1pc |
| Anvil (Big, Middle, “V”-Shaped) | 1pc each |
| Standard Rockwell Hardness Block | 1pc |
| HRB Hardness Block | 1pc |
| HRC (High, Middle, Low) Hardness Block | 1pc each |
| HRA Hardness Block (for TT-DRW-150S) | 1pc |
| ф1.588mm ball Indenter | 1pc |
| Horizontal Regulating Screw (for TT-DRW-150S) | 4 pcs |
| Portable printer | 1pc |
| Adapter | 1pc |
| Power Cable | 1pc |
| RS-232 Cable (for TT-DRW-45S) | 1pc |
| Spanner | 1pc |
| Level (TT-DRW-150S) | 1pc |
| Operating manual | 1pc |
| Warranty certificate | 1pc |
