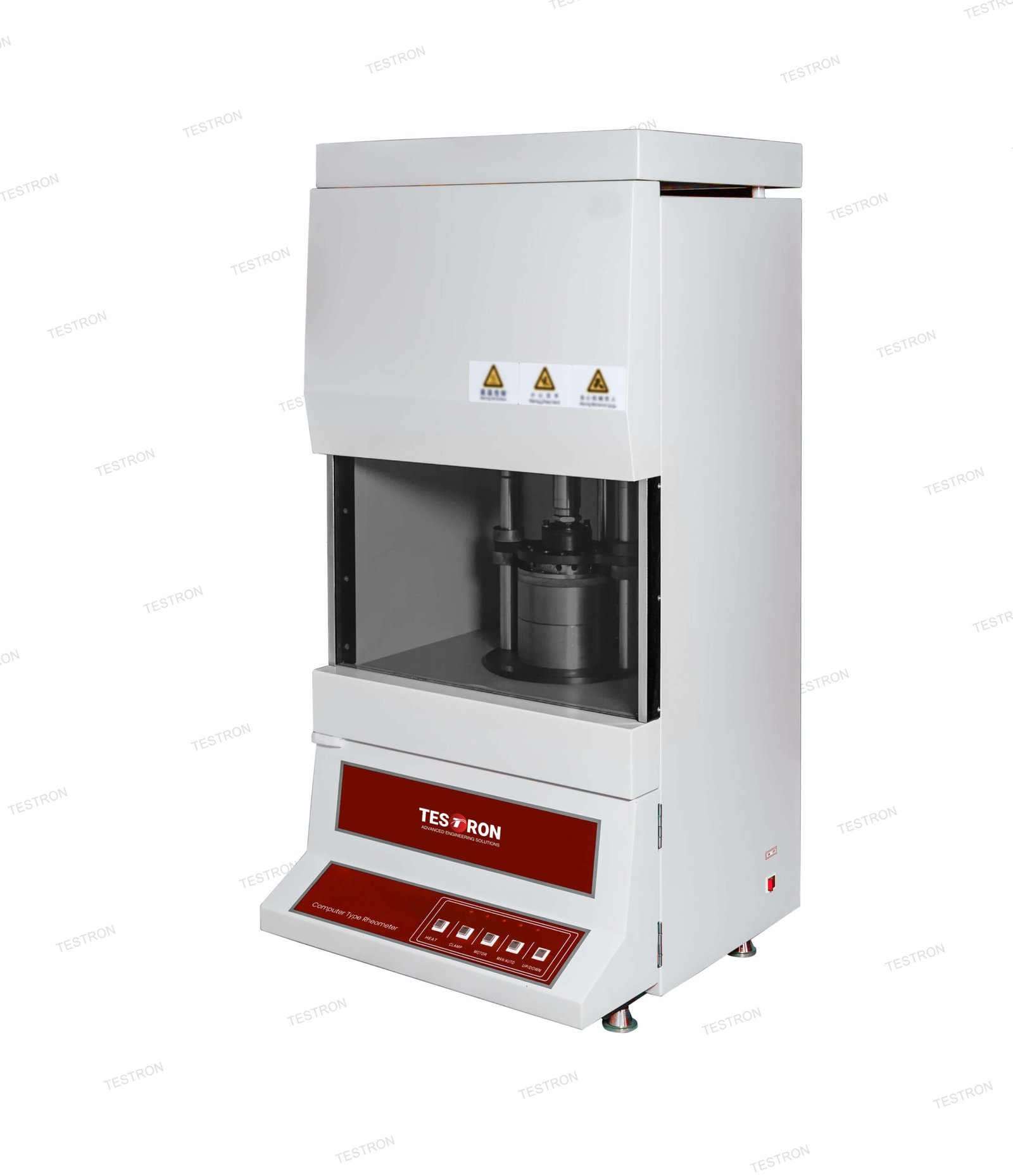

Application of TT-CTRV01 Computer Type Rheometer
It is mainly used in industries where rubber products with intricate designs, uniform curing, and high-quality finishes are needed. This includes the automotive industry for tires, seals, gaskets, and other rubber-based components.
Test Standard of of TT-CTRV01 Computer Type Rheometer
GB/T 16584-1996
Features of TT-CTRV01 Computer Type Rheometer
- Vulcanization curve and upper and lower cavity temperature curve can be printed at the same time;
- Print data is complete, practical, can be stored, and has statistical analysis function; (ML, MH, T10, T30, T50, T70, T90, TS1, TS2, VC1, VC2, factory name, glue number, date, etc.)
- Three main control technologies, leading position in China:
- Variable structure predictive control technology greatly improves temperature control accuracy;
- Variable Structure Predictive Control (VSPC)
- Modular structure control technology to improve the reliability and stability of the instrument;
- The new structure of torque measurement can eliminate all kinds of interference, keep the curve smooth and improve the repeatability of data;
- Test data can be exported for all kinds of researchers to write papers;
Technical Specifications of TT-CTRV01 Computer Type Rheometer
| Model | TT-CTRV01 |
| The mold cavity structure and non-slip groove shape are the same as Monsanto (now known as ALPHA); | The mold cavity is fully sealed. |
| Temperature control range | room temperature ~ 230℃, |
| temperature display resolution | 0.01℃; |
| Temperature fluctuation | ≤±0.2℃ |
| Heating time | room temperature ~ 185℃, about 8min; |
| Torque measuring range | 0 ~ 10 N.m; Torque display resolution: 0.001N.m |
| Torque measurement accuracy | ± 0.3% |
| Swing frequency | 1.7Hz (100 r/min) Swing amplitude: ±0.5° (±1°) |
| Temperature recovery speed | After the test compound is put into the mold cavity, the time to restore to the set temperature is ~ 45 seconds |
| Machine weight | 280 kg Volume: 625×600×1250mm |
Standard Configuration of TT-CTRV01 Computer Type Rheometer
| Item | Qty |
| Host and Accessories | |
| Host | 1 set |
| Computer | 1 set |
| Printer | 1 set |
| Power cord (250V / 10A) | 1 pc |
| Communication line | 1 pc |
| air supply treatment triplet (pressure gauge) | 1 set |
| φ8 trachea | 3 meters |
| Vulnerable Spare parts
| |
| square key switch | 4 pcs |
| the main power supply (boat) switch | 2 pcs |
| fuse tube (10A / φ5×20) | 5 pcs |
| cavity seal ring | 20 pcs |
| high temperature isolation film | 1 set |
| Common Gadgets | |
| Stainless steel tweezers | 1 pc |
| fine copper wire brush | 1 pc |
| Hex wrench | 4 pcs |
| Yarn gloves | 2 sets |
| Brush | 1pc |
| Replace seal guide sleeve | 1 pc |
| Manual Instruction | 1 pc |
| Training Certificate | 1 pc |
| Warranty Card | 1pc |
