Application of TT-CT2000A Compression Testing Machine
It is suitable for compressive strength testing of bricks, stones, cement, concrete and other materials.

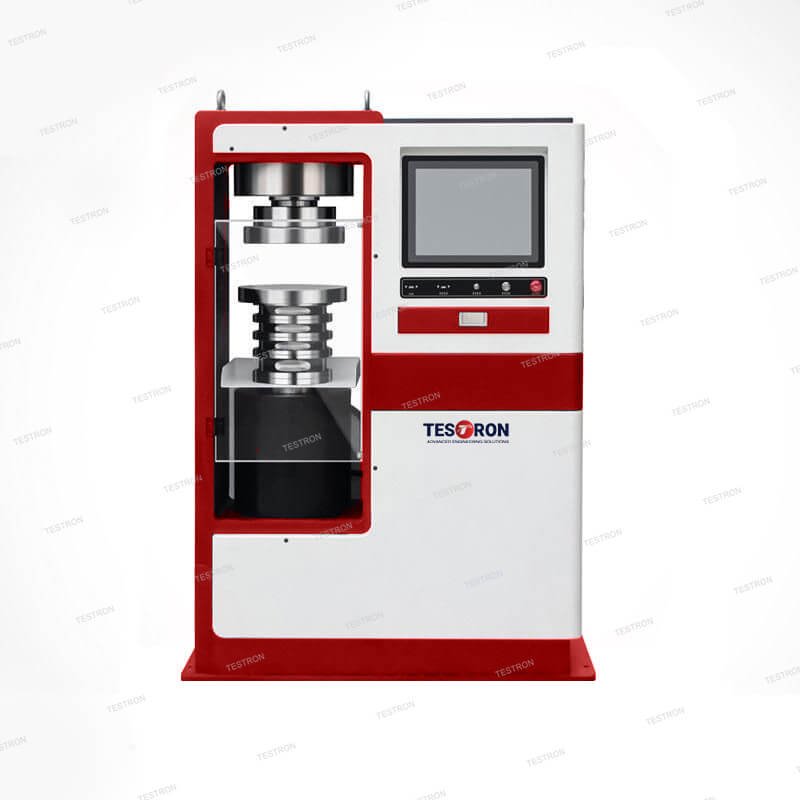

Features of TT-CT2000A Compression Testing Machine
- The frame adopts the whole machine casting frame structure that is not easy to deform.
- Uses imported servo oil source which temperature is not too high
- With high-precision digital micro valve
Technical Specifications of TT-CT2000A Compression Testing Machine
| Model | TT-CT2000A |
| Max. test force | 2000kN |
| Measurement accuracy range | 5%- 100% |
| Indication accuracy | ≤±0.5% |
| Loading rate | 0.3MPa-1.0MPa, stress velocity greater than 1.0 can be entered manually |
| Loading rate accuracy | ±5% |
| Distance between upper and lower platen | 330mm |
| Upper and lower bearing plate diameter | Φ280/Φ320mm |
| Piston maximum stroke | 120mm |
| Piston diameter | φ250mm |
| Oil maximum pressure | 40MPa |
| Voltage | AC220V,2.3kW |
| Dimensions | 1100×510×1510mm |
| Weight | 1200kg |
