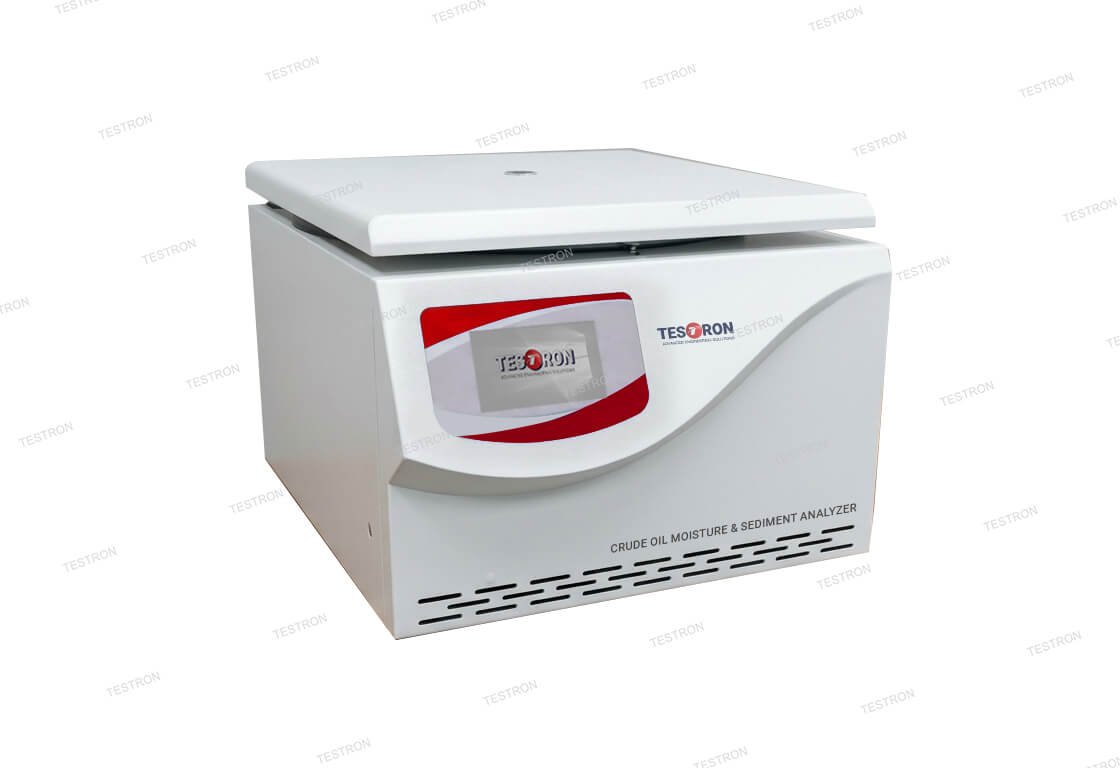

Test Standards of TT- CSM4390 Crude Oil Moisture & Sediment Analyzer
ASTM D4007, ASTM D1796, GB/T 6533‑86
Application of TT- CSM4390 Crude Oil Moisture & Sediment Analyzer
It is widely used across the petroleum industry for accurate determination of water and sediment content in crude oil. It is suitable for crude oil extraction sites, refining and processing plants, quality inspection laboratories, and research institutions that require reliable centrifuge‑based separation.
Features of TT- CSM4390 Crude Oil Moisture & Sediment Analyzer
- Microcomputer control system with touch panel, intuitive digital display, automatic parameter memory, and direct RCF start for simplified operation.
- High‑torque brushless variable‑frequency motor with European ultra‑high‑speed bearings, ensuring smooth, maintenance‑free performance.
- Robust construction featuring a steel body, stainless‑steel centrifugal chamber, and corrosion‑resistant imported components for long service life.
- Comprehensive safety protections, including overspeed protection, door‑cover interlock, imbalance detection, and service‑life monitoring for both rotor and main unit.
- High‑power heating system enabling rapid temperature rise, supported by SCT speed‑control technology for fast acceleration and deceleration.
- Uniform heating design providing fast, stable, and accurate temperature control.
- Stable, low‑noise operation achieved through a high‑torque brushless DC motor and precise microcomputer speed regulation.
- Silent electromechanical integrated door lock for enhanced operational safety and user comfort.
- Dual shock‑absorption system with automatic balancing, ensuring smooth operation and allowing visual balance verification.
- Upgraded ergonomic design with a clean, user‑friendly interface for improved handling and operational convenience.
- Advanced control algorithms enabling fast response, stable speed control, and efficient workflow during testing.
- Enhanced reliability through imported key components, high‑precision bearings, and reinforced structural elements.
- Improved operational efficiency with rapid heating, fast acceleration/deceleration, and intelligent control logic that reduces testing time.
Technical Specifications of TT- CSM4390 Crude Oil Moisture & Sediment Analyzer
| Model | TT‑CSM4390 |
| Maximum speed | 4000r/min (recommended speed of 3000r/min when using glass tubes) |
| Maximum relative centrifugal force | 4390 × g (maximum recommended centrifugal force when using glass tubes is 2362 × g) |
| Petroleum specific rotor | 4×100ml |
| Temperature range | Room temperature -80 ℃ |
| Timing range | 0-99min |
| Power Supply | AC 220V 50Hz 18A |
| Whole machine noise | ≤65dB |
| External dimensions | 700×560×350mm |
| Weight | 55kg |
| Relative error of deformation indication value | <±0.5% |
| Deformation resolution | Maximum deformation 1/600000～ 1000000 |
Standard Configuration of TT- CSM4390 Crude Oil Moisture & Sediment Analyzer
| Items | Qty | |
| Main unit | 1 set | |
| Centrifugal tube | 1 set | |
| Operational manual | 1 pc | |
| Warranty Card | 1 pc | |
