Application of TT-CG215 Series Coating Thickness Gauge (F and NF Type)

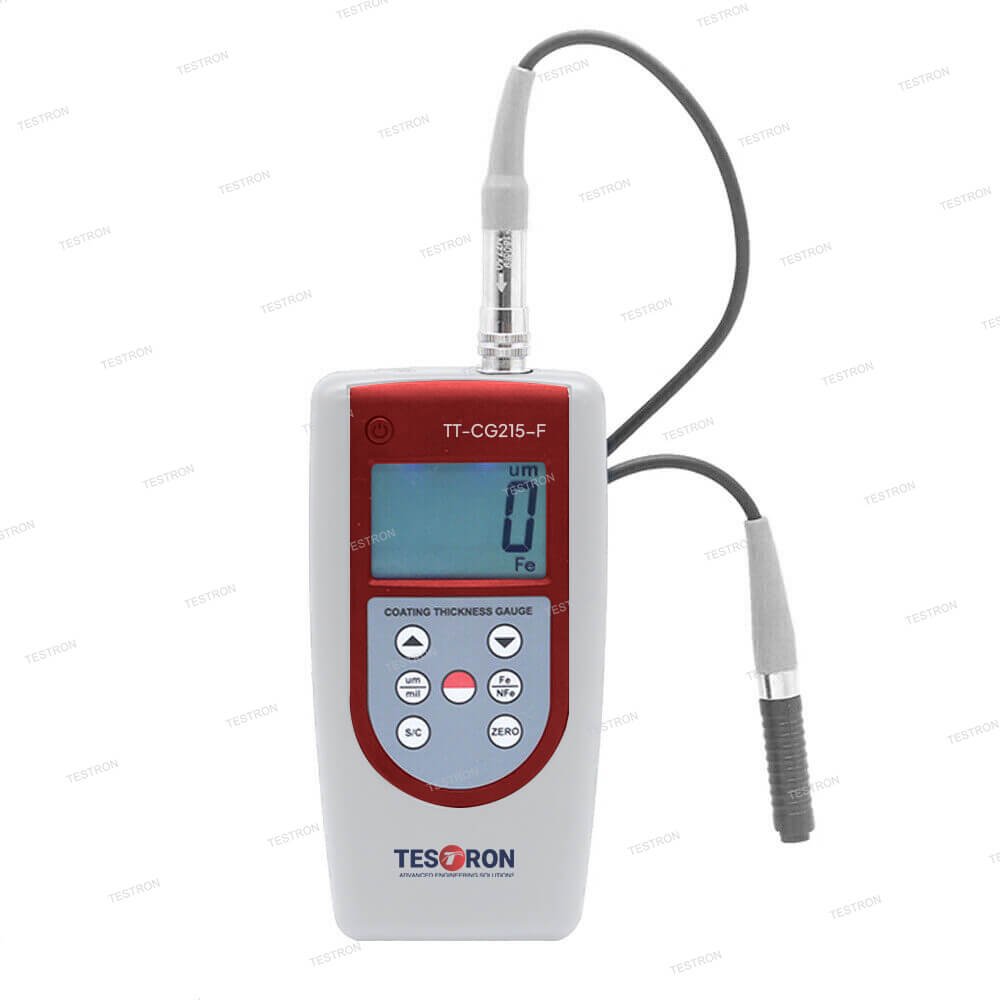

TESTRON TT-CG215 Coating Thickness Gauge is a portable testing instrument which can take fast, intact, precise measurements of coating thickness. It can be used in both engineering field and laboratories, as an essential instrument in material protection industry.
Model TT-CG215-F Type Coating Thickness Gauge is an F Type Magnetic Induction (Iron Base) which measures the thickness of non-magnetic materials on magnetic materials
Examples: Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc.
Model TT-CG215-NF Type Coating Thickness Gauge is an NF Type Eddy Current (Aluminium Base) which measures the thickness of non-conductive coatings on nonmagnetic metals.
Examples: Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc.
Features of TT-CG215 Series Coating Thickness Gauge (F and NF Type)
- Model TT-CG215-NF can store the new data in 99 groups.
- Metric/imperial system is selectable.
- It has manual or automatic power off.
- Auto memory of calibration value, auto substrate recognition.
- Uses RS-232 data output to connect with PC.
- Provide Bluetooth data output choice.
Technical Specifications of TT-CG215 Series Coating Thickness Gauge (F and NF Type)
| Model | TT-CG215-F Type | TT-CG215-NF Type |
| Principle | F Magnetic Induction | NF Type Eddy Current |
| Range | 0~2000μm / 0~80mil | |
| Resolution | 0.1μm / 1μm | |
| Accuracy | ±1~3%n or ±2.5μm | |
| Min. Radius Workpiece | F Type: convex 1.5 mm / concave 25 mm NF Type: convex 3 mm / concave 50 mm | |
| Min. Measuring Area | 6 mm | |
| Min. Sample Thickness | 0.3 mm | |
| Metric / Imperial | ✔ | |
| Functions | Battery Indicator & Automatic Power Off | |
| Data Memory | – | 99 Groups |
| Operating Conditions | Temperature: 0~40°C Humidity: 10~90%RH | |
| Power Supply | 4×1.5V AAA (UM-4) Battery | |
| Dimensions | 140x72x34mm | |
| Weight | 215g (Not Including Batteries) | |

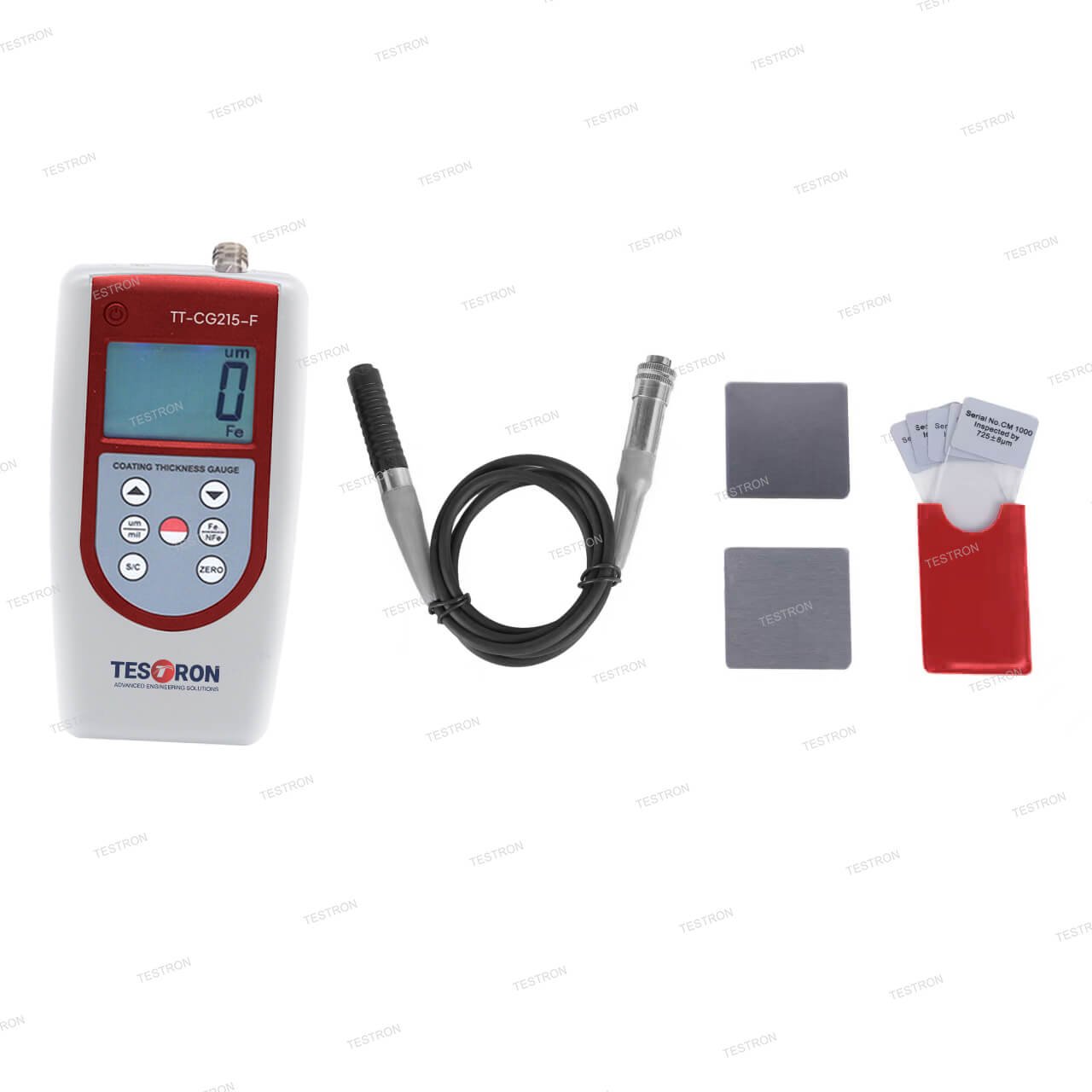

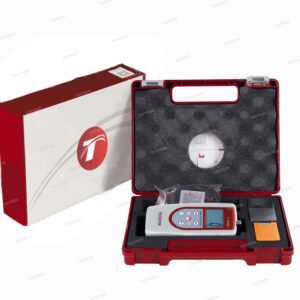

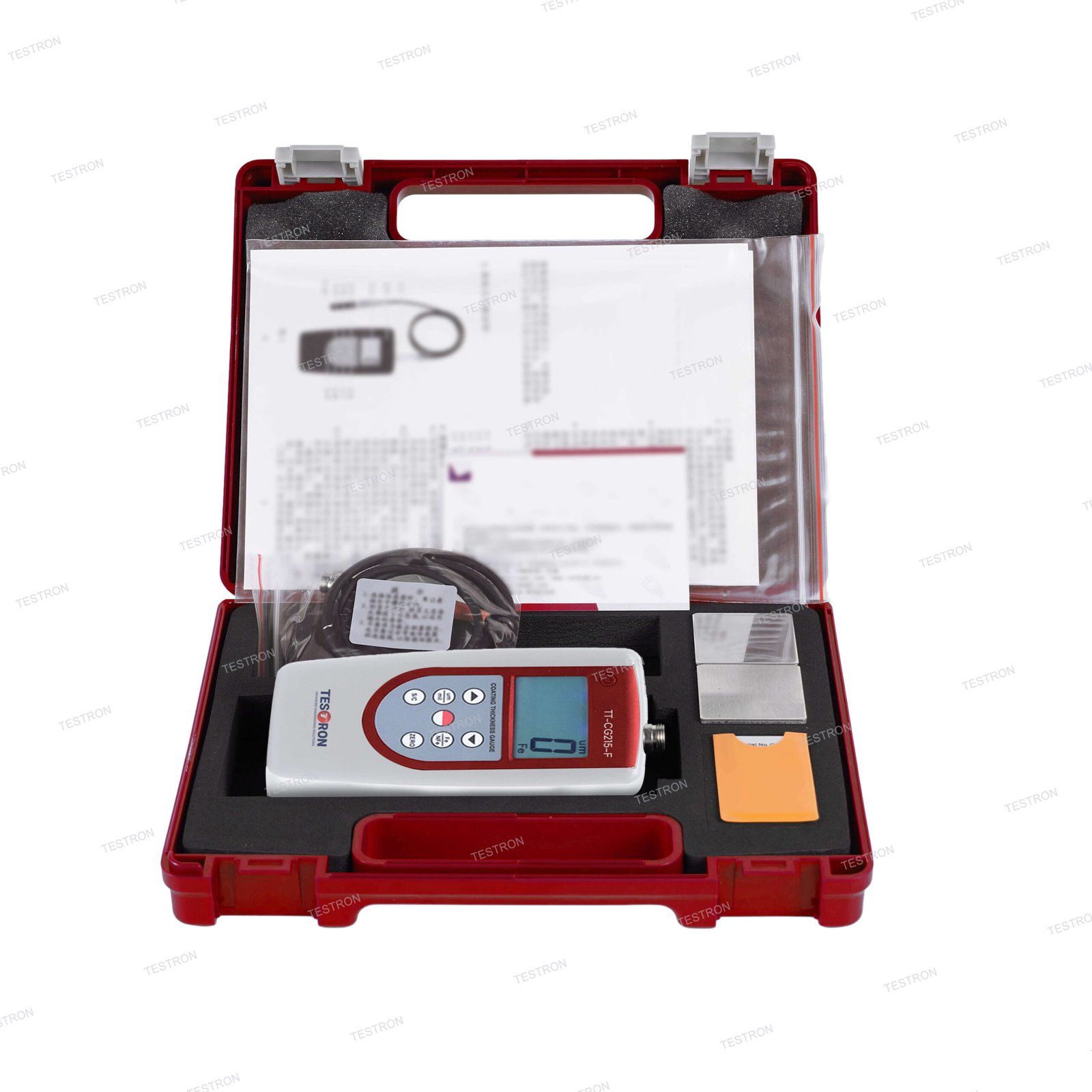

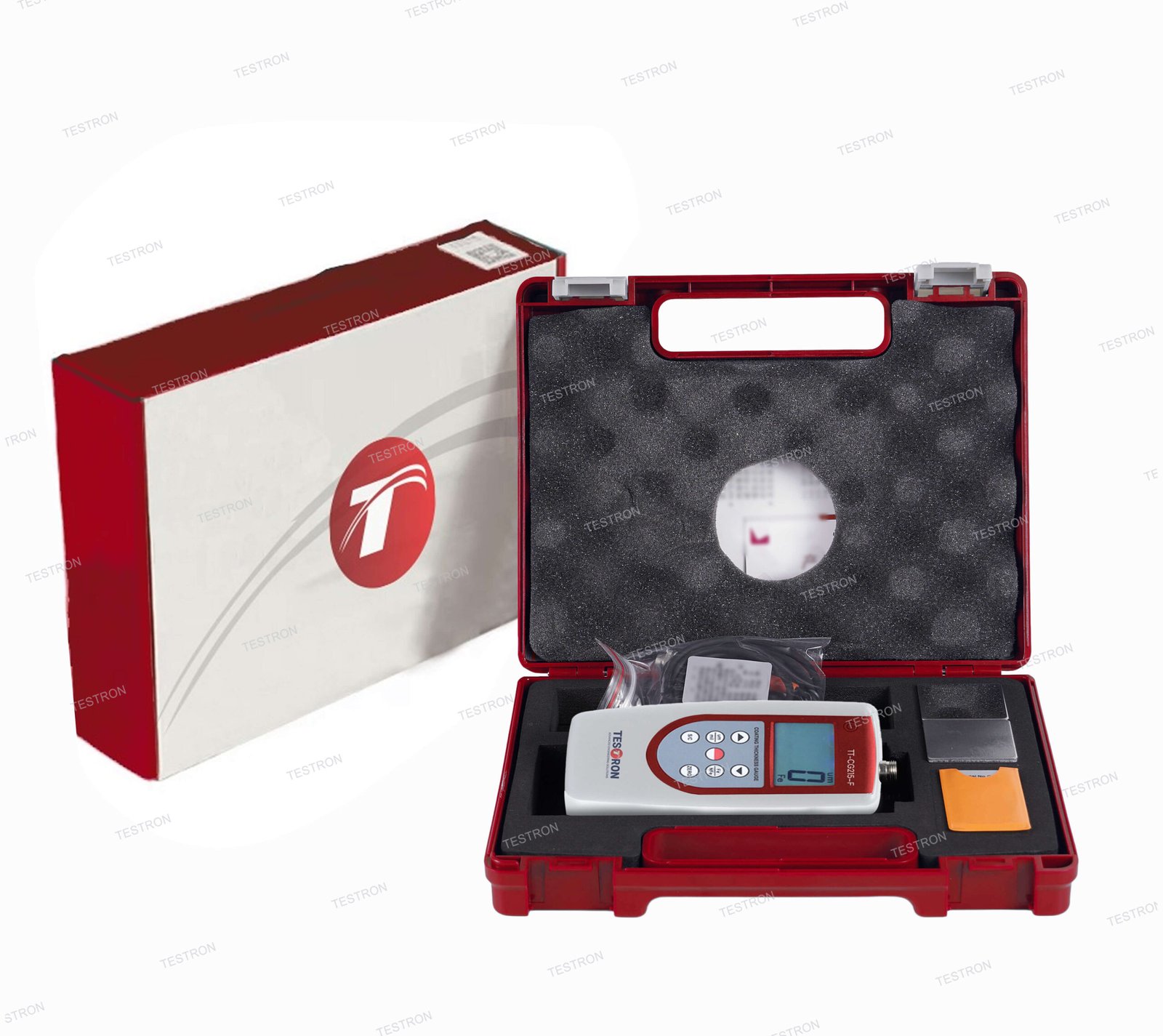

Standard Configuration of TT-CG215 Series Coating Thickness Gauge (F and NF Type)
| Item | TT-CG215-F Type | TT-CG215-NF Type |
| Main Unit | ✔ | ✔ |
| Probe (F&NF Type) | ✔ | ✔ |
| Calibration Base (F) | ✔ | ✔ |
| Calibration Base (NF) | ✔ | ✔ |
| Calibration Foils | 1 set, 5 pieces | |
| Carrying Case | B04 | |
| Optional Accessories | ✔ | ✔ |
| Operation manual | ✔ | ✔ |
| Quality certificate | ✔ | ✔ |
| Warranty card | ✔ | ✔ |
