Test Standard of TT-CFPP Automatic Cold Filter Plugging Point Tester
ASTM D6371

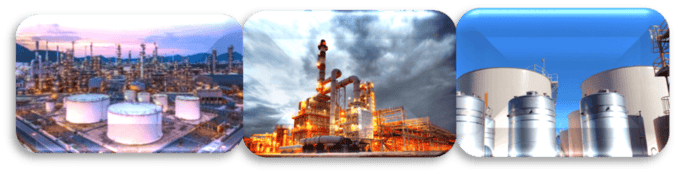

Application of TT-CFPP Automatic Cold Filter Plugging Point Tester
It is widely used in petroleum refineries, fuel quality testing laboratories, research institutions, and regulatory compliance facilities to ensure fuel performance in cold climates.
Features of TT-CFPP Automatic Cold Filter Plugging Point Tester
- Embedded computer, 10.4-inch large LCD display, all English operating system.
- Metal bath, equipped with imported compressor, double compressor compound refrigeration, fast cooling.
- Two-hole metal bath can control the bath temperature respectively, can detect two groups of data simultaneously.
- The instrument also has a quick detection method, according to the expected cold filter plugging point can be directly set the lowest cold bath temperature, so that the sample quickly cool down, shorten the test time.
- To avoid the influence of light on the detection, the instrument uses optical fiber sensor to ensure the accuracy of the experimental results.
- Automatic timing, judgment and preservation test results are available, and the results can be printed.
Technical Specification of TT-CFPP Automatic Cold Filter Plugging Point Tester
| Model | TT-CFPP Automatic Cold Filter Plugging Point Tester |
| Temperature control range | -70℃—48℃ |
| Metal bath temperature precision | ±0.5℃ |
| From 48℃ to -70℃ no more than 15 minutes | |
| Metal baths can fall by 17℃ in less than 150 seconds | |
| Power | 1800W |

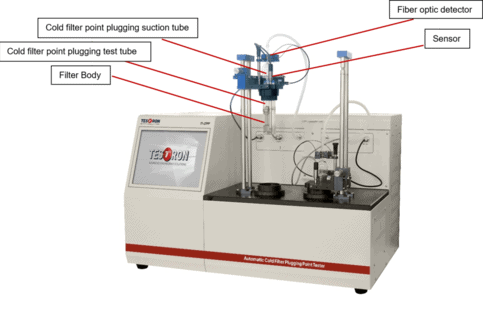

Main Accessories of TT-CFPP Automatic Cold Filter Plugging Point Tester
Standard Configuration of TT-CFPP Automatic Cold Filter Plugging Point Tester
| Code | Name | Qty |
| TT-01 | Sensor | 2 |
| TT-02 | Fiber optic detector | 2 |
| TT-03 | Cold filter plugging point suction tube | 2 |
| TT-04 | Cold filter plugging point test tube | 2 |
| TT-05 | Filter body (brass components) | 2 |
| TT-06 | Filter body (brass components) | 1 |
| TT-07 | Silicone tube Φ5×7 | 2 |
| TT-08 | Sample storage tube | 2 |
| TT-09 | Fuse wire Φ6×30 15A | 1 |
| TT-10 | Mainboard battery | 1 |
| TT-11 | Mouse, keyboard | 1 each |
| TT-12 | Inner hexagon wrench | 1 |
