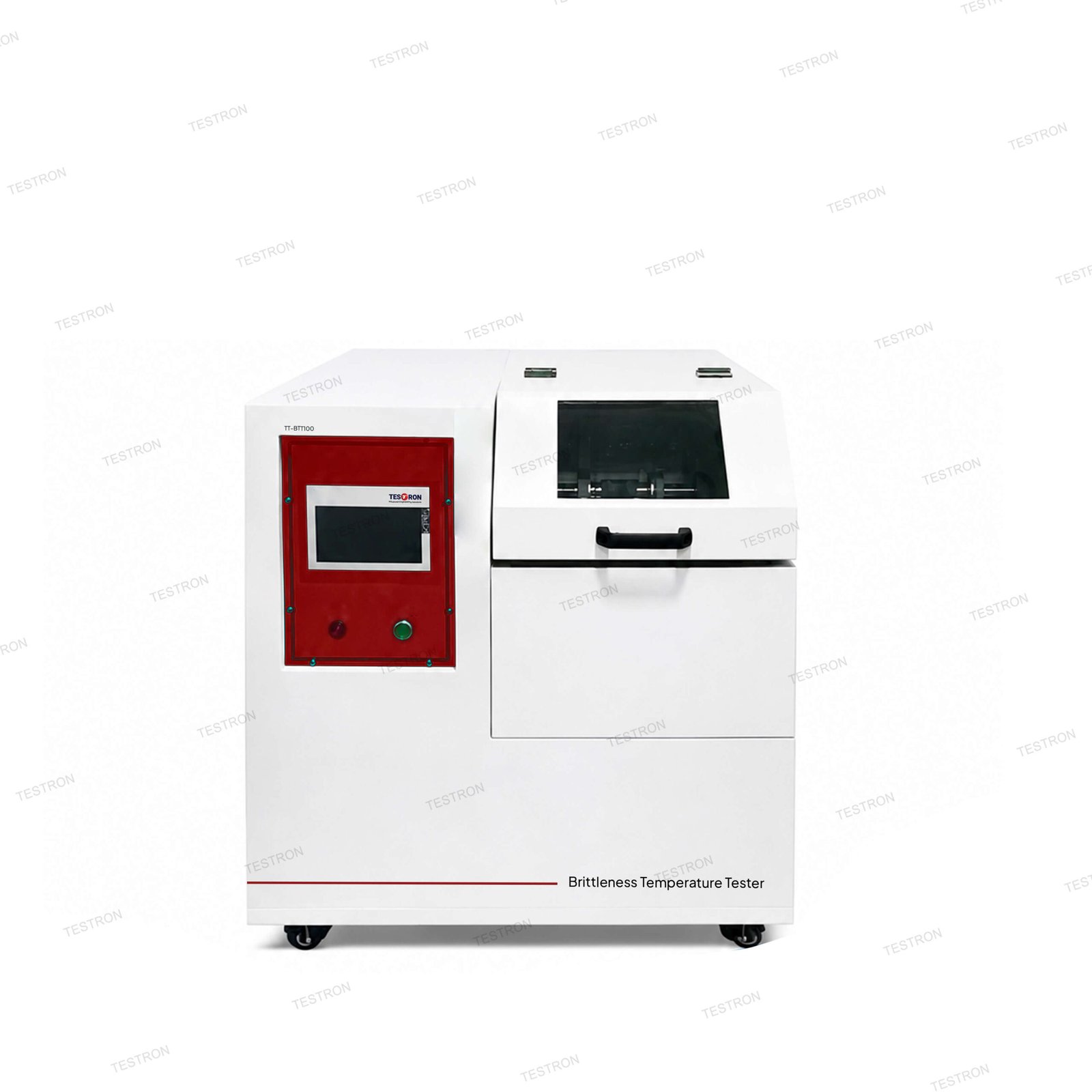

TT-BTT100 Brittleness Temperature Tester

TESTRON TT-BTT100 is used to determine the brittleness characteristics of wire jackets and vulcanized rubber during low-temperature testing. After the sample is fixed onto the test device and soaked in a low-temperature medium for 5 minutes, it is impacted by the impact head at a linear speed of 2 ± 0.2 m/s. The sample is then checked for cracks, crevices, small holes, and fragments at the lowest temperature.

Inquiry Now

Categories: Material Testing, Plastic and Rubber Testing

Description

Working Principle of TT-BTT100 Brittleness Temperature Tester

The tester adopts a two-stage compressor to rapidly reduce the temperature, reaching a minimum temperature of -70°C. Liquid nitrogen can be added to the heat exchanger for testing below -70°C, with the lowest temperature reaching -120°C. The temperature is highly controllable.

The liquid heat transfer medium in the low-temperature tank can be stirred by the stirring motor to achieve a more uniform temperature. Four samples can be tested simultaneously. Automatic rotary locating fixtures impact each group of samples and determine the lowest temperature at which brittle failure occurs.

Test Standards of TT-BTT100 Brittleness Temperature Tester

ASTM-D746 :2004-A, ASTM-D746 :2004-B, ASTM D2137-05
GB/T15256-94, GB/T5470-2008(B Type)
ISO 812-91, ISO 974:2000
JIS C3005-2000, JIS K 6723-1995, JIS K7216-1980 A Type, JIS K7216-1980(B Type)
BS 903 A25:1992

Application of TT-BTT100 Brittleness Temperature Tester

It is widely used in factories, quality control laboratories, and R&D departments for testing and evaluating wire jackets and vulcanized rubber materials.

Features of TT-BTT100 Brittleness Temperature Tester

CNC-Machined Housing: Features a CNC-machined housing with an aesthetically pleasing design and a non-reactive handle for easy operation.
High-Quality Stainless Steel Inner Chamber: The inner chamber is constructed from imported high-quality mirror-finished stainless steel, while the outer shell utilizes powder-coated A3 steel plate, balancing visual appeal with cleanliness.
Large Observation Window: Equipped with a large observation window featuring integrated lighting to ensure interior brightness. Heating elements are embedded within tempered glass, enabling clear monitoring of the chamber’s internal status at any time.

Technical Specifications of TT-BTT100 Brittleness Temperature Tester

Model	TT-BTT100
Temperature Range	Room temp ~ -70.0℃ (-70 ~-120 liquid nitrogen)
Temperature Resolution	±0.1℃
Input Signal	Pt100
Temperature Control	Temperature controlled, SSR and electric heater
Temperature Control	Compressor or liquid nitrogen
Striking Linear Speed	2 .0 ± 0.2 m/s
Size of Specimen	Type: 25~40mm (L) × 6±1mm (W) × 2.0±0.2mm (T) Type: 31.35±0.1mm (L) × 2.5±0.1mm (W) [6.35±0.1mm (head width), 6.35±0.1mm long] × 2.0±0.2mm (T)
Pilot Chute Size (W x D x H)	18×57×15 cm
Dimension (W x D x H)	73×85×145 cm
Weight (approx.)	330kg
Power	3∮, AC380V, 50/60Hz, 10A (Specified by user)
