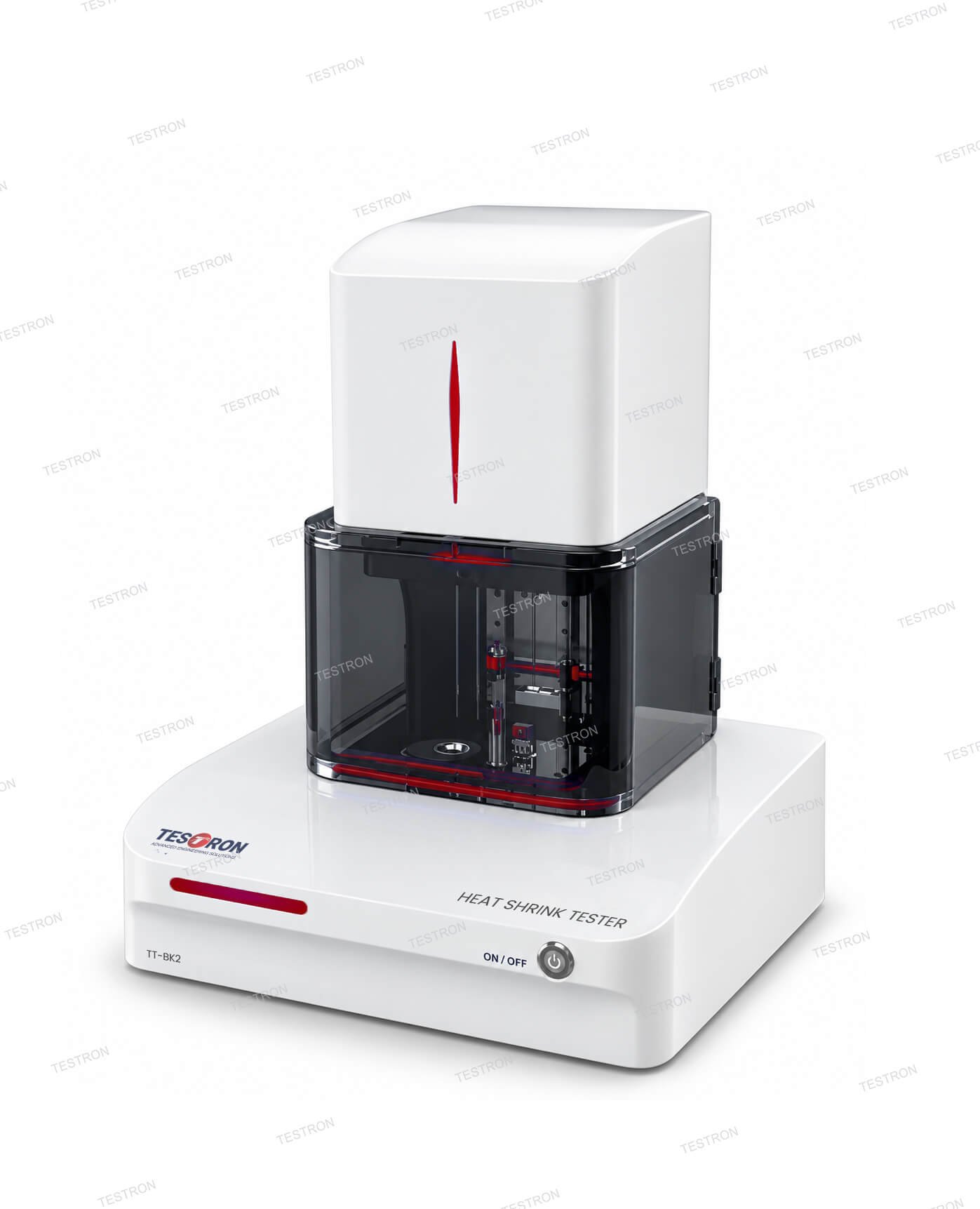

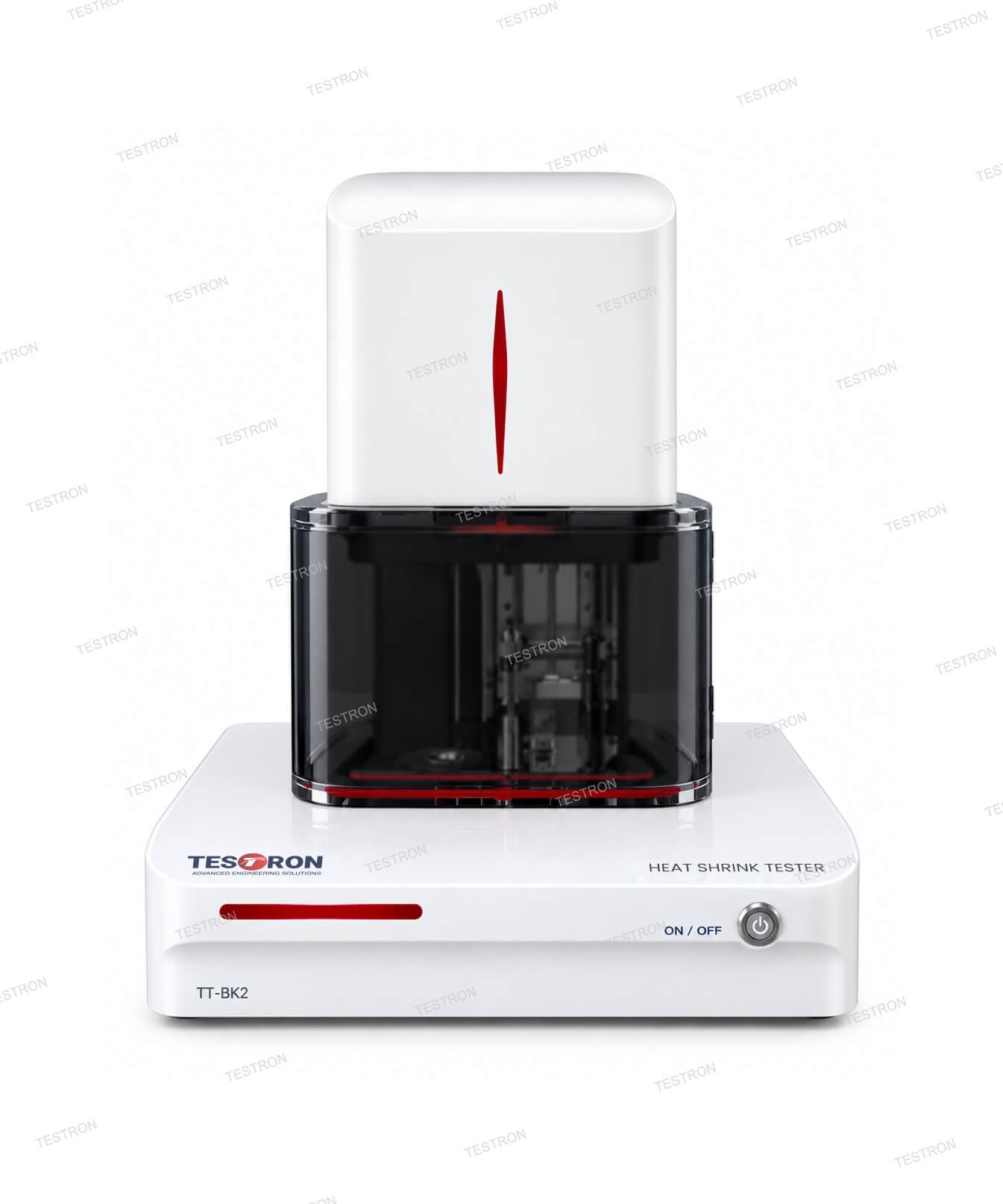

TT-BK2 Heat Shrink Tester

TESTRON TT-BK2 Heat Shrink Tester tests various heat shrinkage properties for the film according to the principle of air heating (air bath). It is a device that can accurately and quantitatively measure the thermal shrinkage force, cold shrinkage force, shrinkage rate, shrinkage time and other properties of plastic films during thermal shrinkage.

The test results have a variety of data, which can evaluate the heat shrinkage performance of the film from different aspects, contribute to the research and development of heat shrinkable films of different materials, ensure the stability of heat shrinkable films performance of various materials, and meet the requirements of various heat shrinkable films in various industries.

Inquiry Now

Categories: Material Testing, Packaging Testing

Description

TESTRON TT-BK2 Film Heat Shrinkage Tester evaluates the key thermal shrinkage properties of film products. Traditional oven or oil-bath methods mainly determine the heat shrinkage rate of heat-shrinkable films, providing relatively limited test data.

The TT-BK2 provides a more comprehensive evaluation of film thermal shrinkage performance with accurate test results and easy operation. It is designed to provide reliable and comprehensive test data to meet various film testing requirements.

Applications of TT-BK2 Heat Shrink Tester

Suitable for heat shrinkable films which produced with polyethylene, ethylene copolymers and their mixtures, such as beverage labels, bottled bundle packaging, sausage shrinkage packaging, outer film of daily chemical products, outer film of cigarette boxes, etc

Test Standards of TT-BK2 Heat Shrink Tester

GB/T 34848-2017、ISO 14616-1997、DIN 53369-1976

Test principle of TT-BK2 Heat Shrink Tester

This tester uses the principle of air heating to connect the tested sample to the tension sensor and displacement sensor. After reaching the maximum shrinkage force, it is placed in an external test environment with an ambient temperature of 23°C ± 2°C to cool down, the instrument continuously records the reference temperature, shrinkage force, and displacement, the recorded data can be used to determine optimal shrinkage conditions for the film.

Features of TT-BK2 Heat Shrink Tester

Laser measurement technology, non-contact precise measurement.
High-precision force sensor and displacement sensor can accurately determine the thermal shrinkage performance parameters of the sample.
Automatic temperature control, intelligent digital PID algorithm.
The system displays the heat shrinkage force, cold shrinkage force and heat shrinkage rate in real time during the test.
With built-in system, more safety.
User hierarchical permission setting, meeting GMP requirements, test record auditing, and tracking functions.
Support DSM laboratory data management system, which can be maintained and upgraded remotely.
Internal structure of the instrument is shown in Figure 1
Force and Shrinkage Measurement Chart is shown in Figure 2

Technical Specifications TT-BK2 Heat Shrink Tester

Model	TT-BK2
Sensor Specifications	5 N（standard） 10 N、30 N（optional）
Contraction force accuracy	Display value ±0.5%（10%-100% of sensor specification ）±0.05%FS（0%-10% of sensor specification）
Display resolution	0.001 N
Displacement measurement range	0.1～70 mm
Displacement sensor accuracy	±0.07 mm
Shrinkage measurement range	0.1%~95%
Working temperature	room temperature～250℃
Temperature fluctuation	±0.2℃
Temperature accuracy	±0.5℃（Single point calibration）
Number of workstations	1 Set（two stations）
Sample size	110 mm×15 mm(Standard size)
Dimensions	480 mm(L)×400 mm(W)×630 mm(H)
Power supply	220VAC±10%50Hz/120VAC±10%60Hz
Net weight	26 kg
Power	800W
