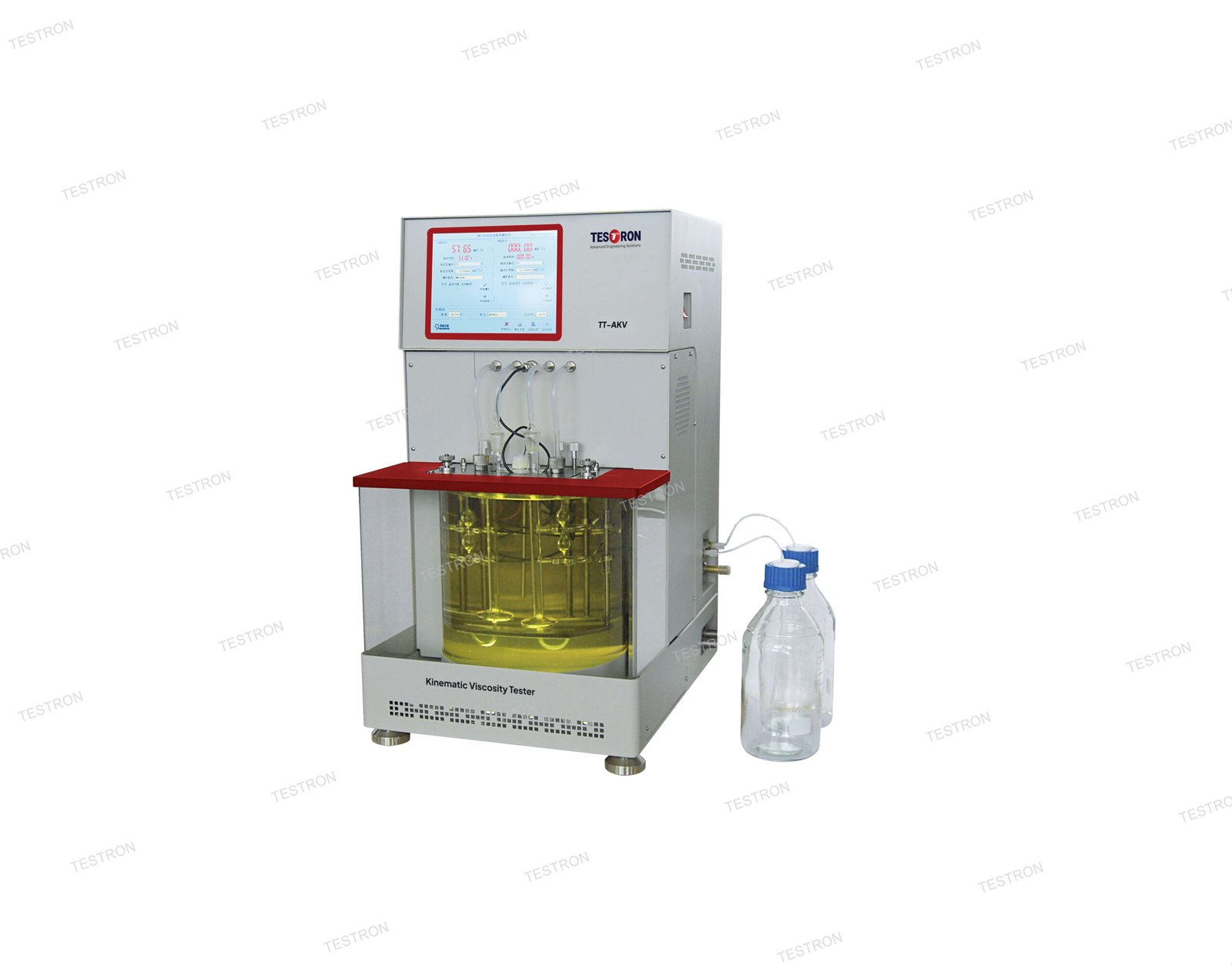

Test Standard of TT-AKV Kinematic Viscosity Tester
ASTM D445
Application of TT-AKV Kinematic Viscosity Tester
It is widely used in aviation fuel quality control laboratories, refineries, airport fuel storage facilities, and aerospace regulatory agencies. It ensures that aviation turbine fuels meet critical low-temperature performance requirements for safe operation at high altitudes. The tester supports routine inspection, certification, and research, helping to maintain fuel reliability and safety in commercial and military aviation.

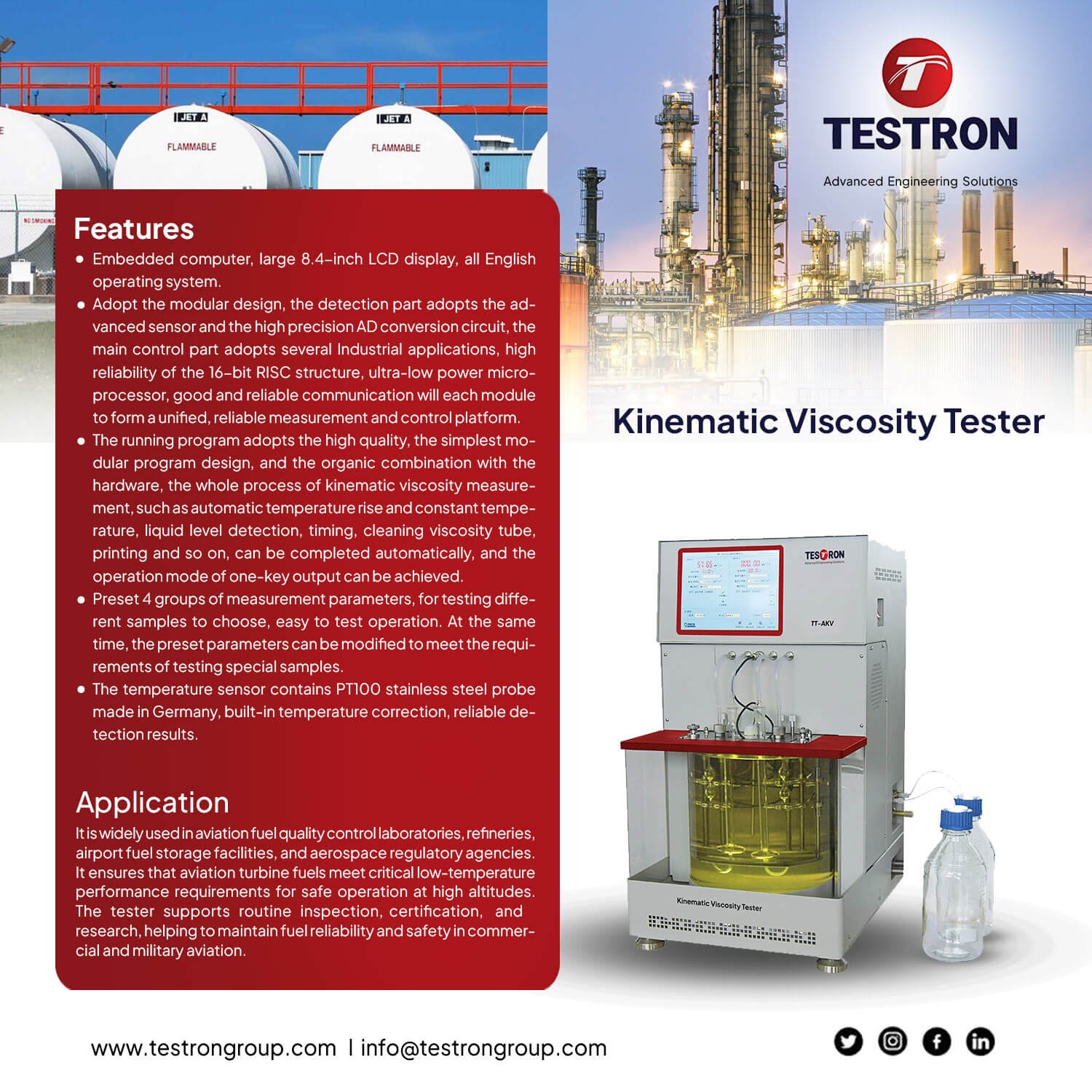

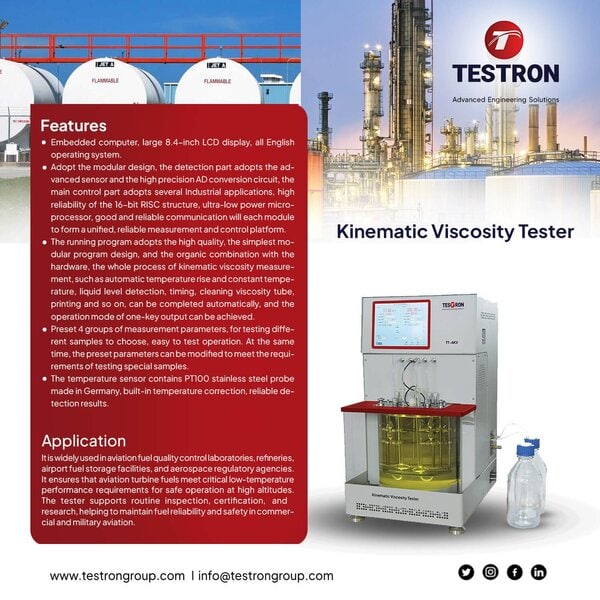

Features of TT-AKV Kinematic Viscosity Tester
- Embedded computer, large 8.4-inch LCD display, all English operating system.
- Adopt the modular design, the detection part adopts the advanced sensor and the high precision AD conversion circuit, the main control part adopts several Industrial applications, high reliability of the 16-bit RISC structure, ultra-low power microprocessor, good and reliable communication will each module to form a unified, reliable measurement and control platform.
- The running program adopts the high quality, the simplest modular program design, and the organic combination with the hardware, the whole process of kinematic viscosity measurement, such as automatic temperature rise and constant temperature, liquid level detection, timing, cleaning viscosity tube, printing and so on, can be completed automatically, and the operation mode of one-key output can be achieved.
- Preset 4 groups of measurement parameters, for testing different samples to choose, easy to test operation. At the same time, the preset parameters can be modified to meet the requirements of testing special samples.
- The temperature sensor contains PT100 stainless steel probe made in Germany, built-in temperature correction, reliable detection results.
Technical Specification of TT-AKV Kinematic Viscosity Tester
Model | TT-AKV Kinematic Viscosity Tester | |||
Temperature range | Room Temperature | 120℃ | Accuracy | ±0.01℃ |
Heating Power | 1300W | |||
Liquid level detection | Infrared photoelectric detection | |||
Sample storage temperature | 0—50℃ | |||
External dimensions | 60 X 450 X 665 mm | |||
Weight | 25.8Kgs |
Standard Configuration of TT-AKV Kinematic Viscosity Tester
Items | Qty |
Vacuum pump | 1 pc |
Glass capillary viscometer(Φ0.8、Φ1.0、Φ1.2、Φ1.5、Φ2.0)Viscometer plug | 1 pc |
Capillary viscometer clamp | 2 pcs |
Reagent bottle 1000ml | 2 pcs |
Inverted taper joint | 2 pcs |
PTFE solvent tube Ф3/ L=500mm | 2 pcs |
Silicone tube 5×7/L=200mm | 4 pcs |
Temperature sensor | 1 pc |
Sample moving device | 1pc |
Sample moving device connector | 40 pcs |
Gradienter | 1 pc |
Motherboard battery | 1 pc |
Fuse wire | 1 pc |
Mouse, Keyboard | 1 pc |
